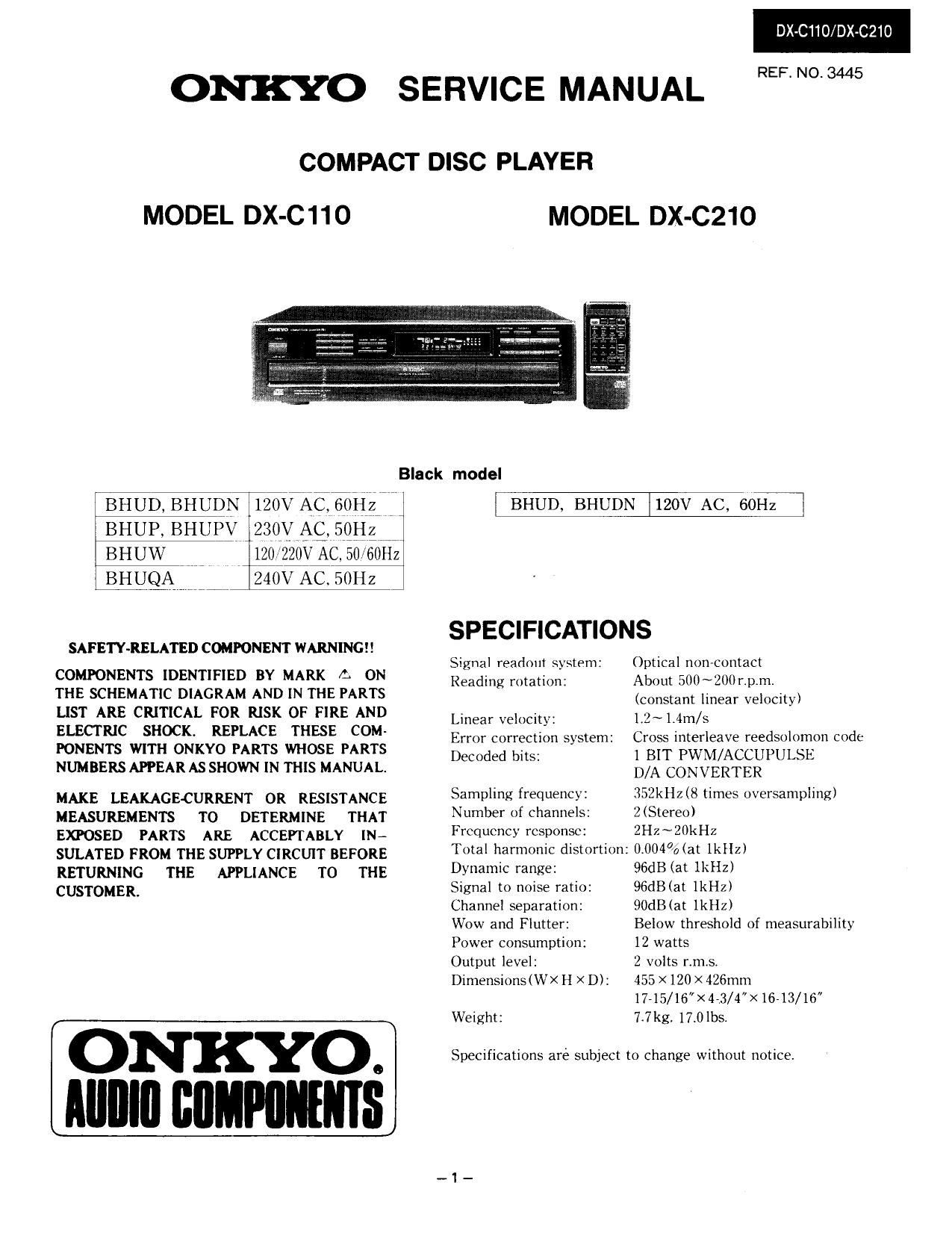

ONKYO SERVICE MANUAL

COMPACT DISC PLAYER

MODEL DX-C 11 O

DX-CllO/DX-CZIO

REF. NO. 3445

MODEL DX-C210

BHUP, BHUij ,230Y/§C_x5,QH§

BHUW 120,7220v Ac, 50x60Hz

BHUD,BHU21§T 120v Ac, 60H}:

713595;;ng ' 240v AC. 50Hz

SAFETY-RELATED COMPONENT WARN INCH

COMPONENTS IDENTIFIED BY MARK A. ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM-
PONENTS WITH ONKYO PARTS WHOSE PARTS
NUMBERS APPEAR AS SHOWN IN THIS MANUAL.

MAKE LEAKAGECURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY IN-
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.

ON KYO.
IIIIIIII IIIIIIPflIIIIIIS

Black model

l BHUD, BHUDN

120v AC, 60Hz l

SPECIFICATIONS

Signal readout system:
Reading rotation:

Linear velocity:
Error correction system:
Decoded bits:

Sampling frequency:
Number of channels:
Frequency response:

Total harmonic distortion:

Dynamic range:

Signal to noise ratio:
Channel separation:
Wow and Flutter:
Power consumption:
Output level:
Dimensions(W>< H X D):

Weight:

Optical non-contact

About 500~20l)r.p.m.

(constant linear velocity)

1.2~ 1.4m/s

Cross interleave reedsolomon code
1 BIT PWM/ACCUPULSE

D/A CONVERTER

352kHz(8 times oversampling)

2 (Stereo)

2Hz~20kllz

0.004%(at lkHz)

96dB (at IkHZ)

96dBtat lkHz)

90dB(at 1kHz)

Below threshold of measurability
12 watts

2 volts r.m.s.

455 X 120 X 426mm
17-15/16"><4-3/4"><1613/16"
7.7kg. 17.01bs.

Specifications are subject to change without notice.

Page 2

DX-C110/DX-C210

TABLE OF CONTENTS

Specifications ................................ 1
Service prceedures ............................ 2
Caution on replace-ant of optical pickup ...... 2
Protection of eyes frol laser beal ............ 3
Laser Iarning labels ......................... 3
1C block diagrals and descriptions ............ 4
Packing viel .................................. 9
lechaniSI-exploded view ...................... 10

Changer Iechanisl .......................... 10

Pickeup drive unit ......................... 12
Chassisvexploded View ........................ 13
Parts list ................................... 15
Block diagrau ................................ l7
Adjust-cut procedures ........................ 19

Printed circuit board vie! fro. button side..21
Printed circuit board~parts list ............. 23
Disasselbling procedures ..................... 25

SERVICE PROCEDURES

1. S afety-check out
After correcting the original service problem,perl'orm
the following safety check before releasing the set
to the customer:
Connect the insulating-resistance tester between the
plug of power supply cord and chassis.
SpecificationsMore than lOMohm at 500V.

2. Voltage Selector (Back panel)
Worldwide models are equipped with a voltage selector
to conform with local power supplies.Be sure to set
this switch to match the voltage of the power supply
in user's area before turning the power switch on.
Voltage is changed by sliding the groove in the switch
with a screw driver to the right or left.
Confirm that the switch has been moved all the way to
the right or left before turning the power switch on.

[113 DD
< L» <- L»
220V ~ 120V ~ 220V " 120V r
at ACl20V at AC220V

CAUTION ON REPLACEMENT OF OPTICAL PICKUP

The laser diode in the optical pickup block is so During repair.carefulley take the following precautions.
sensitive to static electricitysurge current and etc, (The following precautions are included in the service

that the components are liable to be broken down parts.)

or its reliability remarkably deteriorated.

PR E C A U TIO N S
1.Ground for the work-desk. 3.Grounding for the human body.
Place a conductive sheet such as a sheet of copper Be sure to put on a wrist-strap for grounding whose
(with inpedance lower than 10MB) on the work- other end is grounded.
desk and place the set on the conductive sheet so Be particularly careful when the workers wear
that the chassis. synthetic fiber clothes, or air is dry.
2.Grounding for the test equipment and tools. 4.Select a soldering iron that permits no leakage and
Test equipments and toolings should be grounded have the tip of the iron well-grounded.
in order mat their ground level is the same the 5.Do not check the laser diode terminals with the
ground of the power source. probe of a circuit tester or oscilloscope.
