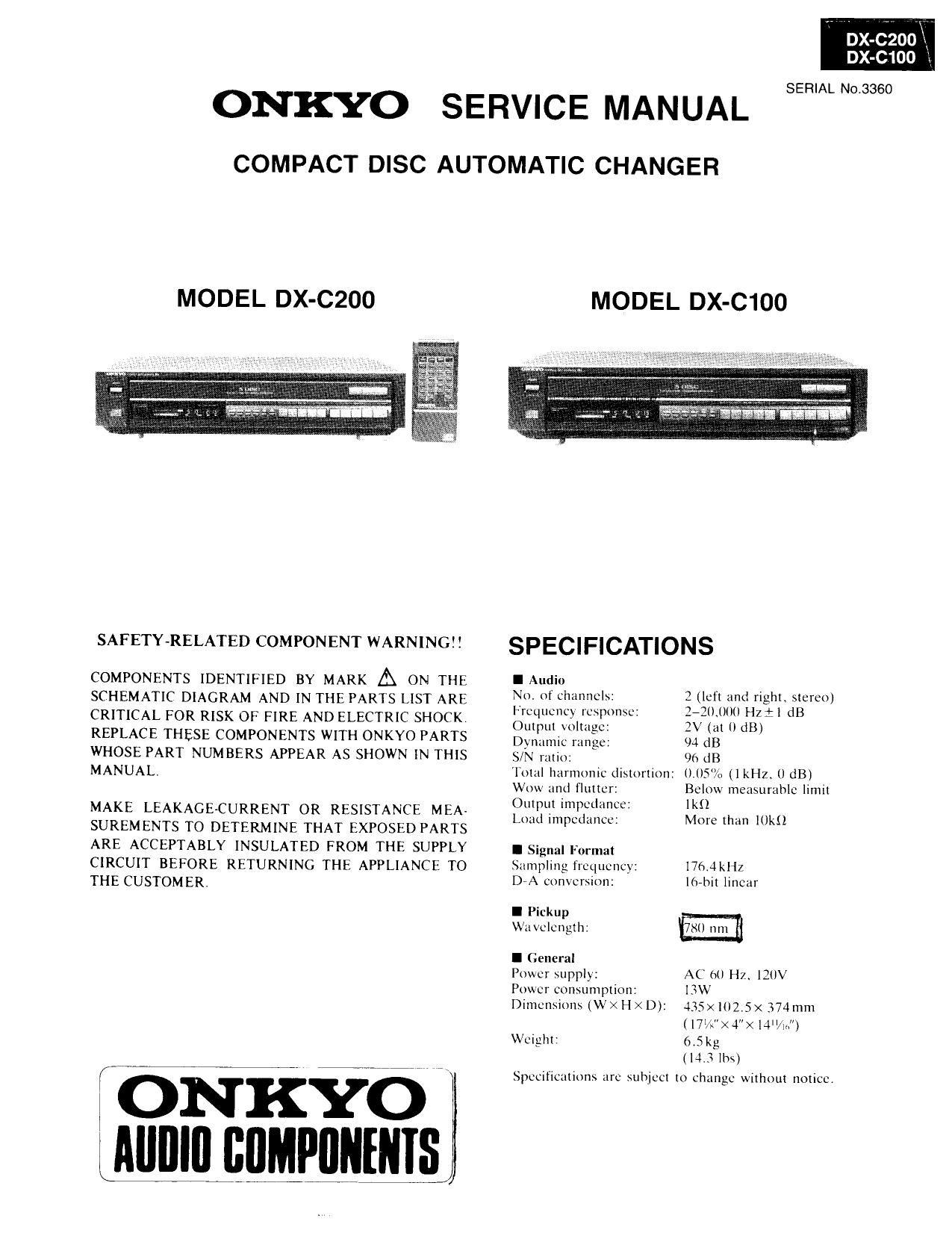

Dx-czoo \
DX-C100 \,

SERIAL No,3360

ONKYO SERVICE MANUAL
COMPACT DISC AUTOMATIC CHANGER

MODEL DX-C200

MODEL DX-C100

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.

MAKE LEAKAGECURRENT OR RESISTANCE MEA-
SUREMENTS TO DETERMINE THAT EXPOSED PARTS
ARE ACCEPTABLY INSULATED FROM THE SUPPLY
CIRCUIT BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.

I ONKYO
l Alllllll EUMPIININIS

SPECIFICATIONS

I Audio
No. of Channels:
Frequency response:

2 (left and right, stereo)
2-20000 Hztl dB

Output voltage: 2V (at 0 dB)
[)ynumic range: 94 dB
S/N ratio: 96 dB

Total harmonic distortion: 005% (1 kHz. 0 dB)
Wow and flutter: Below measurable limit
Output impedance: 1k!)

Load impedance: More than 10k!)

I Signal Format
Sampling frequency:
DVA conversion;

176,4kHz
16-bit linear

I Pickup

Wavelength: 1780 nm H

I General

Power supply: AC 60 Hz. 120V
Poncr consumption: l3W

Dimensions (W X H X 1)): 435x l()2,5>< 374 mm
(171,4x4x14/t»)
Weight: 65 kg
(14.3 lbs)
Specifications are subject to change without noticcv

Page 2

BEFORE USE

To release the transport lock

The optical pickup is secured to prevent damage during transport
Be sure to release it belore use.

1
.-»

Lock shaft
(in the locked
condition)

With the top panel
lacing downward.

Pull to unlock.

Remove the clamper.
(D Turn
counter- a (3 PUIIOUt.
clockmse.

3

oSave the screws and spacers in the bag
(included).

Remove the three
spacers with screws.

Soft cloth or Slmllal material
(to prevent scratches)

OAttach the bag to the rear panel ol the
SCIGWS unit by inserting the Iaslener (Included)
(3) A. into the hole on the rear panel.

fiancee
(3)

I
L®

Before transporting the unit

Placement notes

Be sure to lock the optical pickup according to the procedures
below:

® Turn the power on and remove all discs trom the trays,

@i Close the loading drawer and turn the power off.

® Place the unit with the top panel lacing downward.

@ Insert the three spacers into
the slots and secure them With
the three screws.

(5,7 Insert the clamper into the slot
and turn it clockwtse.

© Place the unit With the right
panel tacing downward, and
press the lock shaft to the Lock
position (I A -).

CAUTION:

IDo not transport the untt Without locking the optical pickup
SEVERE DAMAGE WILL RESULT.

OBelore tilting or transporting the unit, be sure to remove all
discs lrom the trays.
Otherwse, discs may possthly be lallen into the unit and
can not be taken out.

I Place on a flat, level surface so that the lront-rear
Incllnatlon does not exceed 5".
I Avcld places such as the tollowlng:
INear any equipment or device that generates strong magnetism.
IOn arty heat-generating equipment or device. or in any place
where the temperature is high (40°C <104°F> or higher),
cExtremely cold places (5°C <41°F> or below).
ONear a tuner or TV (It may cause horse in the broadcast. or
disturbance ot the TV picture.)
0For long periods of time in direct sunlight,
Oln dusty or smoky locations.
Iln locations prone to Vibrations.
Oln locations where the rear panel is less than 10 cm (about 4")
away from the wall or back ol an audio rack.
OWithin reach ol children
I Do not place heavy objects,
components, on top at the unlt.
I When carrylng or storing the unlt. handle it with care so It Is
not subjected to any strong bumpst
Always remove the disc before storing the unit for any period of
time.
I To avoid problems due to vlbratlon.
000 not place a book or Similar object under this unit
000 not route the connection cables (of this or other units) across
the operation panel. across the top, or under the unit.
I Do not push down on the loading drawer while It Is opened.
This may cause the unit to fall.

other than system
