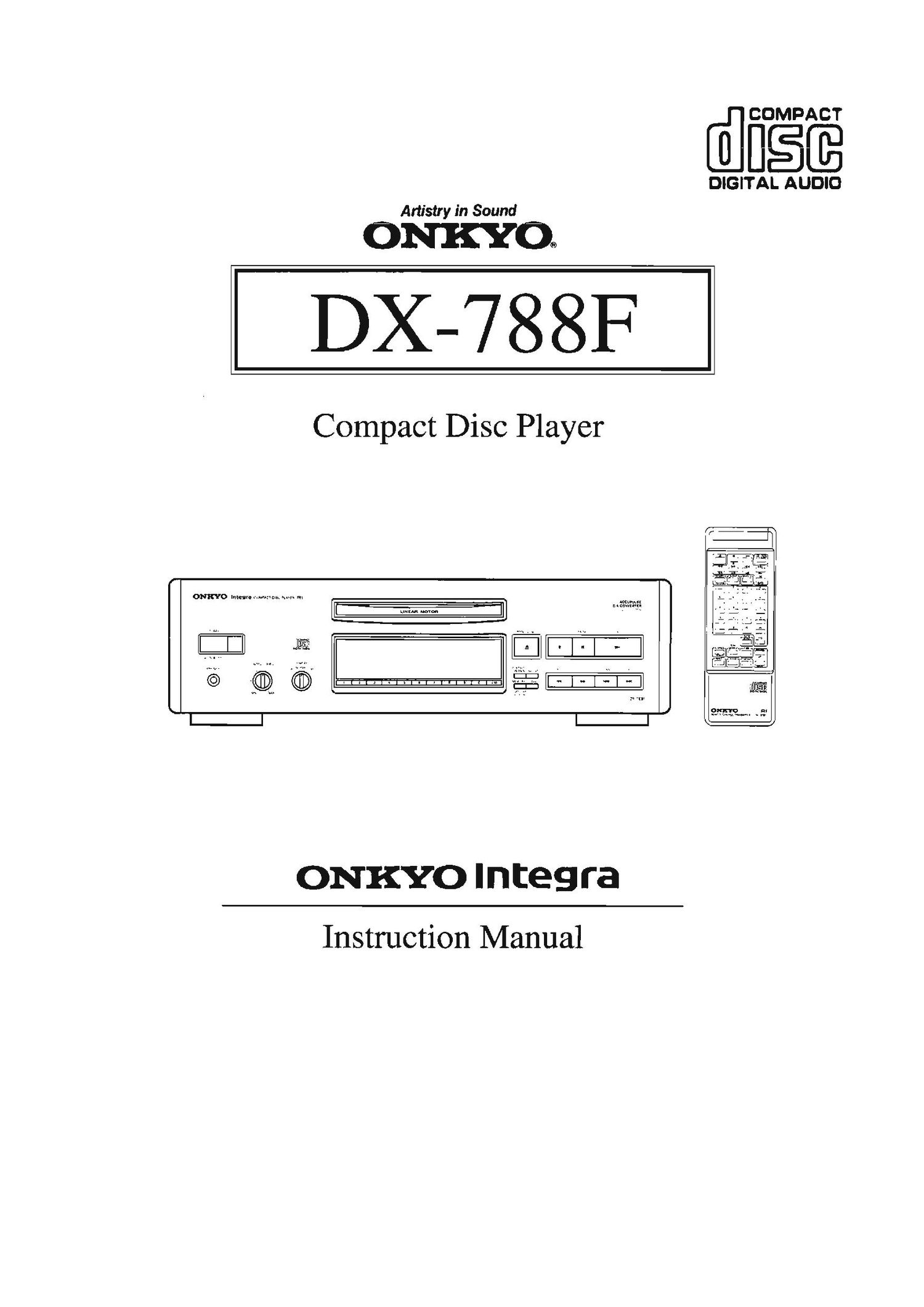

Onkyo DX 788F Owners Manual

Page 1

flfiéffi

DIGITAL AUDIO

Artistry in Sound

ONKYO

| DX- 788F |

Compact Disc Player

ONKYO Integra

Instruction Manual

Page 2

0 Congratulations on your purchase of the ONKYO DX-788F CD player.

0 Please read this manual thoroughly before making connections and turning power on.

0 Follow these instructions to obtain optimum performance and maximum iistening enjoyment
from your new DX-788F. 0 Please retain this manual for future reference.

Contents
Features ........................................................... 2 Playing CDs .............................................. 12-13
Important safeguards Normal play .......... ._...........12
Precautions ...................................................... 5 Basic Operation ------------------- 13
Before using this unit ..................................... 6-7 Playing QDS -------------------------------------------- '15
Supplied accessories IIIIIIIIIIIIIIIIIIIII 6 Convenient features ................................................... 14
Releasing the transport lock ................. 6 USMQImemoW play --------------------------- 15'
Inserting the remote control batteries ................. 7 Storing a program into memory and play ------------ 15
Handling compact discs ....................... ....7 Convenient recording features .......... 18-19
System connections ................................... 8-9 Peak Search Function ................................................ 13
Connecting the CD player to your amplifier. ....... e Fade Out/Auto Space Function .................................. 18
Connecting the remote control cable ..................... 9 Time Edit FUDCfiC --------------------- ----19
Connecting and using a timer ............................. 9 Troubleshooting gurde ........ 20
Identifying buttons and indicators .............. 10-1 1 Specifications ................................................. 20
Looking at the front panel and display window ........... 10
Looking at the remote control ..................................... 11
Features
I FPCS (Fine Pulse Conversion System)

In an etfortto improve the quality of digital music, ONKYO investigated the reasons behind CD's lack of warmth or "m usicality
and found that conventional interpolation methods emphasize frequency response. Thus ONKYO developed an entirely new
method of interpolation (FPCS), based on techniques borrowed from the latest advances in computer graphic technology. The
result is smoother interpolation and warmer, more musical" sounding music.

ONKYOs AccuPuIse Quartz System

Because of their high speed, pulse converters require perfect synchronization to do their job properly. ONKYOs proprietary
AccuPulse Quartz System maintainsthis synchronization with uncommon accuracy. thereby eliminating distortion-causing jitter,
and giving ONKYO an audible advantage over other pulse converters.

Complementary Dlstortlon Canceler
Two PDM (pulse density modulation) outputs are obtained, one with the phase reversed, and applied to a differential amplifier.
This eliminates all PDM distortion and provides a pristine analog output signal.

Totally Balanced Output Topology

Rather than the simpler unbalanced circuit designs widely used in many components, the DX-TBBF boasts totally balanced,
double-amp construction from the BIA converter output stages. This shuts out common-mode noise, and allows more room for
the music signal.

Advanced Dual AEI Transformers

ONKYO's AEI (anti-electromagnetic interference) transformers special core configuration and silicon-steel shielding reducq
distortion-causing magnetic flux leakage from 1/1 0 to 1/20 the levels associated with conventional El transformers, and help to
maximize optimum performance from the balanced output circuitry.

Elght-Tlmes Oversampling

Center Mounted Die-Cast Aluminum Disc Tray & Linear Slide Motor Mechanism
Peak Search

Memory Reverse

5-Mode Repeat

Shuffle Play

Front Panel Dimmer Switch

4-Mode Tlme Display

Copper Plated Chassis

Optical Digital Output (with ONlOFF switch)
RI Compatible Remote Control Supplied

ONKYO Integr a

Page 4

0 This Compact Disc Player contains a semiconductor laser
system and is classified as a CLASS 1 LASER PROD-
UCT. So, to use this model properly, read this Owner's
Manual carefully. In case of anytrouble, please contactthe
store where you purchased the unit. To prevent being
exposed tothe laser beam, do nottry to open the enclosure,

0 The laser is covered by a housing which prevents exposure
during operation or maintenance. However, this product is
classified as a Laser Product by CDRH (Center for Devices
and Radiological Health) which is a department of the Food
and Drug Administration. According to their regulations 21
CFR section 1002.30, all manufacturers who sell Laser
Products must maintain records of written communications
between the manufacturer, dealers and customers con-
cerning radiation safety. It you have any complaints about
instructions or explanations afiecting the use of this prod-
uct, pleasefeel free to write to the add ress on the back page
of this manual. When you write us, please includethe model
number and serial number of your Compact Disc Player.

0 In compliance with Federal Regulations, the certification.
identification and the period of manufacture are indicated
on the rear panel.

0 DANGER:
INVISIBLE LASER RADIATION CAN OCCURWHEN
THE PLAYER IS OPEN AND THE INTERLOCK HAS
FAILED OR IS DEFEATED. AVOID DIRECT EXPO-
SURE TO BEAM.

I CAUTION:
THIS PRODUCT UTILIZESALASER. USE OF CON-
TROLS, OR ADJUSTMENTS, OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECI-
FIED HEREIN MAY RESULT IN HAZARDOUS RA-
DIATION EXPOSURE.

I FCC INFORMATION FOR USER

CAUTION:
Changes or modifications not expressly approved by the
party responsible for compliance could void the users
authority to operate the equipment.

NOTE:
This equipment has been tested and found to comply with
the limits for a Class B digital device pursuant to Part 15 of
the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference in a resi-
dential installation. This equipment generates, uses and
can radiate radio frequency energy and if not installed and
used in accordance with the instructions may cause harmful
interference to radio communications. However there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
0 Reorient or relocate the receiving antenna.
I Increase the separation between the equipment and

receiver.

0 Connect the equipment into an outlet on a circuit different
trom that to which the receiver is connected.

0 Consultthe dealer oran experienced radioff V technician
tor help.

0 THIS DIGITAL APPARATUS DOES NOT EXCEED THE
CLASS B LIMITS FOR RADIO NOISE EMISSION FROM
DIGITAL APPARATUS SET OUT IN THE RADIO INTER-
FERENCE REGULATIONS OF THE CANADIAN DEPART-
MENT OF COMMUNICATIONS.

U L' INTERFERENCE, RADIO ELECTRIQUE GENEREE PAR

CET APPAREIL NUMERIOUE DE TYPE B NE DEPASSE
PAS LES LIMITES ENONCEES DANS LE REGLEMENT
SUL LES PERTURBATIONS RADIO ELECTRIQUES, SEC-
TION APPAREIL NUMERIOUE,DU MINISTERE DES COM-
MUNICATIONS.

ONKYO Integra
