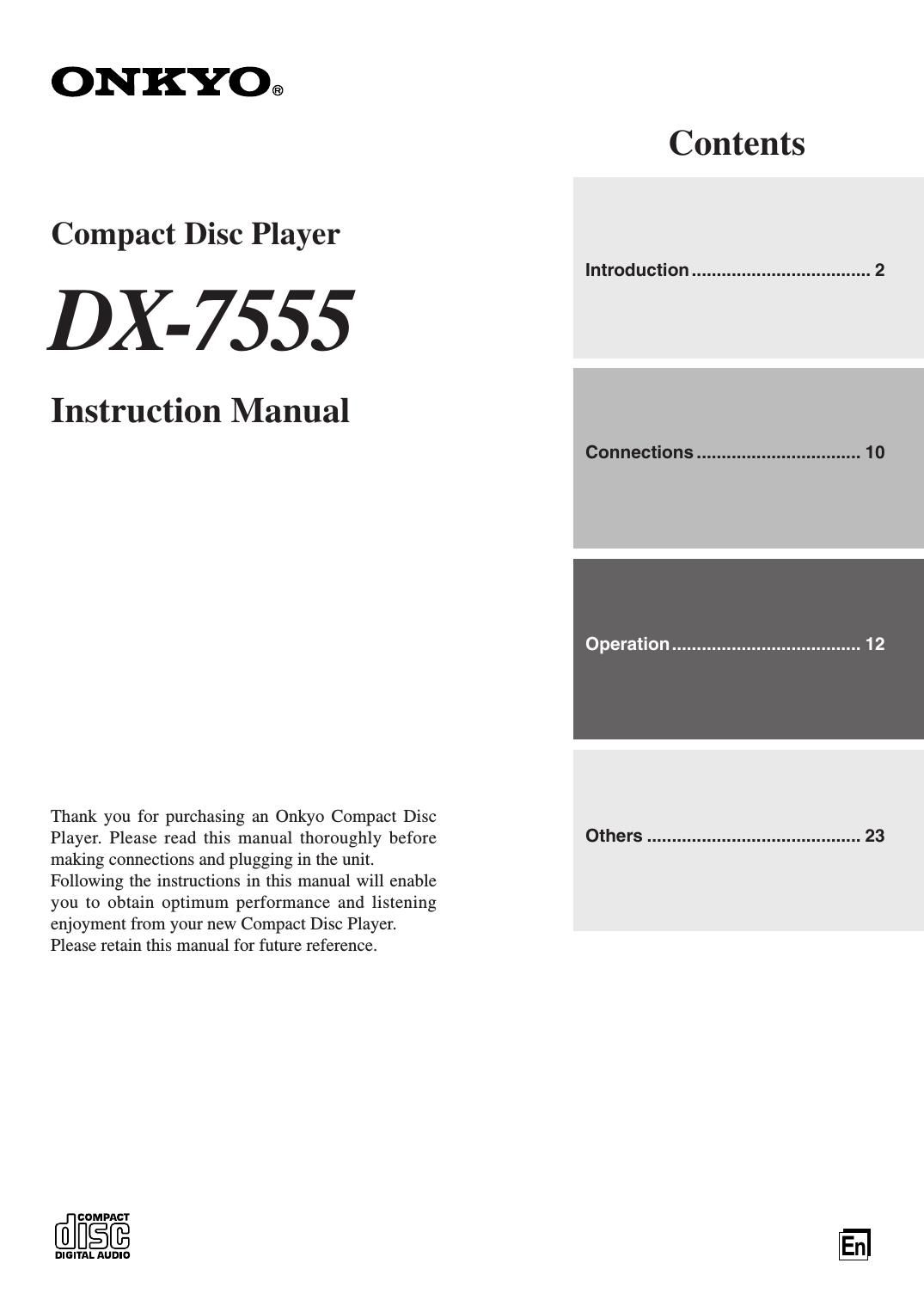

Onkyo DX 7555 Owners Manual
This is the 28 pages manual for Onkyo DX 7555 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo DX 7555 Owners Manual (Ocr-read)
Page 1
2 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8. Do not install near any heat sources such as radia- tors, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are pro- vided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience recepta- cles, and the point where they exit from the appara- tus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table spec- ified by the manufacturer, or sold with the apparatus. When a cart is used, use cau- tion when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is dam- aged, B. If liquid has been spilled, or objects have fallen into the apparatus, C. If the apparatus has been exposed to rain or water, D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation, E. If the apparatus has been dropped or damaged in any way, and F. When the apparatus exhibits a distinct change in performance this indicates a need for service. 16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous volt- age points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Dont put candles or other burning objects on top of this unit. 17. Batteries Always consider the environmental issues and fol- low local regulations when disposing of batteries. 18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is ade- quate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNINGRISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS PORTABLE CART WARNING S3125A
Page 2
3 Precautions 1. Recording Copyright -Unless its for personal use only, recording copyrighted material is illegal with- out the permission of the copyright holder. 2. AC Fuse -The AC fuse inside the unit is not user- serviceable. If you cannot turn on the unit, contact your Onkyo dealer. 3. Care -Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild deter- gent and water. Dry the unit immediately afterwards with a clean cloth. Dont use abrasive cloths, thin- ners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel let- tering. 4. Power WARNING BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SEC- TION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the units rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz). The unit is not fully powered off, while the STANDBY indicator stays lit up. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet. 5. Never Touch this Unit with Wet Hands- Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer. 6. Handling Notes -If you need to transport this unit, use the original packaging to pack it how it was when you origi- nally bought it. -Do not leave rubber or plastic items on this unit for a long time, because they may leave marks on the case. -This units top and rear panels may get warm after prolonged use. This is normal. -If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally. -When youve finished using this unit, remove all discs and turn off the power. 7. Installing this Unit -Install this unit in a well-ventilated location. -Ensure that theres adequate ventilation all around this unit, especially if its installed in an audio rack. If the ventilation is inadequate, the unit may overheat, leading to malfunction. -Do not expose this unit to direct sunlight or heat sources, because its internal temperature may rise, shortening the life of the optical pickup.-Avoid damp and dusty places, and places subject to vibrations from loudspeakers. Never put the unit on top of, or directly above a loudspeaker. -Install this unit horizontally. Never use it on its side or on a sloping surface, because it may cause a malfunction. -If you install this unit near a TV, radio, or VCR, the picture and sound quality may be affected. If this occurs, move this unit away from the TV, radio, or VCR. 8. To Obtain a Clear Picture -This unit is a high- tech, precision device. If the lens on the optical pickup, or the disc drive mechanism becomes dirty or worn, the picture quality may be affected. To maintain the best picture quality, we recommend regular inspection and maintenance (cleaning or worn part replacement) every 1,000 hours of use depending on the operating environment. Contact your Onkyo dealer for details. 9. Moisture Condensation Moisture condensation may damage this unit. Read the following carefully: Moisture may condense on the lens of the optical pickup, one of the most important parts inside this unit. -Moisture condensation can occur in the following situations: –The unit is moved from a cold place to a warm place. –A heater is turned on, or cold air from an air conditioner is hitting the unit. –In the summer, when this unit is moved from an air conditioned room to a hot and humid place. –The unit is used in a humid place. -Do not use this unit when theres the possibility of moisture condensation occurring. Doing so may damage your discs and certain parts inside this unit. If condensation does occur, remove all discs and leave this unit turned on for two to three hours. By this time, the unit will have warmed up and any con- densation will have evaporated. For European Models Declaration of Conformity We, ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY GROEBENZELL, GERMANY ONKYO EUROPE ELECTRONICS GmbH K. MIYAGI declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.
Page 5
6 Front & Rear Panels The page numbers in parentheses show where you can find the main explanation for each item. Display A PHONES LEVEL knob Use to control the phones level. Turn the dial clockwise to increase the phones level and counterclockwise to decrease it. B PHONES jack This is a standard stereo jack for connecting stereo headphones. C POWER switch (12) Press to turn on/off the DX-7555. D STANDBY indicator (12) Lights up when the DX-7555 is in Standby mode. E Open/Close [] button (12) Press to open and close the disc tray. F DISPLAY button (16) Press to change the displayed information. G [ / ] buttons (13) Press and hold to fast reverse or fast forward during playback. H [ / ] dial (13) Rotate the dial in a clockwise or counterclockwise direction to select a next or previous track. To start playback for a selected track, press the button. For MP3 disc, the dial can be used for navigation. I Play [ ] button (12) Press to start playback. J Stop [ ] button (13) Press to stop playback. K Pause [ ] button (13) Press to pause playback L Remote Control Senser (9) M Play & Pause indicators Illuminate in play or pause mode. N MP3 indicator Illuminates when MP3 disc is loaded. O TITLE indicator Illuminates when the title (ID3 Tags) is displayed for MP3 file. P GROUP (FOLDER) indicator Illuminates when the group (folder) number is dis- played for the selected MP3. Q TRACK indicator Illuminates when the track number is displayed. R RANDOM indicator (18) Illuminates during random playback. S TOTAL & REMAIN indicators Illuminate when the remaining time is shown. (Only when audio CD is loaded; not available when MP3 disc is loaded.) REMAIN: Displays the remaining playback time of the track. TOTAL REMAIN: Displays the remaining play- back time of the disc. T MEMORY indicator (17) Illuminates during memory playback. U Repeat indicator (18) Illuminates during repeat playback. * Folders (directories) are referred to as groups. Example of display for MP3 disc. Front Panel & Display 3 1 2 4 5 6 8 9 7 0 A B C D E F G H I J K Recorded number of folders*Name of disc (First 5 letters.) Recorded number of tracks
