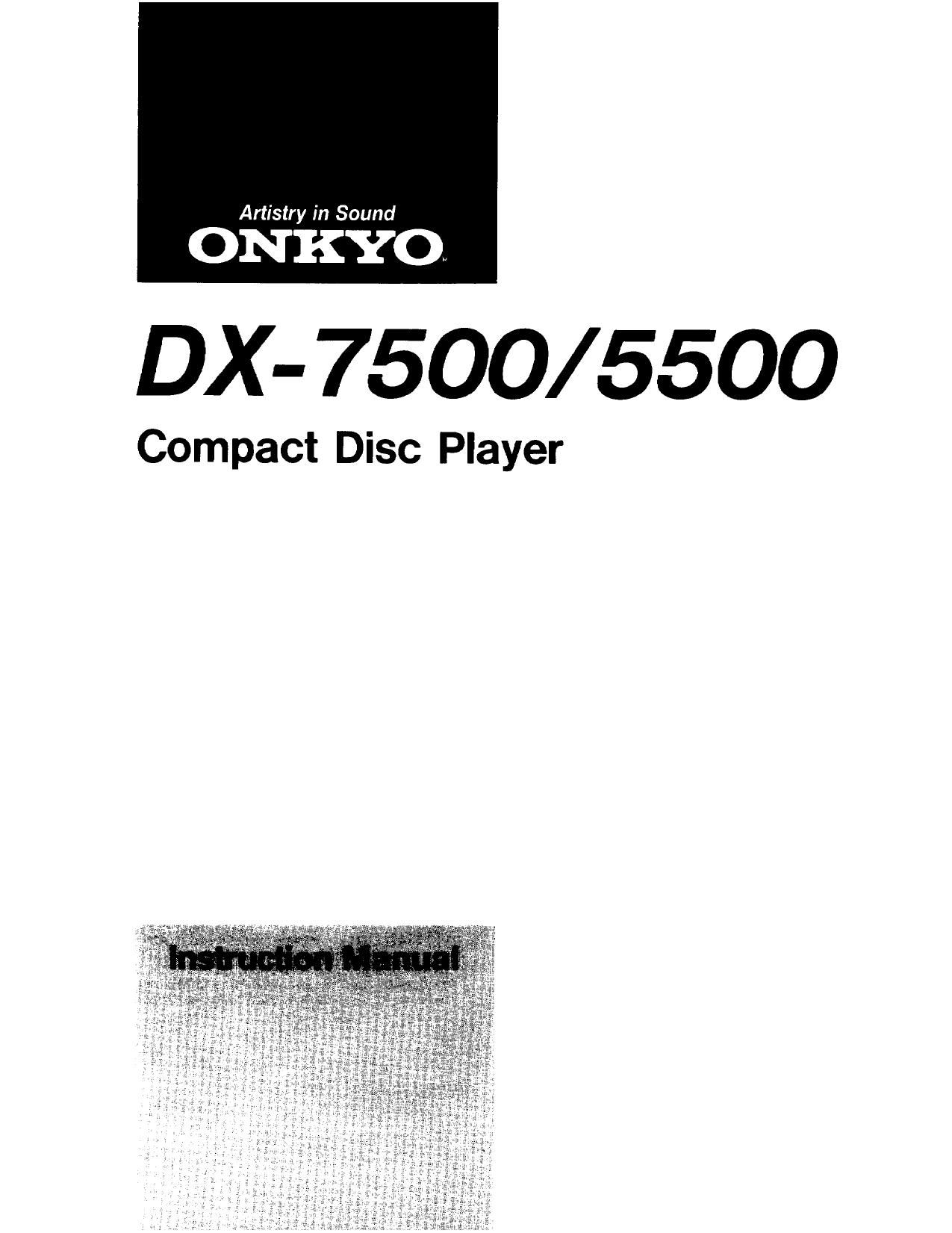

Onkyo DX 7500 Owners Manual

Page 2

I Congratulations on your purchase of the ON/(YO DX-7500/5500 CD Player. O Please
read this manual thoroughly before making connections and turning power an. 0 Following
the instructions in this manual will enable you to obtain optimum performance and listening
enjoyment from your new DXF 7500/5500. 0 Please retain this manual {or future reference.

Features .......................
Important safeguards
Precautions .............
Before using this unit.
System connections
Front panel facilities
0perations.................
Using the remote control transmi ter
Troubleshooting guide ...........................
Specifications ....................................................

CON TEN TS

Features
-

0 Discrete Left and Right channel 18-bit D/A converters with Opto-Drive'
Onkyos Optor Drive is a revolutionary new type of steady state current supply which ensures that the output from the WA converters
is completely free of electromagnetic interference. Instead of using a conventional zener diode as a current source, Opto-Drive uses a
phoiotransistor to convert light energy Into electricityThe output is then amplified and used as the steady state current supply
Both the DXE7500 and DX-SSOO feature two such"0piOEDrive D/A converters one each for the left and right channel signals. Using
discrete D/A converters eliminates phase differences between the stereo channels which can cause muddy, unfocused sound.
Finally, true 18-bit D/A conversion expands dynamic range and S/N ratio 7 a significant advance compared with earlier 14, or lSEbit
systems. Delicate musical nuances which could be masked by noise from semiconductors, etc. in conventional CD players emerge with

crystal clarity for stunningly vibrant, detailed sound reproduction.

0 Opto-Coupling

Onkvo's OptoECoupling keeps digital pulse noise out of the analog circuitry by electrically isolating the digital block Beams ol light,
not electricity, transmit the necessary signals via a "bridge" composed of photocoupleis and Onkyos "OptorCoupling Modules " (In
the DXE7500, a full Six data signals are transmitted optically, two Via Cote-Coupling modules.)Since there is no electrical contact at
all between the digital and analog blocks, DSI (digital signal interference) doesn't even have a chance to develop The resulting sound
is clear and lifelike, without the harshness sometimes associated with the CD format.

0 Optical and Electrical Coaxial Outputs

Users With amplifiers equipped With digital input facilities or outboard D/A converters can take their choice between two types of digital
output, Digital data transfer between CD player and amplifier provides unmatched signal integrity, Optical transfer boasts the additional
advantage of eliminating any possibility of electrical interference "looping from CD player to amplifier via the AC power supply

CAUTION

To REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). N0 USER-SERVlCEABLE PARTS INSIDE.
REFER SERVICING To QUALIFIED SERVICE PERSONNEL

m CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

I The lightning flash with arrowhead symbol, wiihin
an equilateral triangle is intended to alert the user
to the presence of Unmsuiated "dangerous voltage"
Within the products enclosure that may be of Suiflr
cieni magniiude to constitute a risk ol electric shock
to persons.

D The exclamation point Within an equilaterai triangle
is Intended to alert the user to the presence of Im-
poiram Operating and maintenance (servicing) in.
Struciions In the literature accompanying the appli-
ance.

WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

o For models haVing power cords With a polarized plug.

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE
THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RE-
CEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE.

O Sur les modéles dont la fiche est polarise'e

ATTENTION: POUR PREVENIR LESCHOCSELECTRIQUES
NE PAS UTILISEFl CETTE FICHE POLARISEE AVEC UN PRO-
LONGATEUR UNE PRISE DE COURANT 0U UNE AUTRE SORTlE
DE COURANT, SAUF SI LES LAMES PEUVENT ETRE iNSEREEs
A FOND SANS EN LAISSER AUCUNE PARTIE A DECOUVERT
