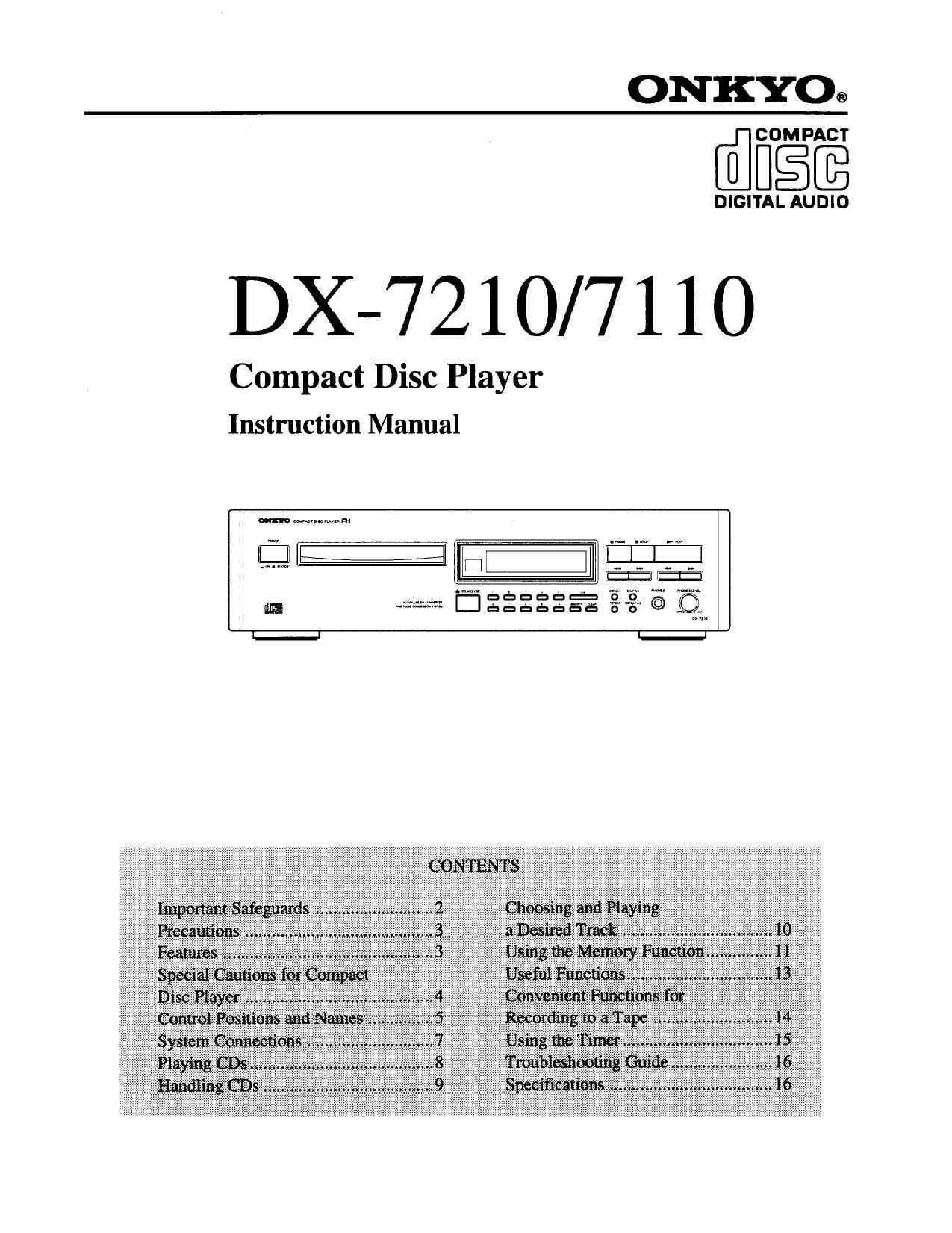

Onkyo DX 7210 Owners Manual

Page 2

Thank you for your purchase of the

ON KYO DX-7210/7110 CD player.

Please read this manual thoroughly before making connections
and plugging in the AC power cord,

Following the instructions in this manual will enable you to
obtain optimum performance and maximum listening enjoy-
ment from your new DX-7210/7110.

Please retain this manual for future reference.

' This apparatus complies with requirements of EC directive
87/308/EEC.

' For models having a power cord with a polarized plug
CAUTION:TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

- Sur les modeles dont la fiche est polarisée,
ATTENTION :POUR EVITER LES CHOCS
ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE
DE LA FICHE DANS LA BORNE CORRESPONDANTE DE
LA PRISE ET POUSSER JUSQ'AU FOND.

' Replacement and mounting of an AC plug on the power

supply cord of this unit should be performed only by qualified

service personnel.
~ IMPORTANT: The wires in the mains lead are coloured in

accordance with the following code:

Blue: Neutral

Brown: Live
As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red,

11

WARNING

TO REDUCE THE RISK OF FIRE 0R ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE To RAIN
OR MOISTURE."

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING T0 QUALIFIED
SERVICE PERSONNEL."

m CAUTION

RlSK OF ELECTRIC SHOCK
DO NOT OPFH

presence of uninsulated dangerous voltage" within the
product's enclosure that may be of sufficient magni~
tude to constitute a risk of electric shock to persons.

. The exclamation point within an equilateral triangle is
i:i intended to alert the user to the presence of important

- The lightning flash with arrowhead symbol. within an
if? equilateral triangle. is intended to aleu the user to the

operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

Important Safeguards

1. Reed Instructions - All the safety and operating instructions
should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instmclions should
be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the
operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be
followed.

5. Water and Moisture - The appliance should not be used near
water - for example, near a bathtub, washbowl, kitchen sink.
laundry tub. in a wet basement; or near a swimming pool, and the
like.

6. Carts and Stands - The appliance should be used only with a can
or stand that is recommended by the manufacturer.

6A. An appliance and cart combination should be moved with care. Quick

stops, excessive force. and uneven surface may cause the appliance
and cart combination to overturn.
PORTABLE cam WARNING

sat 25A

7. Wall or Ceiling Mounting - The appliance should be mounted to a
wall or ceiling only as recommended by the manufacturer.

ll. Ventilation -The appliance should be situated so that its location
or position does not interfere with its proper ventilation, For example.
the appliance should not be situated on a bed. sofa, mg, or similar
surface that may block the ventilation openings: or. placed in a built-
in installation. such as a bookcase or cabinet that may impede the
flow of air through the ventilation openings.

9, Heat - The appliance should be situated away from heat sources
such as radiators, heat registers. stoves, or other appliances (including
amplifiers) that produce heat.

10. Power Sources - The appliance should be connected to a power

supply only of the type described In the operating instructions oras
marked on the appliance.

ll. Polarization - The polarization of the plug is a safety feature. The

polarized plug will only fit the outlet one way. If the plug does not fit
fully into the outlet. try reversing it. If there is still trouble. the user
should seek the services of a qualified electrician. Under no
circumstances should the user attempt to defeat the polarization of the
plug.

Power-Cord Protection - Powcrrsupply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them. convenience receptacles, and the point where
they exit from the appliance.

13. Cleaning - The appliance should be cleaned only as recommended

by the manufacturer.

In. Nonuse Periods - The power cord of the appliance should be

unplugged from the outlet when lefl unused for a long period of time.

15. Object and Liquid Entry - Care should be taken so that objects do

not fall and liquids are not spilled into the enclosure through
openings.

16. Damage Requiring Service -The appliance should be serviced by

qualified service personnel when:
A. The power-supply cord or the plug has been damaged; or

B. Objects have fallen. or liquid ha been spilled into the appliance;
or

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or

E. The appliance has been dropped. or the enclosure damaged.

17. Servicing- The user should not attempt to service the appliance

beyond that described in the operating instructions. All other
servicing should be referred to qualified service personnel.

Page 7

System Connections

. Do not plug in the power cord until all connections have been made.
- On each pair of input or output jacks, the lower jack (marked R) corresponds to the right channel, and the upper jack
(marked L) to the left channel.

Amplifier

Connect the CD's OUTPUT jacks and the
mplifier's CD input jacks using the audio
onnection cable. Refer to the amplifier's
instruction manual for connections.

When connecting ONKYO products. it is
5 necessary to attach the R l cable to be able
to use the remote control of the main
component to control the entire system.

i 1. To use this CD player with an amplifier
(or receiver), cassette tape deck and
tuner with the R I symbol. insert the
remote control cable plugs into the
REMOTE CONTROL jacks as shown.

2. As the exact connection sequence of the

To RI remote control jack 0' the
ONKYO receiver, ampliller or
cassette tape deck.

NOTE: _ , FM cable is unimportant. you can
t The upper and lower RI remote control Jacks have the same function, connect from the amplifier (or receiver)
' Remote control operation is not possible when only the remote control cable is con- to either the tuner. the cassette tape
nected - the audio connection cables must also be connected deck or to the compact disc player.
0 An RI remote control cable equipped with a 1/8" (3.5mm) diameter miniature two- 3_ If using an n I equipped ()ny0

conductor phone plug is included with lhe DX»7210/7110 and with every tuner,
compact disc player or cassette tape deck with the R I symbol.

amplifier.(or receiver), to operate
correctly, the remote control must face
towards the remote control sensor of
the amplifier (or receiver),

Insert the AC power supply cord into
a wall outlet.

2. When you press the POWER button,
the display will light.

POWER

.0" n swam

Plug the headphones to the PHONES
jack. and then adjust the sound level
using the PHONES LEVEL knob
Turn the knob clockwise to increase the
sound level; tum it counterclockwise to
decrease the sound level.

Page 16

Troubleshooting
Guide

0 POWER button is pressed, but power does not come on.
Cause: Power cord plug is not properly connected to AC
outlet.
Remedy: Insen plug firmly.

' Disc is loaded in the disc tray, but play will not begin.
Cause: Disc is in the disc tray upside down.
Remedy: Load the disc with the label side up.
Cause: Disc is dirty.
Remedy: Clean the disc.
Cause: Moisture has accumulated inside the CD player.
Remedy: Remove the disc from the disc tray, place the
CD player in a warm place and leave the power
on for about one hour.

- No sound
Cause: Incomplete or incorrect connections.
Remedy: Check all cable connections (See pages 7.)
Remedy: Insert all plugs fimily into jacks,
Cause: Improper input selector switch setting on amplifier.
Remedy: Set switch to proper position. See your
amplifiers operating instructions for more
information.

- Disc skipping
Cause: Disc is dirty.
Remedy: Clean the disc,
Cause: Disc is scratched,
Remedy: Replace the disc.
Cause: CD player has been bumped.
Remedy: Place the CD player in a more stable location,

- Search time (when moving to a specific track) is extremely
long.
Cause: Disc is dirty.
Remedy: Clean the disc.
Cause: Disc is scratched.
Remedy: Replace the disc.

' Track numbers cannot be stored in the memory.
Cause: No disc in the tray.
Remedy: Load a disc into the tray.
Cause: A track number not on the disc is being input.
Remedy: Use only the track numbers on the disc.

Specifications

Model DX-7210/71 10

Optical non-contact

About 500 - 200 r.p.m.

(constant linear velocity)

1.2 - 1.4 m/s

Cross Interleave Reed-Solomon code
1 bit PWM ACCUPULSE D/A
CONVERTER

352.8 kHz (Eight-times
oversampling)

Number of channels: 2 (stereo)

Frequency response: 5 Hz » 20 kHz

Total harmonic distortion: 0.004 % (at 1 kHz)

Dynamic range: 96 dB

Signal to noise ratio: 100 dB

Channel separation: 90 dB (at 1 kHz)

Wow and Flutter: Below threshold of measurability

Compact Disc Player
Signal readout system:
Reading rotation:

Linear velocity:
Error correction system:
D/A converter:

Sampling frequency:

Output level: 2 volts r.m.s.
Power consumption: 12 watts
Power supply rating: European and Australian models:

AC 230 V. 50 Hz
USA and Canadian models:
AC 120 V. 60 Hz
Worldwide model:
AC 120 V and AC 220V
switchable, 50/60 Hz
Dimensions (W x H x D): 455 x 120 x 308 mm
(l7-15I16" X 4-3/ "X 12-1/8")
Weight: 43 kg. 9.51bs.
Specifications and external appearance are subject to change
without notice because of product improvements,
