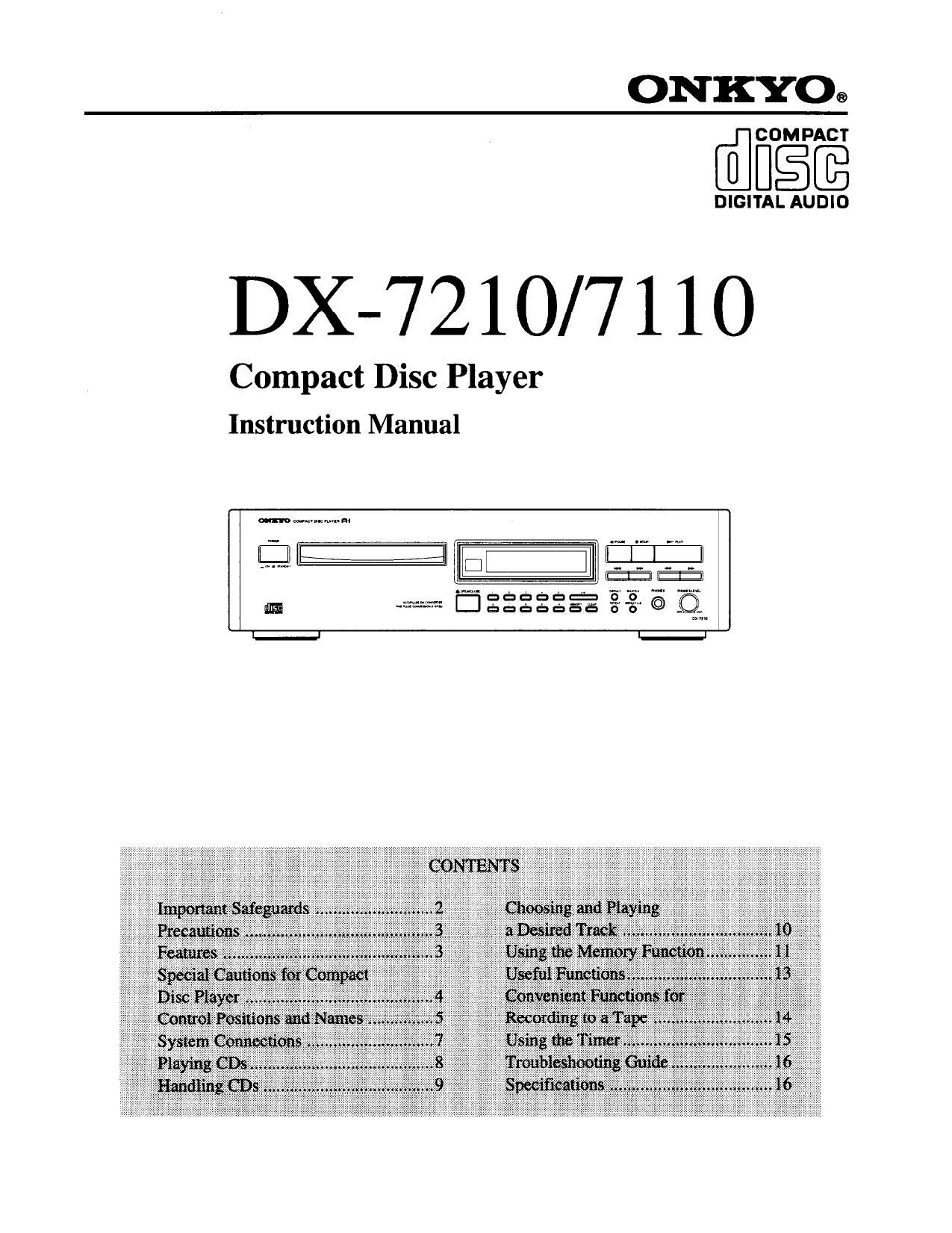

Onkyo DX 7110 Owners Manual

Page 2

Thank you for your purchase of the

ON KYO DX-7210/7110 CD player.

Please read this manual thoroughly before making connections
and plugging in the AC power cord,

Following the instructions in this manual will enable you to
obtain optimum performance and maximum listening enjoy-
ment from your new DX-7210/7110.

Please retain this manual for future reference.

' This apparatus complies with requirements of EC directive
87/308/EEC.

' For models having a power cord with a polarized plug
CAUTION:TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

- Sur les modeles dont la fiche est polarisée,
ATTENTION :POUR EVITER LES CHOCS
ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE
DE LA FICHE DANS LA BORNE CORRESPONDANTE DE
LA PRISE ET POUSSER JUSQ'AU FOND.

' Replacement and mounting of an AC plug on the power

supply cord of this unit should be performed only by qualified

service personnel.
~ IMPORTANT: The wires in the mains lead are coloured in

accordance with the following code:

Blue: Neutral

Brown: Live
As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red,

11

WARNING

TO REDUCE THE RISK OF FIRE 0R ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE To RAIN
OR MOISTURE."

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING T0 QUALIFIED
SERVICE PERSONNEL."

m CAUTION

RlSK OF ELECTRIC SHOCK
DO NOT OPFH

presence of uninsulated dangerous voltage" within the
product's enclosure that may be of sufficient magni~
tude to constitute a risk of electric shock to persons.

. The exclamation point within an equilateral triangle is
i:i intended to alert the user to the presence of important

- The lightning flash with arrowhead symbol. within an
if? equilateral triangle. is intended to aleu the user to the

operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

Important Safeguards

1. Reed Instructions - All the safety and operating instructions
should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instmclions should
be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the
operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be
followed.

5. Water and Moisture - The appliance should not be used near
water - for example, near a bathtub, washbowl, kitchen sink.
laundry tub. in a wet basement; or near a swimming pool, and the
like.

6. Carts and Stands - The appliance should be used only with a can
or stand that is recommended by the manufacturer.

6A. An appliance and cart combination should be moved with care. Quick

stops, excessive force. and uneven surface may cause the appliance
and cart combination to overturn.
PORTABLE cam WARNING

sat 25A

7. Wall or Ceiling Mounting - The appliance should be mounted to a
wall or ceiling only as recommended by the manufacturer.

ll. Ventilation -The appliance should be situated so that its location
or position does not interfere with its proper ventilation, For example.
the appliance should not be situated on a bed. sofa, mg, or similar
surface that may block the ventilation openings: or. placed in a built-
in installation. such as a bookcase or cabinet that may impede the
flow of air through the ventilation openings.

9, Heat - The appliance should be situated away from heat sources
such as radiators, heat registers. stoves, or other appliances (including
amplifiers) that produce heat.

10. Power Sources - The appliance should be connected to a power

supply only of the type described In the operating instructions oras
marked on the appliance.

ll. Polarization - The polarization of the plug is a safety feature. The

polarized plug will only fit the outlet one way. If the plug does not fit
fully into the outlet. try reversing it. If there is still trouble. the user
should seek the services of a qualified electrician. Under no
circumstances should the user attempt to defeat the polarization of the
plug.

Power-Cord Protection - Powcrrsupply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them. convenience receptacles, and the point where
they exit from the appliance.

13. Cleaning - The appliance should be cleaned only as recommended

by the manufacturer.

In. Nonuse Periods - The power cord of the appliance should be

unplugged from the outlet when lefl unused for a long period of time.

15. Object and Liquid Entry - Care should be taken so that objects do

not fall and liquids are not spilled into the enclosure through
openings.

16. Damage Requiring Service -The appliance should be serviced by

qualified service personnel when:
A. The power-supply cord or the plug has been damaged; or

B. Objects have fallen. or liquid ha been spilled into the appliance;
or

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or

E. The appliance has been dropped. or the enclosure damaged.

17. Servicing- The user should not attempt to service the appliance

beyond that described in the operating instructions. All other
servicing should be referred to qualified service personnel.

Page 8

Playing CDs

POWER
E I I PAUSE
I STOP
- > PLAY

. Press the POWER button to turn on

the power.

. Press the A OPEN/CLOSE button.

. Put the disc in the disc tray, with the

label lde of tile disc facing up.

Press the = OPEN/CLOSE button.

Press the > PLAY button.

The CD player will play the first

track (track I).

* If you want to you can skip step 4 by
pressing the b PLAY button instead
of the a OPEN/CLOSE button. The
disc tray will close automatically and
play track 1.

3 Label side

Disc tray

If the CD player does not start playing
when the b PLAY button is pressed:
~ The disc may be upside down in the
tray, Press the A OPEN/CLOSE button
to open the disc tray. If you cannot read
the label on the disc, turn the disc over.
- Moisture may have formed inside the
CD player. Remove the disc from the
disc tray and leave the power on for
about one hour to evaporate the
moisture.

- Before starting play after you have
inserted I disc

@ The total number of tracks on the disc

® All of the track numbers on the disc
(When the number of tracks exceeds
20, the OVER indicator lights.)

© The total playing time of the disc

- After starting play

© The track number currently being
played

© The next track number

(D The elapsed time of the current track
The display can be changed by pressing
the DISPLAY button.

Press the I STOP button.

Press the II PAUSE button.

The PAUSE indicator will light.

L To resume play, press the > PLAY

; button. The PAUSE indicator will turn off,
