Onkyo DX 230 Owners Manual

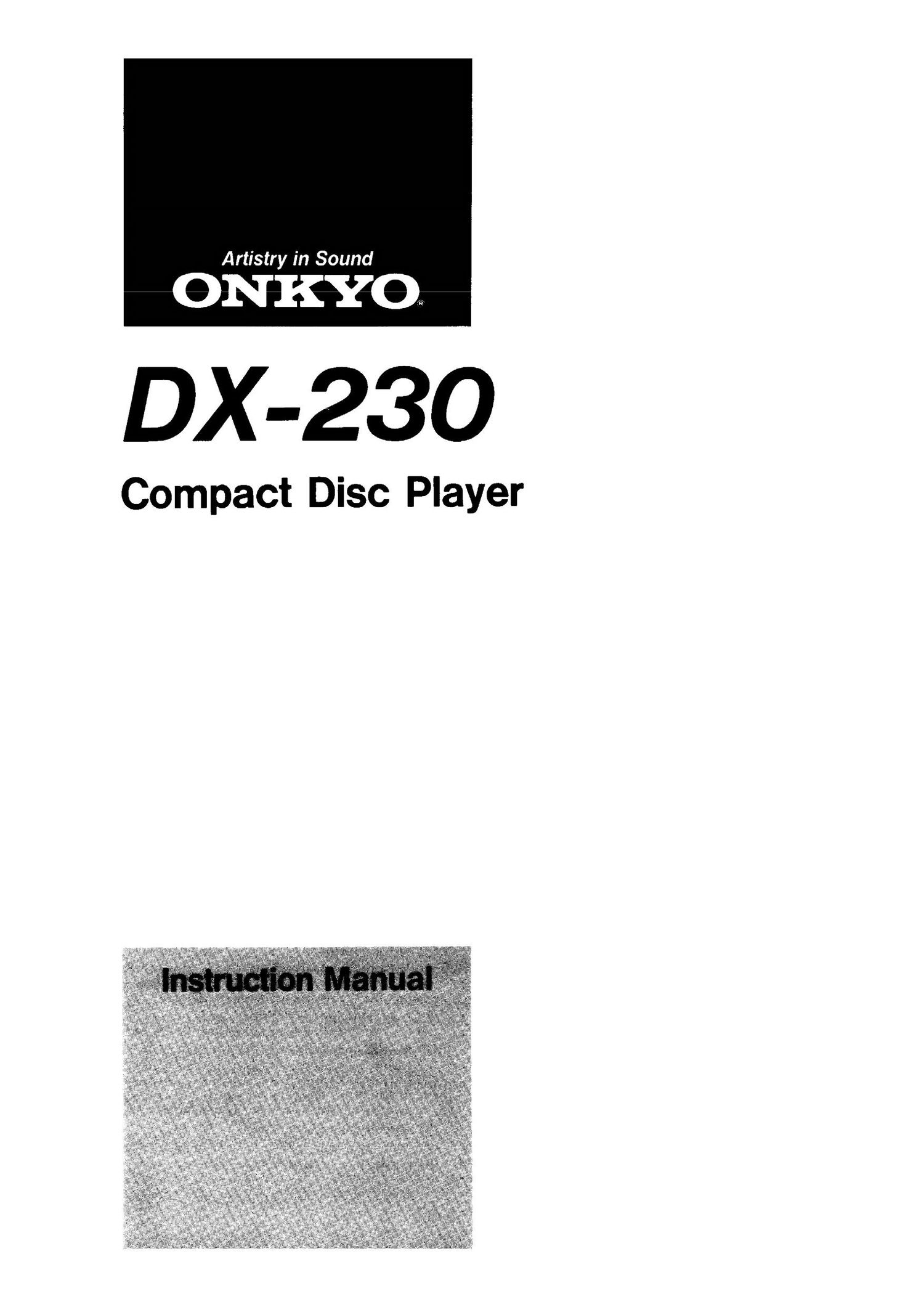

Page 1

Artistry in Sound

X -230

ompact Disc Player

Page 2

0 Congratulations on your purchase of the ONKYO DX-230 CD Player. 0 Please read this
manual thoroughly before making connections and turning power on. 0 Following the in:
structions in this manual will enable you to obtain optimum performance and listening en-
joyment from your new DX-230. 0 Please retain this manual for future reference.

CON TENTS

Features ................................................... 1
Important safeguards .......................... 1
Precautions ........................................................................................................................................................................ 2
System connections 3
Before using this uni 3
Front panel facilities ...................................................................................................................................................... 3
Operations .................................................... 4
Troubleshooting guide. 8
Specifications ............................. 8
Features

0 Opto-Coupling'

Onkyo's original Opto-Coupling technique electrically separates the digital and analog circuit blocks for a playback sound free of the

harshness sometimes associated with CD players.

0 Two~Times" oversampling and Digital Filtering

The two-times oversampling/digital filtering procedure increase the sampling frequency from the standard 44.1 kHz to 88.2kHz. As a
result, ultrasonic noise begins at a frequency of 68.2kHz-well above the upper limit of the audio band (20kHz)- so a steep analog filter
is not necessary. This method preserves high -frequency phase accuracy, resulting in much more natural treble sound reproduction.

Eight-Digit Fluorescent Display
The mum-function display indicates the current track number, the next track number, and the memory channel number, as well as the
consumed/remaining time in minutes and seconds. This display capability facilitates easy song selection and tape dubbing operations.

Special Vibration Damping
To prevent vibrationerelated tracking errors, Onkyo "floats the entire drive assembly on four supports consisting of spring coils damped
With vibration-absorbent rubber.

Three-Beam Laser Pickup
In threevbeam systems. the main beam searches for the presence of either a shiny surface, or a pit. Two auxiliary beams straddle either
side of the disc track, searching for the presence of adjacent tracks. Such pickups are less liable to be fooled" by disc defects like scratches
which can cause mistracking.

Output CMN Filter
This special nOise filter consisting of a bi-filar wound ferrite ring core is incorporated into the output (analog) circuitry to make absolutely
certain that no digital pulse interference of a type known as CMN (common mode noise) be allowed to degrade the DX~230s output

signal.

0 10-key wireless remote control included

The DX»230 includes a ten-key remote control capable of covering the play. stop, pause, program memory and clear memory functions.

You'll only have to get up to put the CD into the player.
-
"WAR N I NG"

"TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE."

CAUTION

"TO REDUCE THE RISK or ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."

@-

RISK OF ELECTRIC SHOCK
important safetuards

DO NOT OPEN

1. Read Instructions - All the safety and operating instructions
should be read below the appliance is operated

2. Retain Instructions - The safety and operating instructions
should be retained for future reference.

3. Heed Warnings a All warnings on the appliance and in the op-
erating instructions should be adhered to.

4. Follow Instructions All Operating and user instructions should
be followed

0 The lightning flash With arrowhead symbol. within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage
Within the products enclosure that may be of suffi-
cient magnitude to constitute a risk of electric shock
to persons

0 The exclamation point Within an equilateral triangle
is Intended to alert the user to the presence of im-
portant operating and maintenance (servicing) in-
structions in the literature accompanying the applie
ance.

. Water and Moisture a The appliance should not be used near

water - for example. near a bathtub. washbowl. kitchen Sink, laundry
tub, in a wet bascmcnt, or near a smmming pool, and the like.

. Carts and Stands - The appliance should be used only with a

cart or stand that is recommended by the manufacturer:

. Wall or Ceiling Mounting , The appliance should be mounted

to a wall or ceiling only as recommended by the manufacturer.
