Onkyo DVSP 800 Service Manual

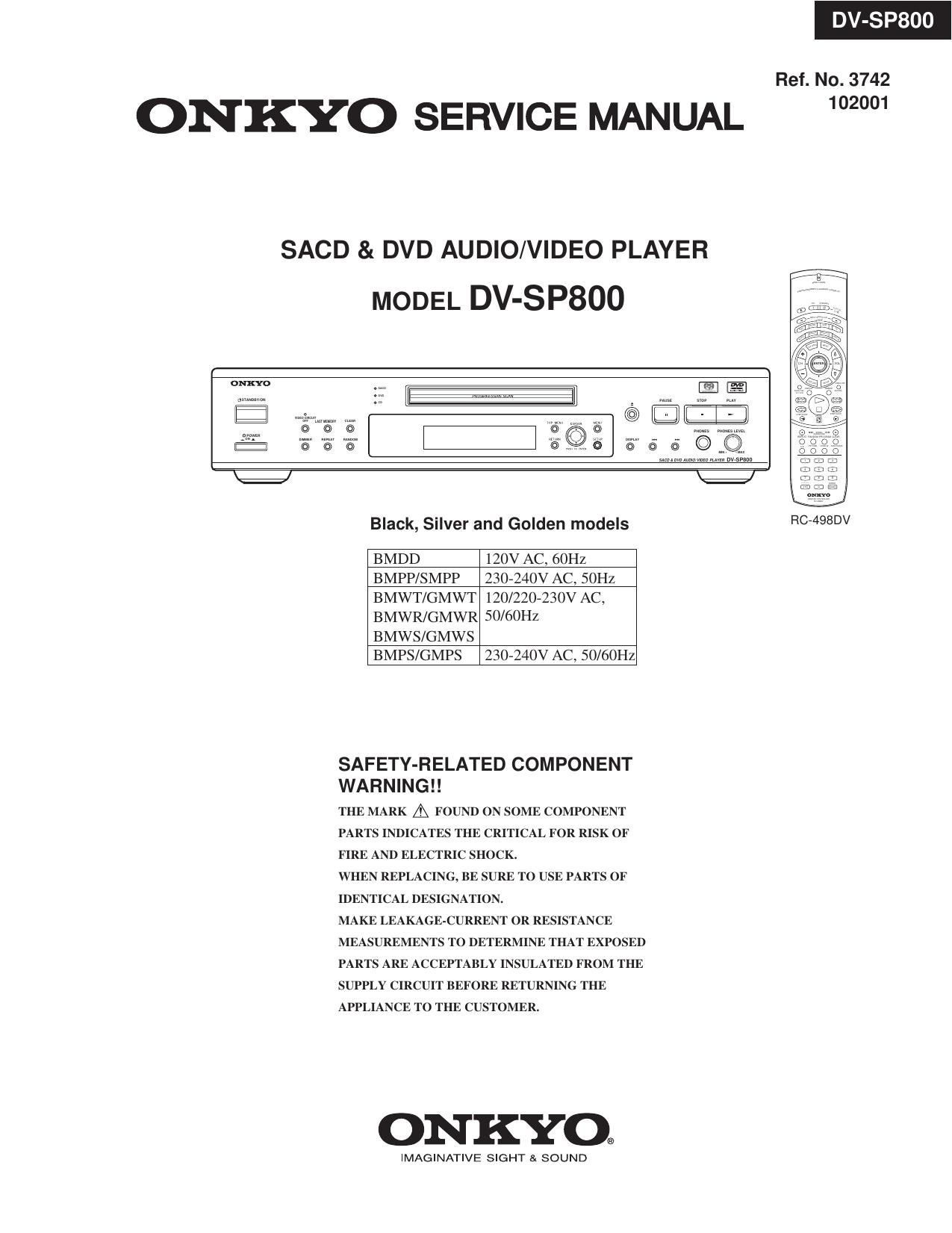

Page 1

D SP800

Ref. No. 3742

ON KYO SERVICE MANUAL 102001

SACD & DVD AUDIO/VIDEO PLAYER
MODEL DV-SP800

Black, Silver and Golden models RC'4939V

BMDD 120V AC, 60Hz
BMPP/SMPP 230-240V AC, SOHZ
BMWT/GMWT 120/220-230V AC,
BMWR/GMWR 50/60Hz
BMWS/GMWS
BMPS/GMPS 230-240V AC, 50/60Hz

SAFETY-RELATED COMPONENT
WA R N I N G l !

THE MARK A FOUND ON SOME COMPONENT
PARTS INDICATES THE CRITICAL FOR RISK OF
FIRE AND ELECTRIC SHOCK.

WHEN REPLACING, BE SURE TO USE PARTS OF
IDENTICAL DESIGNATION.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYOQ

IMAGINATIVE SIGHT & SOUND

Page 2

SPECIFICATIONS

General
Power supply

Power consumption
Power consumption in standby mode

Weight
External dimensions

DVD Player
Signal system

Regional restriction code

Laser
Frequency range (digital audio)

Signal-to-noise ratio (digital audio)
Audio dynamic range (digital audio)
Harmonic distortion (digital audio)
Wow and flutter

Operating conditions

Outputs

RGB signal output (European models)
Video output

S-video output

Component Signal output

Audio output (European models)

Audio output (digital output Optical)
Audio output (digital output Coaxial)
Audio output (analog audio)

Audio output (5.1 channel analog audio)

SP800

USA & Canadian models
European models

South American models
World wide models

AC 120 V, 60 HZ

AC 230 » 240 V, 50 Hz

AC 230 - 240 V, 50 HZ

AC 120/220 - 230 V switchable, 50/60 HZ

USA & Canadian models 40 W
European models 38 W
Other models 36 W
USA & Canadian models 8.6 W
European models 10.8 W
Other models 8.3 W

5.0 kg, 11.0 lbs.
435 X 91 X 314 mm (W/H/D), 17-1/8" X 3-9/16" X 12-3/8"

USA & Canadian models Standard NTSC

Other models PAL/AUTO
USA & Canadian areas 1
European areas 2

South American areas 4

World wide areas 4. 3

Semiconductor laser, wavelength 650/780 nm

DVD linear sound: 48 kHz sampling 4 Hz to 22 kHz
96 kHz sampling 4 Hz to 44 kHz

DVD-Audio: 192 kHz sampling 4 Hz to 96 kHz
Audio CD: 4 Hz to 20 kHz
SACD: 4 Hz to 96 kHz

More than 118 dB

More than 100 dB

Less than 0.001 %

Below measurable level (less than +/-0.001 % (W.PEAK))
Temperature: 5°C to 35°C, Operation status: Horizontal

0.7 V (p-p), 75 ohm, SCART socket x1
1.0 V (p-p), 75 ohm, negative sync., pin jack x 2

(Y) 1.0 V (p-p), 75 ohm, negative sync., Mini DIN 4-pin x 2
(C) 0.286 V (p-p), 75 ohm

(Y) 1.0 V (p-p), 75 ohm, negative sync., pin jack x1
(Cb, Pb)/ (Cr, Pr) 0.7 V (p-p), 75 ohm

2.0 V (rms), 440 ohm, SCART socket x 1
- 22.5 dBm x 2

0.5 V (p-p), 75 ohm, pin jack x1

2.0 V (rms), 440 ohm, pin jack (L, R) x 2

2.0 v (rms), 440 ohm, pin jack (Lo/Lt, Ro/Rt, SL1, SR1, (3, SW) x 1
1.4 v (rms), 440 ohm, pin jack (SL2, SR2) x 1

Specifications and features are subject to change without notice.
