Onkyo DVSP 800 Owners Manual 2

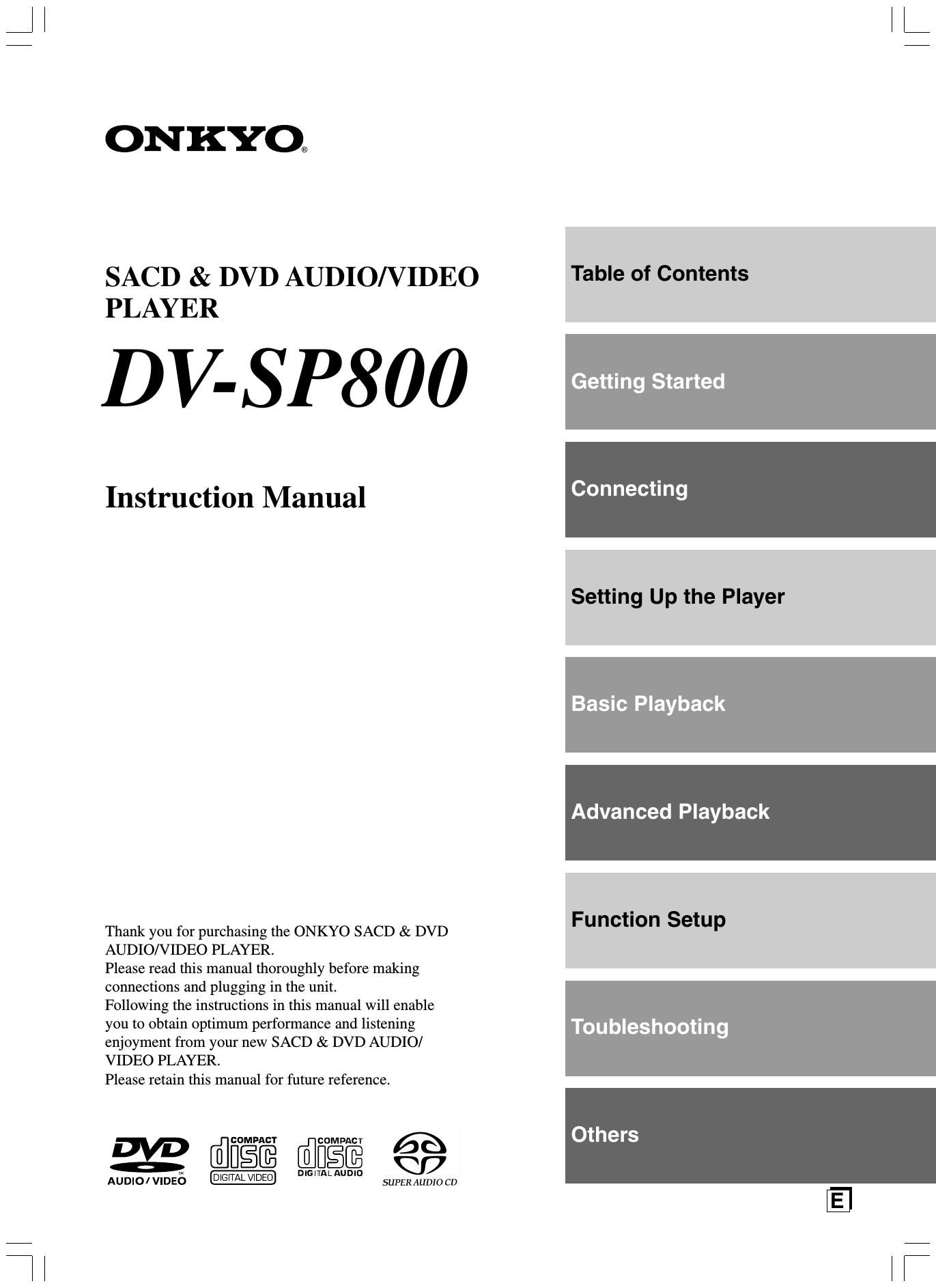

Page 1

ONKYO®

SACD & DVD AUDIO/VIDEO
PLAYER

DV-SP800

Instruction Manual

Thank you for purchasing the ONKYO SACD & DVD
AUDIO/VIDEO PLAYER.

Please read this manual thoroughly before making
connections and plugging in the unit.

Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new SACD & DVD AUDIO/
VIDEO PLAYER.

Please retain this manual for future reference.

22 Lfigfid @EEE @

DIGITAL AUDIO
AUDIO I VIDEO _G'TAL 050 supzmumo cu

Table of Contents

Getting Started

Connecting

Setting Up the Player

Basic Playback

Advanced Playback

Function Setup

Toubleshooting

Page 2

Table of Contents

Getting Started

Important Safeguards ..
Precautions ..................
Notes on Discs .............................
Features/Supplied Accessories.

Before You Start ...........................
Index to Parts and Controls ......................... 10

_

Connecting to a TV ...................................... 15
- Using the supplied audio/video connection cable
- Making component video connections
- Making S-video connections
Connecting to a TV (European models) ....... 17
- Connecting to a TV Using the SCART Cable
(European models)
- Making S-video connections
- AV CONNECTOR 1 jack
Connecting to an Amplifier (To Enjoy the Sound
Advantage of the DVD Player) ................ 18
- Making a digital connection with the amplifier
- Making discrete 5.1 channel ANALOG OUTPUT
connections
- Making discrete 2 channel ANALOG OUTPUT
connections

Connecting the Power/
Turning on the DVD Player ..................... 20

l Setting Up the Player

Setting Up the Player ................................... 21
- Various sound formats and sound effects

Basic Playback I

Getting Started Using Your DVD Player ....... 25

Programming the Commands of Other Remote
Control Units into the Remote

Controller ................................................ 65
Register the Codes of Other Units Remote

Controllers .............................................. 68
Troubleshooting ...71

Specifications ........

Getting Started I

Various Functions I

I Advanced Playback

Still Frame/Slow Play ................................... 29
Locating a Specific Title/Folder/Chapterfl'rack/

Location ........... 30
Repeat Play .......... 32
Random Play ......................

Playing in a Favorite Order.
Selecting the Camera Angle ..
Selecting the Audio/Subtitle Language ........ 39
Continuing Playback from a Specified Location
(Last Memory) ......................................... 4O
Memorizing Settings for Often Viewed DVDs
(Condition Memory) ......................... 41
Turning Off the Video Signal Output ..... 42
Listening through Headphones .....
Viewing Disc Information

I Function Setup

Adjusting Audio and Video Settings . .. 46
Using the Setup Screen Menus ............... 46
Changing to the Setup Screen Expert" Menu Mode 47
Adjusting the Dynamic Range of the Audio

Soundtrack .................... 48
Setting the Audio 1 Options . 48
Setting the Audio 2 Options ..... 50
Setting the TV Screen Size .. 52
Setting the Video 1 Options ..... 53
Adjusting the Video Quality ...... 54
Setting the Video 2 Options r 56
Setting the Language Options . 57
Language Code List ..................... 60
Setting the Parental Lock Level 61
Country Code List ........................ 63
Other Settings .......................................... 63

Memorizing Settings (Function Memory) . 64
Recalling Memorized Settings ................. 64
Resetting the Player to System Settings ................. 64

Page 31

PROGRAM- . -CLEAFl
amp/3

Using the MP3 Navigator 3332;";

Use the MP3 Navigator to make searching for the track(s) you i
want to play easier. You can also use it to add or clear tracks I Navigate using the following controls
from the program list.

ca @u-yl-SEARCH

mo l

Cursor buttons () Select folder and tracks from the
current screen.

1 Load a CD-R/CD-RW containing _

Mp3 tracks. Cursor buttons (A/V) Select the prevrous/next of folders
and tracks. To move rapidly up or
down a long list of folders or tracks,

2 "m 95.3 MENU 1° enter the MP3 press and hold the Cursor buttons
NaVIgator screen. (A/V).
The left side of the screen shows a list of
folders containing MP3 tracks. ENTER Play the currently selected folder or
track. MP3 tracks that are unplayable
Total number of Track . .
on this system are automatically
Current: > 1-1 MWN-vin-MJ skipped and the display shows
PE will? 'T"lmm.l UNPLAYABLE MP3 FORMAT".
I D HOLDEN zi'rmimz _ _
a 0mm 2.1mm MENU an the MP3 NaVIgator
E 58352:: W
. a 52mm PROGRAM Add the currently selected track to
Win-v MW ion the ro ram list. (Tracks in the
P 9 _
Total number of Folder pregram 5 are marked )
Pressing PROGRAM repeatedly will
If you display the MP3 Navigator when a add the track to the program 5
disc is playing, the currently playing folder repeatedly.
and track numbers are shown at the top See Programming MPQS" on page
let-t 0f the screen. 35 for how to use program play.
:3" mt: final-fie l: Ens}? MP3 "aCkS CLEAR Clear the currently selected track
rom e ' s ' e ' e '5' from the program list.
Current: V H \ MP3 Navigator
1-1n Fold-r C Track 1-:
Q woman-1 v. mmm h

Z.FDLDEH-1 zmcxz-z
3.FDLDEH-3 imam-3
HOLDER-l ATRACKl-l
5.FDLDER-5
OLDER-6 '

B
Q
Q
Q
B
mm mm EMER Plly min Exit

31

Page 39

Selecting the Audio/
Subtitle Language

DVDV"

Changing the Audio Language

(Multi-Language Function)

Dolby Digital, POM, and other audio data can be recorded on
DVDs in a number of languages or audio tracks. letting you
choose the desired language or audio.

Press AUDIO repeatedly to select
the desired language.

Pressing AUDIO once displays the
currently selected language. Subsequent
presses rotates through the audio
languages available on the DVD.

\0
Foo

Notes

- You cannot switch languages if there is only one language
recorded on the disc.

- Switching the audio language may not be possible with some
titles. In this case, the g mark is displayed.

- For some titles, selection can be made using the DVD menu.
In these cases, press MENU to display the DVD menu screen
and then make your selection.

- When you erase the resume position or replace a disc, the DVD
player returns to the automatic setting in the setting menu (page
57).

l Changing Audio Type

For enjoyment of karaoke or similar lormat Video CBS, CBS and
MPBS, it is possible to select stereo audio, or either right or left
channel mono depending on the requirements of the source.
Press AUDIO repeatedly during playback to switch the audio
type.

Audio output changes from [1/L] (Left channel) to

[2/R] (Flight channel) to [Stereo].

Note

With karaoke and other discs, set the appropriate audio type for
singing and accompaniment after referring to information on the disc
jacket or accompanying material.

AUDIO- -SUBTTL

-CLEAR

Selecting a Subtitle Language
(Multi-Language Subtitles)

You can select a desired subtitle language with DVDs that
have subtitle data in multiple languages recorded on them.

Press SUBTTL (subtitle) repeatedly
during playback.

Pressing SUBTTL once displays the
currently selected subtitle language.
Subsequent presses rotates through the
subtitle languages available on the DVD.

a?

mm. mm.

swam

Notes

The subtitle language cannot be switched it the subtitle language
is not recorded, or if only one language is recorded.

Switching the subtitle language may not be possible with some
discs. In this case, the % mark will be displayed.

To clear subtitles during playback, press SUBTTL and then press
CLEAR, or press SUBTTL until [Off] appears.

For some discs, subtitle language selection can be made using
the menu on the DVD. in this case, press MENU to display the
DVD menu screen and then make your selection.

When you erase the resume position or replace a disc, the DVD
player returns to the automatic setting in the setting menu (page
58).

39

Page 71

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service. Refer also to the respective
instruction manuals of the connected components and TV.

search, or the frame
number is not displayed.

set to [On].

You can only use frame search with DVD7
Video discs.

Frame numbers are only displayed with
DVD7Video discs, and only when the disc
is paused or during frame advance/
reverse.

setup screen.

Symptoms Causes Remedies Pages
The DVD Player doesnt - The mains lead is disconnected. - Check the connection of the mains lead. 20
switch on. - The main power is set to OFF. - Turn on the main power. 20
- There is external noise in the computer - Switch off the main power, then switch it 7
circuits of the DVD Player. on again. If not recovered, disconnect the
mains lead, then connect it again.

The disc tray comes back - The disc is not placed properly on the disc - Use the disc tray guide to align the disc. 25

out automatically, shortly tray.

after the disc tray is closed. - The disc is dirty or warped. - Refer to Notes on Discs. 6

- Region number does not conform with this - If the region number on the disc does not 5
unit. match the number on the player, the disc
cannot be used.

The DVD Player does not - No disc is inserted. - Insert a disc. (Check that DVD, VCD, 25

start playback. or CD" is lit in the DVD Player's display.)

- An unplayable disc is inserted. - Check the playable discs. 6

- The disc is placed upside down. - Place the disc with the playback side 25
down.

- The disc is not placed within the disc tray - Place the disc within the proper guide on 25

guide. the disc tray.

- The disc is dirty. - Eject the disc and clean it. 6

- The parental lock function is activated. - Deactivate the parental lock function or 6162
change the parental lock level.

The playback picture is - The disc is dirty. - Eject the disc and clean it. 6

occasionally distorted - It is in fast fonrvard or fast reverse - Sometimes a small amount of picture 7
playback. distortion may appear. This is not a

malfunction.
.. Brightness is unstable or - Copy protection is activated. - Connect the DVD Player directly to the 15717
g noise is visible on the TV. Avoid connecting the DVD Player to
E playback picture. the TV through a VCR.
n The picture from the DVD - The TV is not set to receive the output - Set the TV to the DVD Player's input. 7
3 Player doesnt appear on signals from the DVD Player.

the TV screen. - The DVD Player is not properly - Check the connections to the DVD 1517
connected. Player.

Settings are canceled. - When the power is turned off by power - Before unplugging the power cord, press 7
failure or by unplugging the power cord, STANDBY/ON and check that 7OFF7"
settings will be canceled. disappears in the display.

Playback doesnt follow the - The DVD Player is in repeat playback - Resume normal playback. 32736

course of the discs mode, memory playback mode, or

programs. random playback mode, etc.

The buttons on the remote - Power supply fluctuations or other - Switch off the main power, then switch it 20

controller and DVD Player abnormalities such as static electricity on again. If not recovered. disconnect the

do not operate. may interrupt correct operation. mains lead, then connect it again.

% mark appears on - The selected function does not operate for 7 7

screen. that disc.

& mark appears on - The operation is prohibited by the player. 7 7

screen.

When making changes in - There is a SACD, Video CD, CD or MP3 - The setting will be effective the next time 47

the Setup screen menus, loaded in the player and the setting that a DVD is loaded.

@ is displayed. was changed only applies to DVD
performance.

Some settings in the Setup - The [Setup Menu Mode] is set to [Basic]. - Set the [Setup Menu Mode] to [Expert]. 47

Menu do not appear.

Can't perform frame - Check that the [Frame Search] option is - Set the [Frame Search] to [On] in the 53

71
