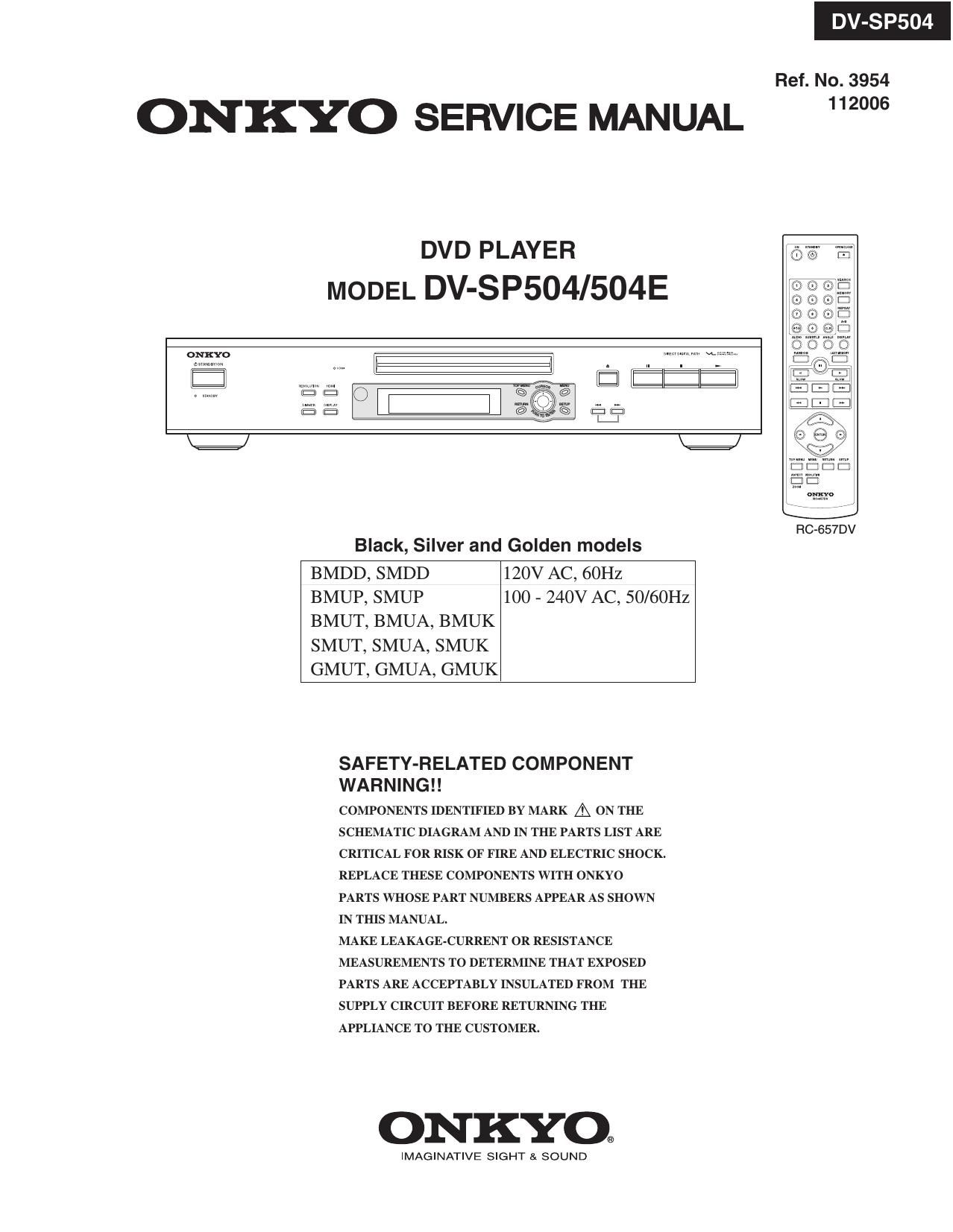

ONKYO SERVICE MANUAL
DVD PLAYER
MODEL DV-SP504/504E
Black, Silver and Golden models
BMDD, SMDD
BMUP, SMUP
BMUT, BMUA, BMUK
SMUT, SMUA, SMUK
GMUT, GMUA, GMUK
120V AC, 60Hz
100 - 240V AC, 50/60Hz
SAFETY-RELATED COMPONENT
WARNING
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO.
IMAGINATIVE SIGHT 8. SOUND
DV-SP504
Ref. No. 3954
112006
RC-657DV
