Onkyo DVSP 501 Service Manual

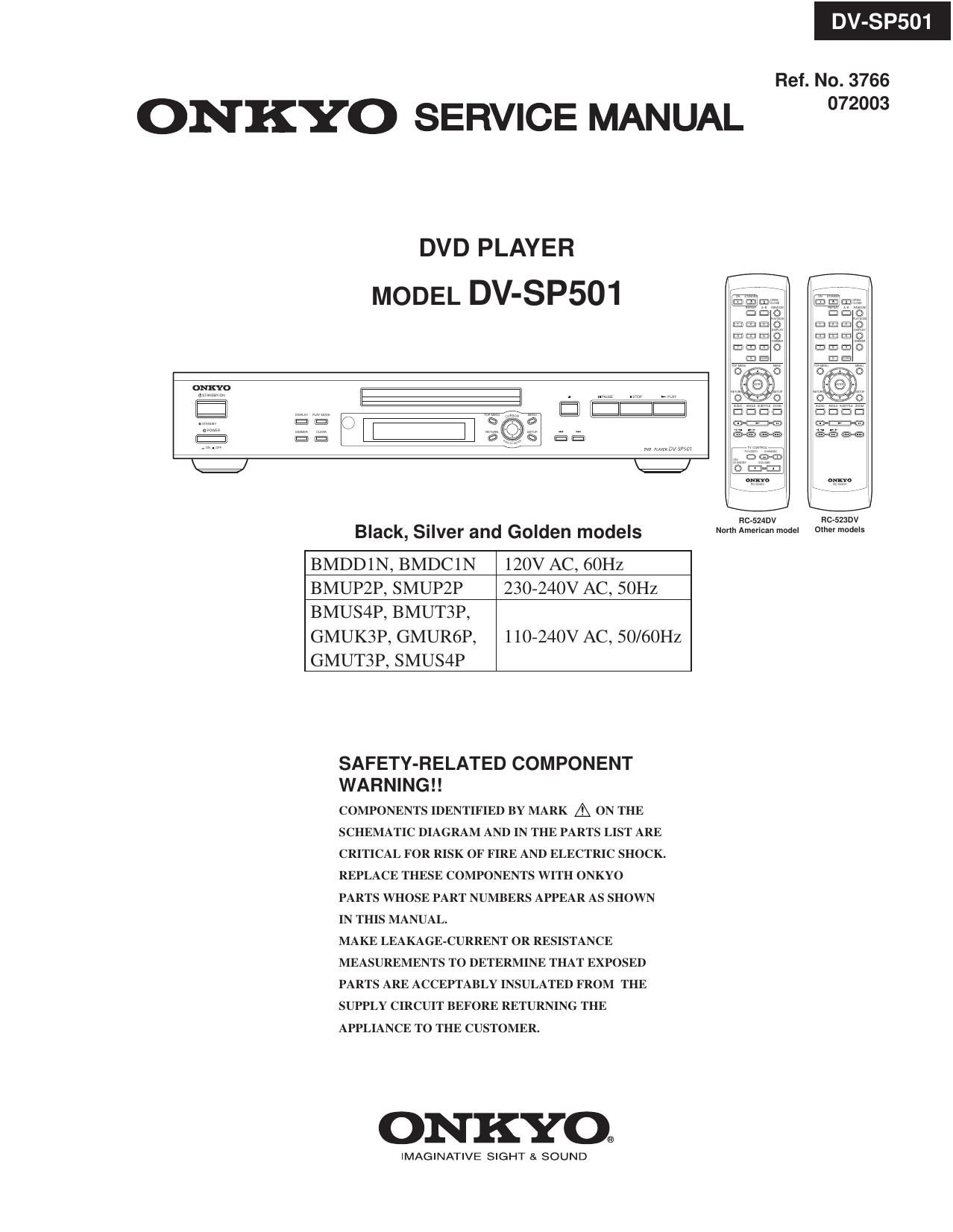

Page 1

DV-SP501

Ref. No. 3766

ONKYO SERVICE MANUAL °72°°3

DVD PLAYER
MODEL DV-SP501

E] [Q Qtélé
.EJ [é] [Q]
\.=/

Black, Silver and Golden models

BMDDlN,BMDC1N

120V AC, 60Hz

BMUPZP, SMUPZP

230-240V AC, SOHZ

BMUS4P, BMUT3P,
GMUKSP, GMUR6P,
GMUT3P, SMUS4P

l 10-240V AC, 50/60HZ

SAFETY-RELATED COMPONENT

WARNING

COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN

IN THIS MANUAL.

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO.

IMAGINATIVE SIGHT & SOUND

fic-SMDV fiC-SZJDV
Norm Amevlcan model mher models

Page 2

SPECIFICATIONS

Video system

North American model: Standard NTSC
Other models: PAL/AUTO

North American model: 1, European model: 2,

Region code Australian and South American models: 4,
Asian model: 3, Chinese model: 6
Laser Semiconductor laser, wavelength 650 nm (DVD), 780 nm (CD)

DVD linear audio
Frequency response

4 H2920 kHz @ 48 kHz sampling late
4 H2944 kHz @ 96 kHz sampling rate

CD audio 4 H2920 kHz
Signal-to-noise ratio (digital audio) 106 dB
Audio dynamic range (digital audio) 96 dB
Harmonic distortion (digital audio) 0.008%

Wow and Futter

Below measurable level (:0.001% (W. PEAK) or less)

Temperature 5°to 3500 (41° F to 950 F)
Operating conditions
Installation Install horizontally
COMPONENT VIDEO Y: 1.0 V (p-p), 75 ohm, negative sync, FICA/phone x1
(Other than European _
PE/PFI. 0.7 V (p-p), 75 ohm
models)
AV CONNECTOR (Euro-

Video OUIPUIS pean model only)

0.7 V (p-p), 75 ohm, Scart x1

5 VIDEO (S-Video)

Y: 1.0V (p-p), 75 ohm , negative sync, 4-pin mini DIN x1
0: 0.286 V (p-p), 75 ohm

VIDEO (composite video)

1.0 V (p-p), 75 ohm , negative sync, RCA/phono x1

OPTICAL

-22.5 dBm, optical connector x1

Audio outputs COAXIAL

0.5 V (p-p), 75 ohm , FICA/phone x1

ANALOG

2.0 V rms, 470 , FICA/phone x1

Power supply

North American model: 120 V AC, 60 Hz
Other models: 100 - 240V AC, 50/60 Hz

Power consumption

15W

General Power consumption in

Standby mode

North American model: 1.6 W
Other models: 2.5 W

Weight

3.3 kg (7.3 lbs.)

Dimensions (W x H x D)

435 X 81 X 307 mm (17-1/8" X 3-3/16" X 12-1/16")

Specifications and features subject to change without notice.
