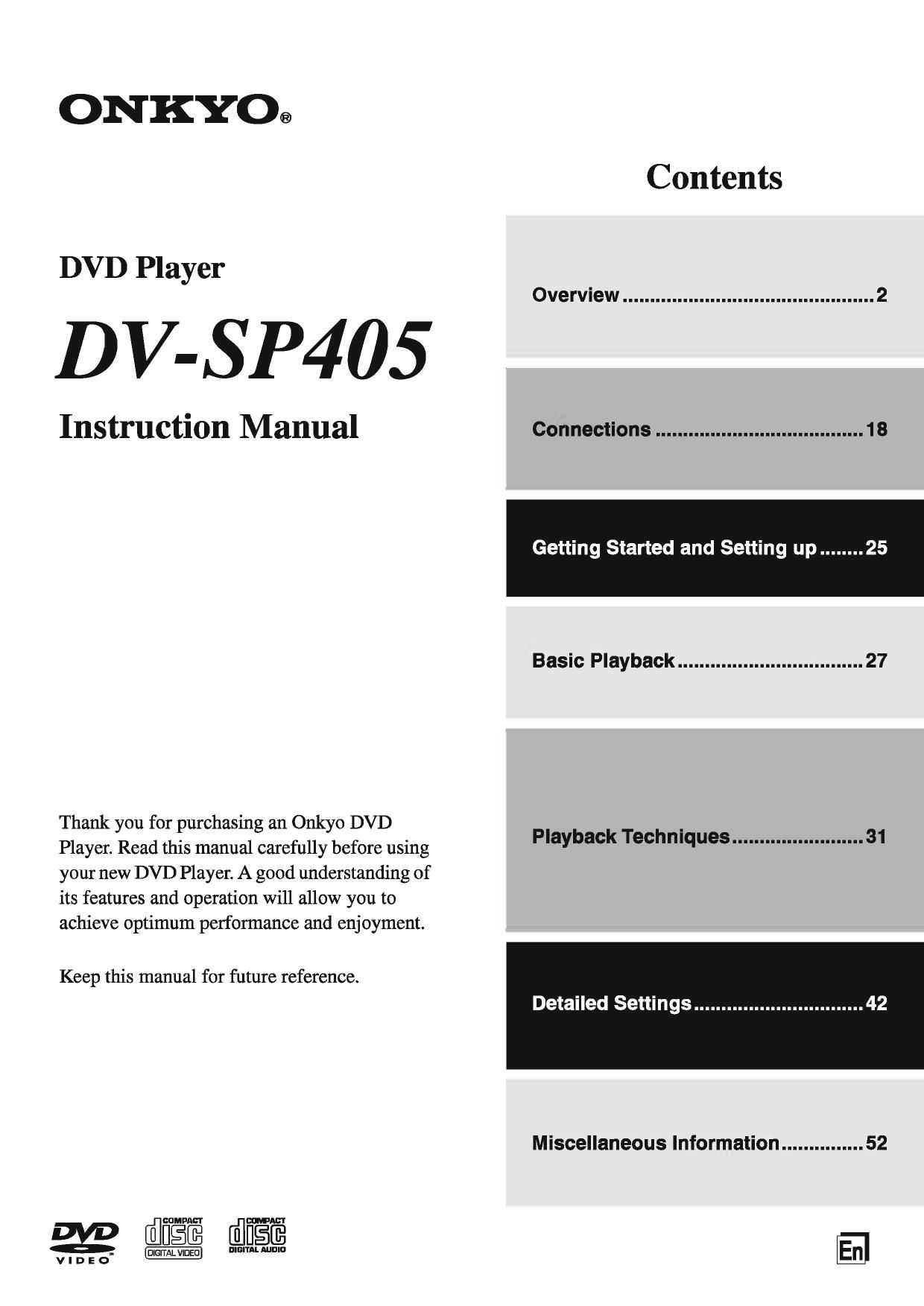

ONKYO®

Contents
DVD Player
Overview .............................................. 2
Instruction Manual connections ...................................... 13

Getting Started and Setting up ........ 25

Basic Playback .................................. 27

Thank you for purchasing an Onkyo DVD
Player. Read this manual carefully before using
your new DVD Player. A good understanding of
its features and operation will allow you to
achieve optimum performance and enjoyment.

Playback Techniques ........................ 31

Keep this manual for future reference.

Detailed Settings ............................... 42

Miscellaneous Information ............... 52

Lie flee alien}

.. minim. Aunw
V l D E 0 En
