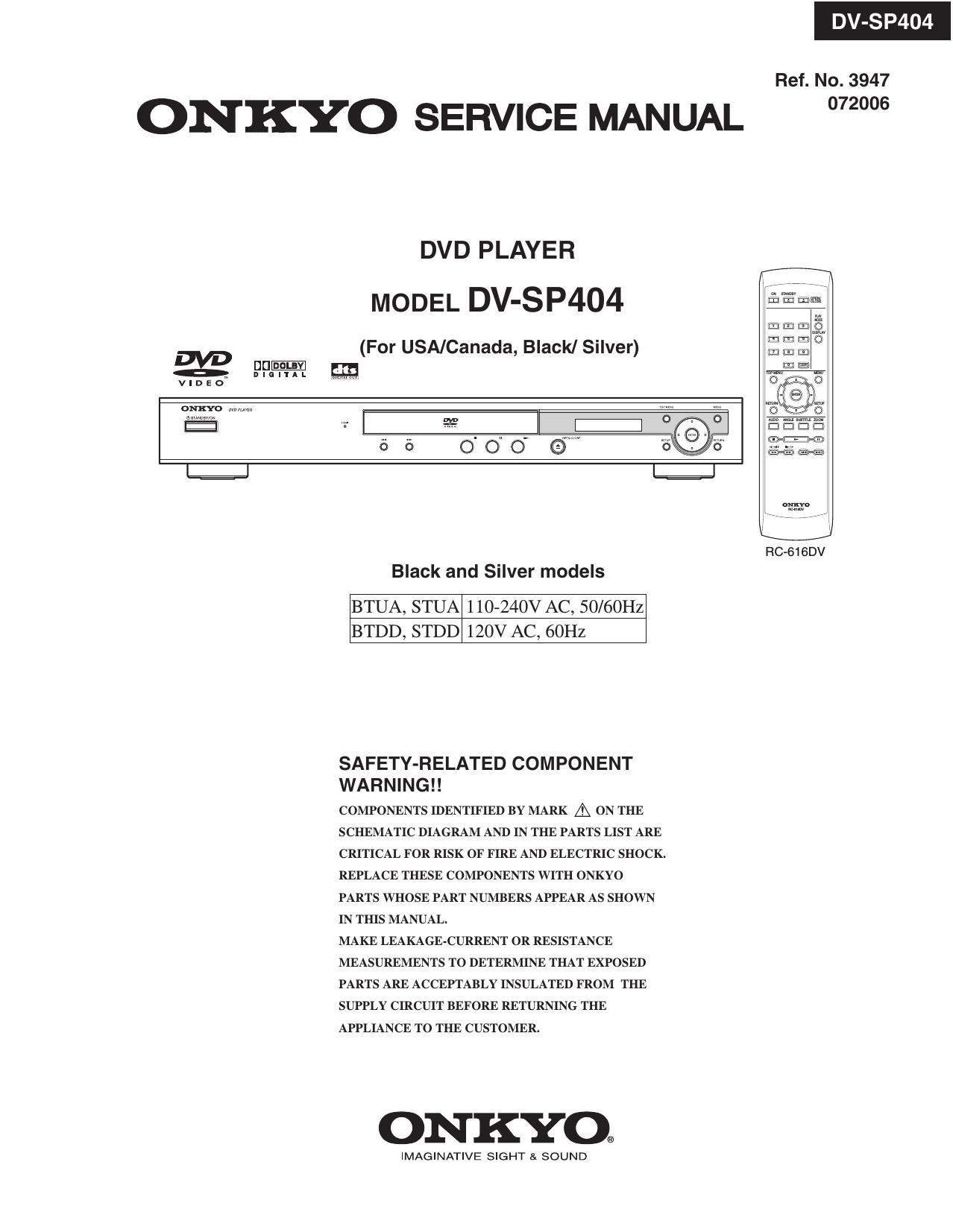

Onkyo DVSP 404 Service Manual
This is the 61 pages manual for Onkyo DVSP 404 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo DVSP 404 Service Manual (Ocr-read)
Page 1
A1-1 CAUTION THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS SERVICE MANUAL CARE- FULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM. PREPARATION OF SERVICING The laser diode used for a pickup head may be destroyed with external static electricity. Moreover, even if it is operating normally after repair, when static electricity discharge is received at the time of repair, the life of the product may be shortened. Please perform the following measure against static electricity, be careful of destruction of a laser diode at the time of repair. - Place the unit on a workstation equipped to protect against static electricity, such as conductive mat. - Soldering iron with ground wire or ceramic type is used. - A worker needs to use a ground conductive wrist strap for body.
Page 2
A1-2 IMPORTANT SERVICE SAFETY INFORMATION Safety precautions to be followed during servicing: 1. 2.Parts marked with an are critical parts for safety. Replace only with the one described in the parts list. Before returning the DVD product to the customer, make the appropriate leakage current check or resistance measurements to ensure that exposed parts are properly insulated from the supply circuit. A leakage current check is recommended for this unit. Plug the AC line cord directly into a 120V 60Hz AC outlet (do not use an isolation transformer for this check). Use a leakage current tester (Fig. 1) or a metering system which complies with Underwriters Laboratories (UL 1492). Measure for current from all exposed metal parts of the cabinet to a known earth ground: particularly, any exposed metal part having a return path to the chassis. Any current measured must not exceed 0.5mA. Any measurement not within the limits outlined above are indicative of a potential shock hazard and corrective action must be taken before returning the unit to the customer. KNOWN EARTH GROUND 1.5K ohm 0.15 µF(Reading should not be above 0.5mA) Leakage Current Tester TEST PROBE Test all exposed metal surfaces PRODUCT UNDER TEST 2-Blade polarized type cord set Fig. 1 AC Leakage Test
