Extracted text from Onkyo DVSP 302 Owners Manual (Ocr-read)

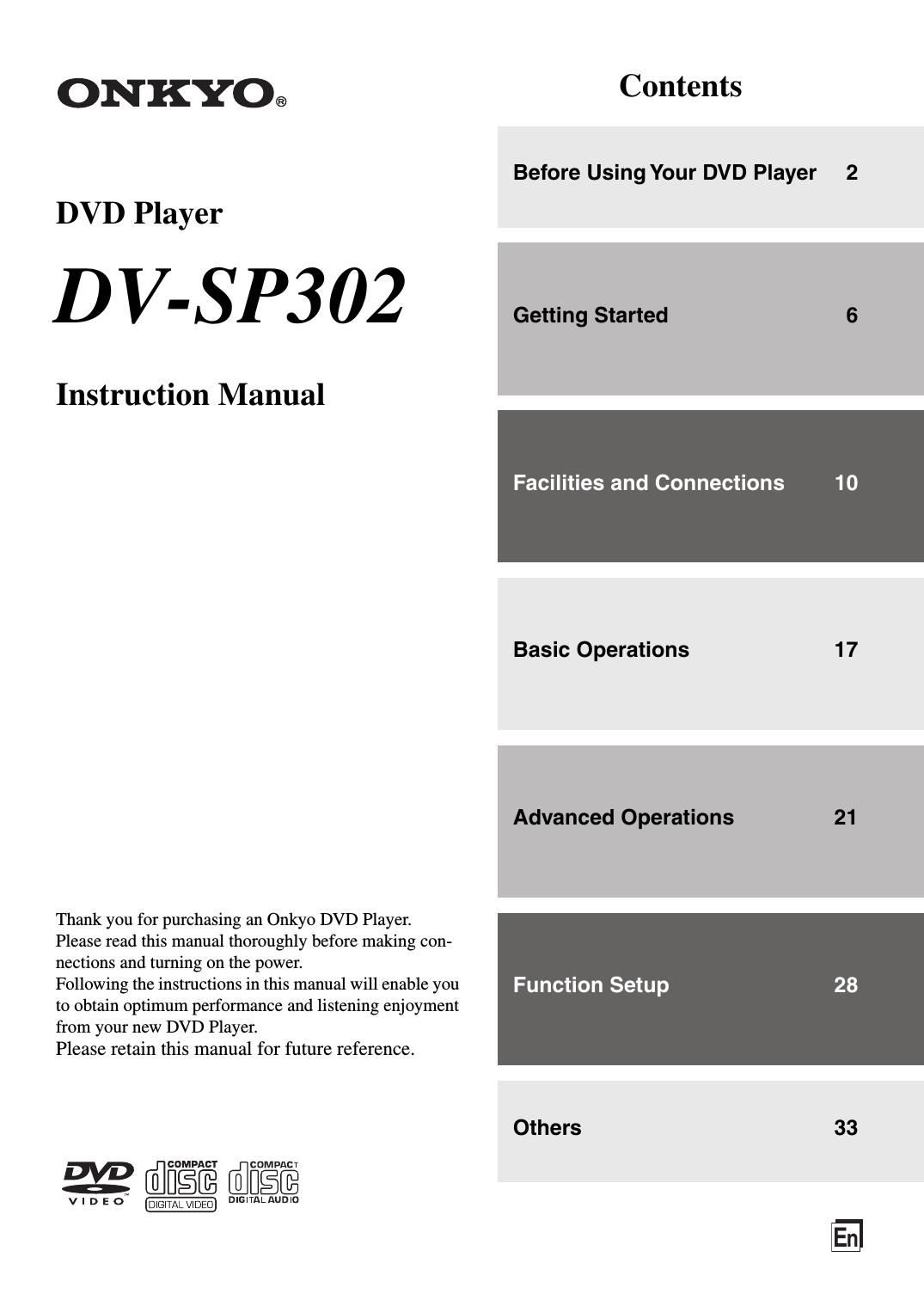

Page 1
2 Important Safeguards 1. Read Instructions – All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions – The safety and operating instructions should be retained for future reference. 3. Heed Warnings – All warnings on the appliance and in the operating instructions should be adhered to. 4. Follow Instructions – All operating and use instructions should be followed. 5. Cleaning – Unplug the appliance from the wall outlet before cleaning. The appliance should be cleaned only as recommended by the manufacturer. 6. Attachments – Do not use attachments not recommended by the appliance manufacturer as they may cause hazards. 7. Water and Moisture – Do not use the appliance near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. 8. Accessories – Do not place the appliance on an unstable cart, stand, tripod, bracket, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the appliance. Any mounting of the appliance should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufacturer. 9. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 10. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the appliance and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface. The appliance should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. There should be free space of at least 5 cm (2 in.) and an opening behind the appliance. 11. Power Sources – The appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. 12. Grounding or Polarization – The appliance may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. 13. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance. 14. Lightning – For added protection for the appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the appliance due to lightning and power-line surges. 15. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 16. Object and Liquid Entry – Never push objects of any kind into the appliance through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance. 17. Servicing – Do not attempt to service the appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 18. Damage Requiring Service – Unplug the appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen into the appliance, C. If the appliance has been exposed to rain or water, D. If the appliance does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to its normal operation, E. If the appliance has been dropped or damaged in any way, and F. When the appliance exhibits a distinct change in performance – this indicates a need for service. 19. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 20. Safety Check – Upon completion of any service or repairs to the appliance, ask the service technician to perform safety checks to determine that the appliance is in proper operation condition. 21. Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer. 22. Heat – The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. Liquid Hazards – The appliance should not be exposed to dripping or splashing and no objects filled with liquids, such as vases should be placed on the appliance. WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNINGRISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AV I S PORTABLE CART WARNING S3125A
Page 2
3 Precautions For U.S. model The laser is covered by a housing which prevents exposure during operation or maintenance. However, this product is classified as a Laser Product by CDRH (Center for Devices and Radiological Health) which is a department of the Food and Drug Administration. According to their regulations 21 CFR section 1002.30, all manufacturers who sell Laser Products must maintain records of written communications between the manufacturer, dealers and customers concerning radiation safety. If you have any complaints about instructions or explanations affecting the use of this product, please feel free to write to the address on the back page of this manual. When you write us, please include the model number and serial number of your unit. In compliance with Federal Regulations, the certification, identification and the period of manufacture are indicated on the rear panel. FCC INFORMATION FOR USER CAUTION: User changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. For Canadian model This class B digital apparatus complies with Canadian ICES-003. For models having a power cord with a polarized plug: CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. Modèle pour les Canadien Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Sur les modèles dont la fiche est polarisee: ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND. This unit contains a semiconductor laser system and is classified as a CLASS 1 LASER PRODUCT. So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit. To prevent being exposed to the laser beam, do not try to open the enclosure. DANGER: VISIBLE LASER AND INVISIBLE RADIATION WHEN OPEN AND INTERLOCK FAILED OR DEFEATED. DO NOT STARE INTO THE LASER BEAM. CAUTION: THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.The label below is applied on the rear panel except for USA and Canadian models. 1. This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet. 2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel.
Page 3
4 Precautions 1. Regional Restriction Codes (Region Number) Regional restriction codes are built into DVD Players and DVD video media for each sales region. If the regional code of the DVD Player does not match one of the regional codes on the DVD video, playback is not possible. The regional number can be found on the rear panel of the DVD Player (e.g., for Region 1). 2. About This Manual This manual explains the basic procedures for operating the DVD Player. Some DVD video discs do not support the full potential of the DVD technology. Your DVD Player may therefore not respond to all operating commands. Refer to instruction notes on discs. 3. Recording Copyright Recording of copyrighted material for other than personal use is illegal without permission of the copyright holder. 4. Power WARNING BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where the unit will be used meets the required voltage (e.g., AC 120 V, 60 Hz or AC 100-240 V, 50/60 Hz) written on the rear panel. 5. Do Not Touch the Unit with Wet Hands Do not handle the unit or power cord when your hands are wet or damp. If water or any other liquid enters the case, take the unit to an authorized service center for inspection. 6. Location of the Unit - Place the unit in a well ventilated location. Take special care to provide plenty of ventilation on all sides of the unit especially when it is placed in an audio rack. If ventilation is blocked, the unit may overheat and malfunction. - Do not expose the unit to direct sunlight or heating units as the units internal temperature may rise and shorten the life of the pickup. - Avoid damp and dusty places and places directly affected by vibrations from the speakers. In particular, avoid placing the unit on or above one of the speakers. - Be sure the unit is placed in a horizontal position. Never place it on its side or on a slanted surface as it may malfunction. - When you place the unit near a TV, radio, or VCR, the playback picture may become poor and the sound may be distorted. In this case, place the unit away from the TV, radio, or VCR. 7. Care From time to time you should wipe the front and rear panels and the cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a weak solution of mild detergent and water, wring it out, and wipe off the dirt. Following this, dry immediately with a clean cloth. Do not use rough material, thinners, alcohol or other chemical solvents or cloths since these could damage the finish or remove the panel lettering. 8. Notes on Handling When shipping the unit, use the original shipping carton and packing materials. For maximum protection, repack the unit as it was originally packed at the factory. - Do not use volatile liquids, such as insect spray, near the unit. Do not leave rubber or plastic products in contact with the unit for a long time. They will leave marks on the finish. - The top and rear panels of the unit may become warm after a long period of use. This is not a malfunction.- When the unit is not in use, be sure to remove the disc and turn off the power. - If you do not use the unit for a long period, the unit may not function properly in the future. Turn on and use the unit occasionally. 9. To Obtain a Clear Picture The unit is a high technology, precision device. If the optical pickup lens and disc drive parts are dirty or worn, the picture quality becomes poor. To obtain a clear picture, we recommend regular inspection and maintenance (cleaning or parts replacement) every 1,000 hours of use depending on the operating environment. For details, contact your nearest dealer. 10.Notes on Moisture Condensation Moisture condensation damages the unit. Please read the following carefully. - What is moisture condensation? Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pickup lens inside the unit, one of the most crucial internal parts of the unit. - Moisture condensation occurs in the following cases. – When you bring the unit directly from a cold place to a warm place. – When you use the unit in a room where you just turned on the heater, or a place where the cold air flow from the air conditioner directly hits the unit. – In summer, when you use the unit in a hot and humid place just after you move the unit from an air conditioned room. – When you use the unit in a humid place. - Do not use the unit when moisture condensation may occur. If you use the unit in such a situation, it may damage discs and internal parts. Remove the disc, connect the power cord of the unit to the wall outlet, turn on the unit, and leave it for two or three hours. After a few hours, the unit will have warmed up and evaporated any moisture. Keep the unit connected to the wall outlet and moisture condensation will seldom occur. 1
Page 24
25 The chapters or tracks of the disc are played in random order. Press RANDOM while stopped.RANDOM indicator lights up. To cancel random play Press RANDOM while stopped so that RANDOM indicator goes off. Each time you press RANDOM, random play will be on and off. Notes- You cannot play DVDs in random order. - When playing a PBC compatible Video CD with PBC on, you cannot use this function. To use this function, turn PBC off by pressing TOP MENU first. - In Random play, Reverse skip is not possible. You can only skip forward.Desired disc or title can be played back repeatedly. Press REPEAT repeatedly.Each time you press REPEAT, the repeat option changes. At the time of DVD playback→CHAPTER REPEAT ON Repeats the current chapter. ↓ TITLE REPEAT ON Repeats the current title. ↓ REPEAT OFF Resumes normal playback. At the time of Video CD/CD playback→REPEAT ONE Repeats the current track. ↓ REPEAT ALL Repeats the entire disc. ↓ REPEAT OFF Resumes normal playback. NoteWith DVD, the REPEAT button functions only for playback. To cancel repeat play Press REPEAT so that REPEAT indicator goes off. Notes- When playing a PBC compatible Video CD with PBC on, you cannot use this function. To use this function, turn PBC off by pressing TOP MENU first. - With some DVDs, repeat playback may not be possible. - For playing MP3, WMA or JPEG files repeatedly, see page 20. To repeat program play During program playback, press the REPEAT button on the remote controller. Each press of the button switches the mode. →REPEAT ONE REPEAT ALL REPEAT OFF Random Play REPEAT RANDOM VCD CD MP3 Repeat Play VCD CD DVD
Page 33
34 Troubleshooting Remote Controller Symptoms Causes Remedies Pages The buttons on the DVD Player operate but the buttons on the remote controller do not operate.- No batteries are inserted in the remote controller. - The batteries are worn out. - The remote controller is not pointed at the remote sensor of the DVD Player. - The remote controller is too far from the DVD Player.- Insert new batteries. - Replace with new batteries. - Point the remote controller at the remote sensor of the DVD Player. - Operate the remote controller within 5 m (16 feet).13 13 13 13 Because the unit contains a microcomputer to provide advanced functions, it may malfunction due to external noise or static electricity. If this happens, press the POWER switch on the unit and then press it again after about five seconds. In case you forgot the password Set the initial setup to the factory setup with the following procedure. 1. Press Open/Close 0 to open the disc tray. 2. Press and hold 1 button on the DV-SP302 more than 3 seconds. 3. While holding 1 button, press STANDBY/ON button on the remote controller simultaneously. 4. Press POWER to switch off the main power. Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the units malfunction. Before you record important data, make sure that the material will be recorded correctly.
