Onkyo DVSP 301 Service Manual
This is the 56 pages manual for Onkyo DVSP 301 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo DVSP 301 Service Manual (Ocr-read)
Page 1

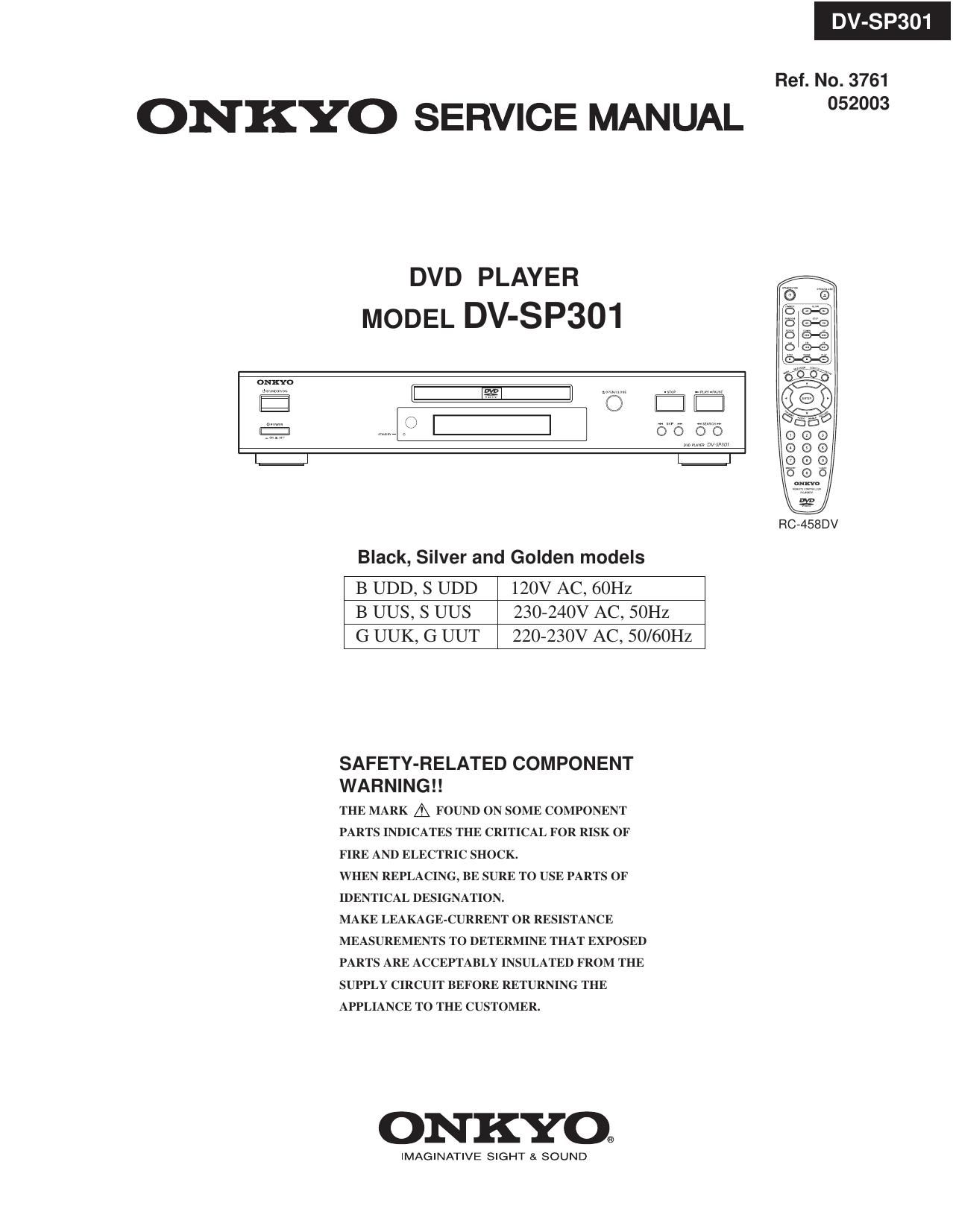

ONKYO SERVICE MANUAL
DVD PLAYER
MODEL DV-SP301
Black, Silver and Golden models
B UDD, S UDD 120V AC, 60Hz
B UUS, S UUS 230-240V AC, SOHz
G UUK, G UUT 220-230V AC, 50/60Hz
SAFETY-RELATED COMPONENT
WA R NI N G ! !
THE MARK A FOUND ON SOME COMPONENT
PARTS INDICATES THE CRITICAL FOR RISK OF
FIRE AND ELECTRIC SHOCK.
WHEN REPLACING, BE SURE TO USE PARTS OF
IDENTICAL DESIGNATION.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT 8 SOUND
DV-SP301
Ref. No. 3761
052003
RC-458DV
Page 2
SPECIFICATIONS
DVD Player
Power supply AC120 V, 60 Hz (North America models)
AC 1 10-240V, 50/60Hz (Other models)
Power consumption 16 W
Weight 8.2 lbs
External dimensions 17-1/8 x 3-7/8" x 12-11/16" (W/H/D)
Signal system NTSC (North America models)
PAL/NTSC (Other models)
Regional restriction code Region 1 (North America)
(region number) Region 4 (Central and South America and Australia)
Frequency range (digital audio) 48 kHz sampling 4 Hz to 22 kHz
(DVD linear sound) 96 kHz sampling 4 Hz to 44 kHz
Signal-to-noise ratio (digital audio) More than 90 dB
Audio dynamic range (digital audio) More than 95 dB
Harmonic distortion (digital audio) Less than 0.005 %
Wow and flutter Below measurable level
Operating conditions Temperature: 5°C to 35°C (41°F to 95°F)
Operation status: Horizontal
Outputs
Video output 10 V (p-p), 75 W, negative sync, pin jack X 1
S-video output (Y) 1.0 V (p-p), 75 W, negative sync., Mini DIN 4-pin X 1
(C) 0.286 V (p-p), 75 W
Component video output (Y) 1.0 V (p-p), 75 W, negative sync, pinjack x 1
(PB)/(PR) 0.7 V (p-p), 75 W, pinjack x 2
Audio output (digital output Optical) Optical connector X 1
Audio output (digital output Coaxial) 0.5 V (p-p), 75 W, pinjack x 1
Audio output (2-Channel Audio) 2.0 V (rms), 320 W, pinjack (L, R) x 1
Specifications and features are subject to change without notice.
Page 25
DV-SP301
PRINTED CIRCUIT BOARD VIEW
20: DVD MAIN CIRCUIT PC BOARD
Top pattern and top silk
Page 32
IC TERMINAL DESCRIPTION
I023: FAN8082 BI-DIRECTIONAL DC MOTOR DRIVER
DV-SP301
PIN
NUMBER PIN NAME MAIN FUNCTION I/O
1 GND GROUND -
2 V01 OUTPUTI O
3 VCTL MOTOR SPEED CONTROL I
4 VINl INPUTl I
5 VIN2 INPUT2 I
6 SVCC SUPPLY VOLTAGE(SIGNAL) »
7 PVCC SUPPLY VOLTAGE(POWER) -
8 V02 OUTPUT2 O
Page 55
PACKING PARTS LIST
1: Safety part
REF. NO. PART NO. PART NAME DESCRIPTION
50 55683300 Carton Box
55688200 Carton Box
55410420 Carton Box
55410470 Carton Box
55688100 Carton Box
55688310 Carton Box
60 55683310 Pad Right
70 55683320 Pad Left
80 55683330 Instruction Manual
55706710 Instruction Manual
90 55683340 POS Label <3 UDD>
55410490 POS Label
55688710 POS Label
55688320 POS Label
55688720 POS Label
110 55176530 Audio Cable Stereo 1500MM BK
120 55169520 Sheet S20MM x 820MM
130 55030950 PE Bag 45MM x 80MM
140 55170650 PE Bag 260MM x 410MM
150 20194780 Cable Tie
160 20715540 PE Bag 70MM x 250MM
170 55511980 Warranty Card
180 5520874A Cushion SOMM x 35MM
190 55186190 Coaxial Cable lOOOMM CC
200 55167260 Remote Controller DV-S353 W/O Batten!
210 3010054 Battery UM3 x 2
220 55236070 Conversion plug
230 55743520 RI Cable Audio Cable MONO XOOMM
240 55429850 Cushion 160MM x 29MM 29MM
250 29110148 PP tape
: Black color model
: Silver color model
