Onkyo DVSP 300 Service Manual

Page 1

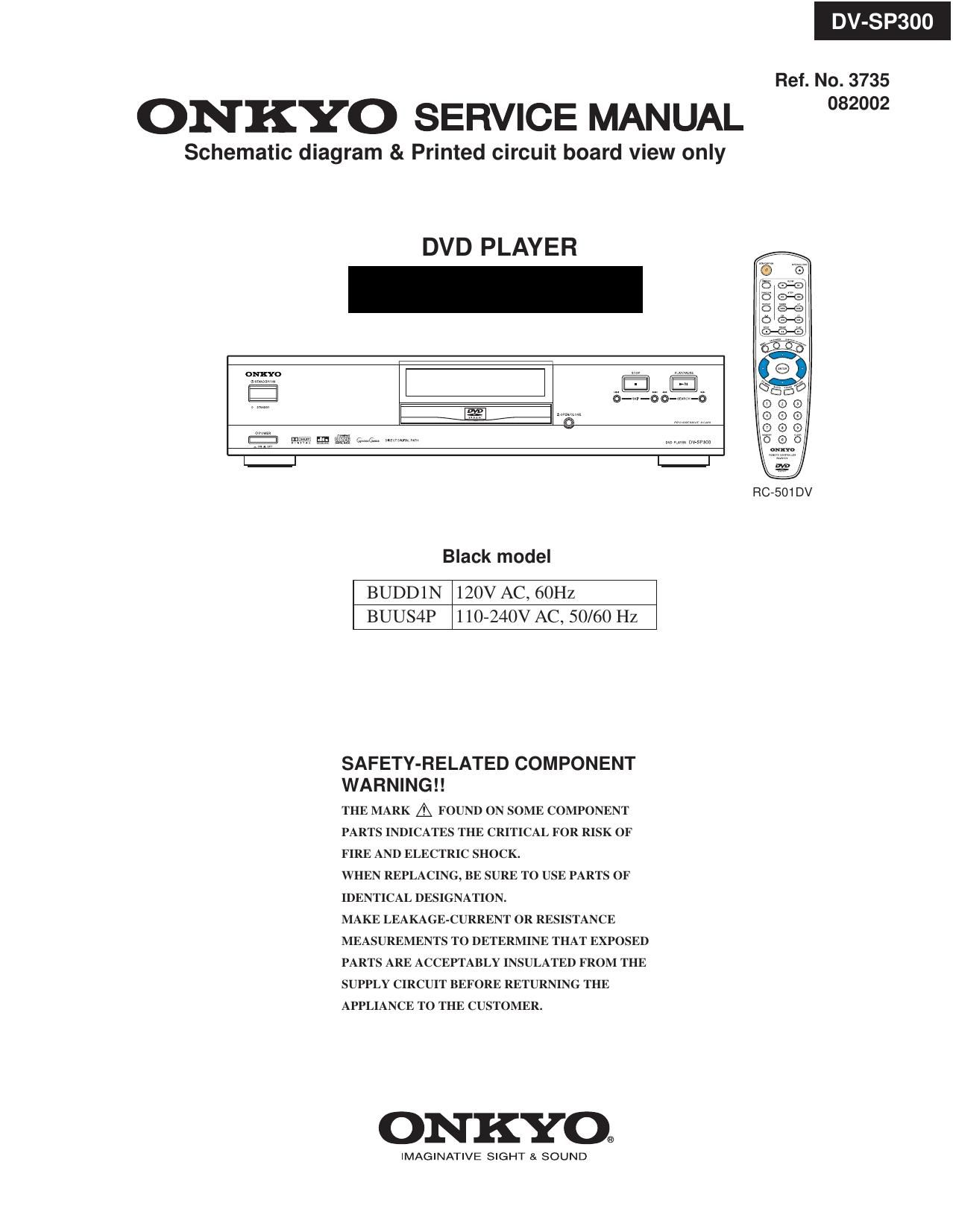

DV-SP300

Ref. No. 3735

ONKYO SERVICE MANUAL 2°

Schematic diagram & Printed circuit board view only

DVD PLAYER

RC-501DV

Black model

BUDDlN 120V AC, 60Hz
BUUS4P 110-240V AC, 50/60 Hz

SAFETY-RELATED COMPONENT
WARNING! !

THE MARK A FOUND ON SOME COMPONENT
PARTS INDICATES THE CRITICAL FOR RISK ()F
FIRE AND ELECTRIC SHOCK.

WHEN REPLACING, BE SURE TO USE PARTS OF
IDENTICAL DESIGNATION.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT & SOUND

Page 2

SPECIFICATIONS

DVD Player

Power supply

Power consumption
Weight
External dimensions

Signal system

Regional restriction code
(region number)

Frequency range (digital audio)
(DVD linear sound)

Signal-to-noise ratio (digital audio)
Audio dynamic range (digital audio)
Harmonic distortion (digital audio)
Wow and flutter

Operating conditions

Outputs

Video output

S-Video output
Component Video output

Audio output (digital output Optical)

Audio output (digital output Coaxial)

Audio output (2-Channel Audio)

AC 120V, 60 Hz (North America models)
AC 110-240V, 50/60 Hz (Other models)

16 W
8.2 lbs
17 /x" x 3 7/x" x 12 /m" (W/l-l/D)

NTSC (North America models)
PAL/NTSC (Other models)

Region 1 (North America)
Region 4 (Central and South America and Australia)

48 kHz sampling 4 Hz to 22 kHz
96 kHz sampling 4 Hz to 44 kHz

More than 90 dB

More than 95 dB

Less than 0.005 %
Below measurable level

Temperature: 5°C to 35°C (41° F to 95 °F)
Operation status: Horizontal

1.0 V (p-p), 75 ohm, negative sync ., pinjack x 1

(Y) 1.0 V (p-p), 75 ohm, negative sync, Mini DIN 4-pin1
(C) 0.286V (p-p), 75 ohm

(Y) 1.0 V (p-p), 75 ohm, negative sync, pin jack x l
(PB)/(PR) 0.7V (p-p), 75 ohm pinjack x 2

Optical connector x 1
0.5 V(p-p),75 ohm, pin jack x 1
2.0 V (rms),320 ohm, pinjack (L, R) x 1

Specifications and features are subject to change without notice.
