Onkyo DVSP 300 Owners Manual

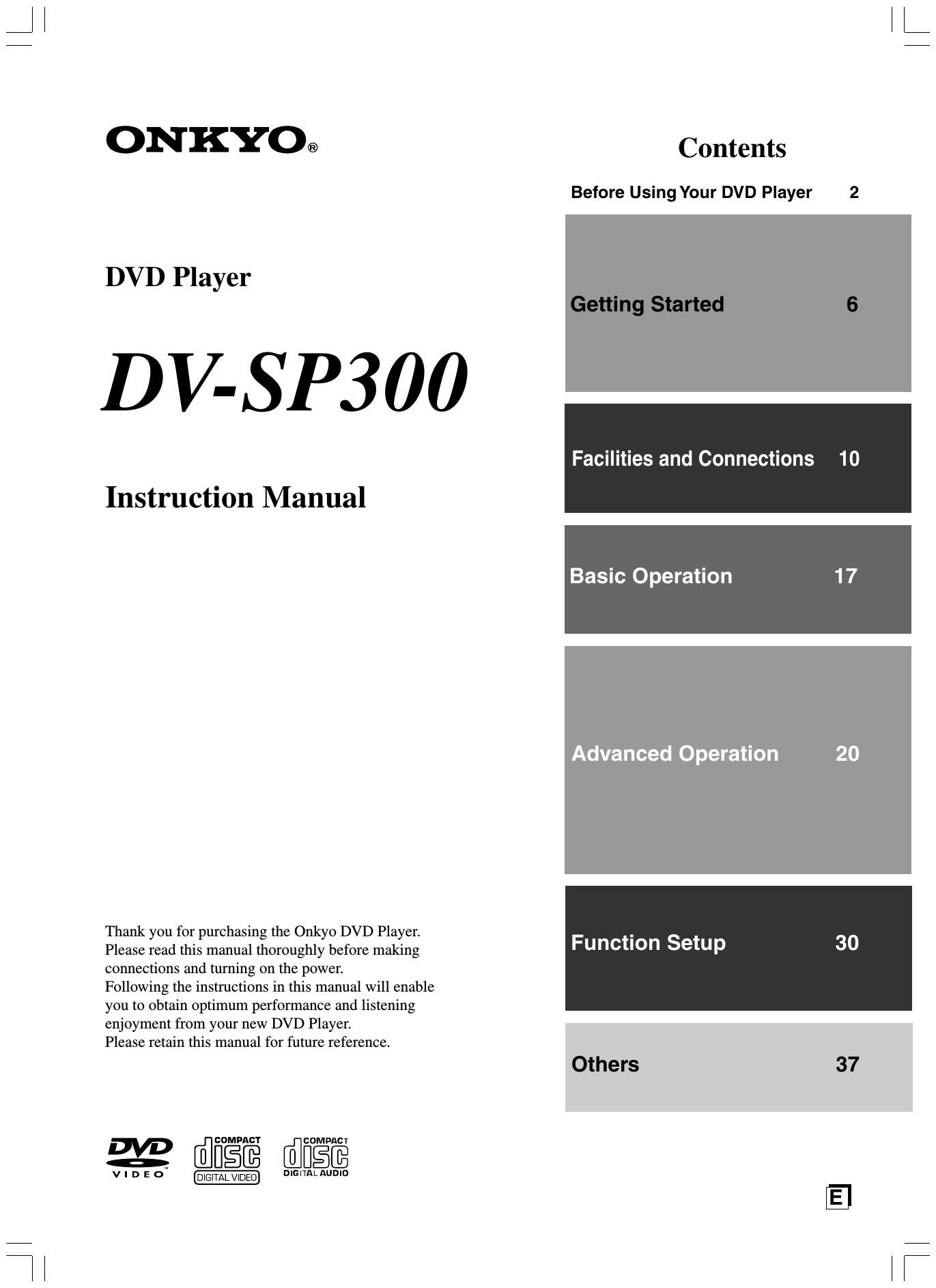

Page 1

ONKYO®

DVD Player

DV-SP3 00

Instruction Manual

Thank you for purchasing the Onkyo DVD Player.
Please read this manual thoroughly before making
connections and turning on the power.

Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new DVD Player.

Please retain this manual for future reference.

22 [fl-EIEIB @figfi

V I D E O _|GiTALViDEO DIGITALAUDID

Contents

Before Using Your DVD Player 2

Facilities and Connections 10

Basic Operation

Advanced Operation

Function Setup

Others 37

Page 2

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN 0R
MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK) NO USERSERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

mama AVIS
RISK OF ELECTRIC SHOCK RISOUE DE CHOC ELECTRIOUE
DO NOT OPEN NE PAS OUVRIR
triangle, is intended to alert the user to the presence of unInsulated
dangerous voltage" within the product's enclosure that may be of

The exclamation point WIthin an equilateral mangle is intended to alert
the user to the presence of important operating and maintenance

The lightning Ilash with arrowhead symbol, within an equilateral

suflicient magnitude to constitute a risk oI electrIc shock to persons.

(servicing) instructions in the IIlerature accompanying the appliance.

Important Safeguards

1.

10.

11.

12.

Read Instructions 7 All the safety and operating
instructions should be read before the appliance is operated.

Retain Instructions 7 The safety and operating instructions
should be retained for future reference.

Heed Warnings 7 All warnings on the appliance and in the
operating instructions should be adhered to

Follow Instructions 7 All operating and use instructions
should be followed

Cleaning 7 Unplug the appliance from the wall outlet before
cleaning. The appliance should be cleaned only as
recommended by the manufacturer.

Attachments 7 Do not use attachments not recommended by
the appliance manufacturer as they may cause hazards.

Water and Moisture 7 Do not use the appliance near water 7
for example, near a bath tub, wash bowl, kitchen sink, or
laundry tub; in a wet basement; or near a swimming pool; and
the like.

Accessories 7 Do not place the appliance on an unstable
cart, stand, tripod, bracket, or table The appliance may fall,
causing serious injury to a child or adult, and serious damage
to the appliance Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer, or sold with the
appliance Any mounting of the
appliance should follow the
manufacturers instructions, and
should use a mounting accessory
recommended by the manufacturer.

/
An appliance and cart combination . B

should be moved with care Quick E
A -

stops, excessive force, and uneven

surfaces may cause the appliance and

cart combination to overturn. 532 .
Ventilation 7 Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of the appliance
and to protect it from overheating, and these openings must not
be blocked or covered The openings should never be blocked
by placing the appliance on a bed, sofa, rug, or other similar
surface. The appliance should not be placed in a built-in
installation such as a bookcase or rack unless proper

ventilation is provided. There should be free space of at least
5 cm (2 in.) and an opening behind the appliance.

Power Sources 7 The appliance should be operated only
from the type of power source indicated on the marking labell
If you are not sure of the type of power supply to your home,
consult your appliance dealer or local power company

Grounding or Polarization 7 The appliance may be
equipped with a polarized alternating current line plug (a plug
having one blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety feature. If you
are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your
electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.

PORTABLE CART WARNING

13

14.

15.

16.

17.

18.

19.

20.

21.

22.

. Power-Cord Protection 7 Power-supply cords should be
routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention
to cords at plugs, convenience receptacles, and the point where
they exit from the appliance.

Lightning 7 For added protection for the appliance during a
lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system This will prevent
damage to the appliance due to lightning and power-line surges.

Overloading 7 Do not overload wall outlets, extension cords,
or integral convenience receptacles as this can result in a risk
of fire or electric shock.

Object and Liquid Entry 7 Never push objects of any kind
into the appliance through openings as they may touch
dangerous voltage points or short-out parts that could result in
a fire or electric shock. Never spill liquid of any kind on the
appliance

Servicing 7 Do not attempt to service the appliance yourself
as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified
service personnel

Damage Requiring Service 7 Unplug the appliance form
the wall outlet and refer servicing to qualified service
personnel under the following conditions:

A. When the power-supply cord or plug is damaged,

B, If liquid has been spilled, or objects have fallen into the
appliance,

C, If the appliance has been exposed to rain or water,

D. If the appliance does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the appliance to its normal operation,

E. If the appliance has been dropped or damaged in any way, and

F. When the appliance exhibits a distinct change in
performance 7 this indicates a need for service

Replacement Parts 7 When replacement parts are required,
be sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics
as the original part. Unauthorized substitutions may result in
fire, electric shock, or other hazards

Safety Check 7 Upon completion of any service or repairs to
the appliance, ask the service technician to perform safety
checks to determine that the appliance is in proper operation
condition.

Wall or Ceiling Mounting 7 The appliance should be
mounted to a wall or ceiling only as recommended by the
manufacturerl

Heat 7 The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat

. Liquid Hazards 7 The appliance should not be exposed to

dripping or splashing and no objects filled with liquids, such as
vases should be placed on the appliance

Page 38

Specifications

l DVD Player

Power supply

AC 120 V, 60 Hz (North America models)
AC 110-240 V, 50/60 Hz (Other models)

Power consumption

16W

Weight

8.2 lbs

External dimensions

17 Vs" x 3 7/x x 12 /16 (W/H/D)

Signal system

NTSC (North America models)
PAL/NTSC (Other models)

Regional restriction code
(region number)

Region 1 (North America)
Region 4 (Central and South America and Australia)

Frequency range (digital audio)
(DVD linear sound)

48 kHz sampling 4 Hz to 22 kHz
96 kHz sampling 4 Hz to 44 kHz

Signal-to-noise ratio (digital audio)

More than 90 dB

Audio dynamic range (digital audio)

More than 95 dB

Harmonic distortion (digital audio)

Less than 0.005 %

Wow and flutter

Below measurable level

Operating conditions

Temperature: 5°C to 35°C (41°F to 95°F)
Operation status: Horizontal

l Outputs

Video output

10 V (p-p), 75 9, negative sync., pin jack X 1

S-video output

(Y) 1.0 V (p-p), 75 9, negative sync., Mini DIN 4-pin X l

(C) 0.286 v (p-p), 75 £2

Component video output

(Y) 1.0 V (p-p), 75 9, negative sync, pin jack X 1
(PB)/(PR) 0.7 V (p-p), 75 (2, pin jack X 2

Audio output (digital output Optical)

Optical connector X 1

Audio output (digital output Coaxial)

0.5 V (pp), 75 Q, pinjack X 1

Audio output (2-Channel Audio)

2.0 V (rms), 320 9, pin jack (L, R) X 1

Specifications and features are subject to change without notice.

38
