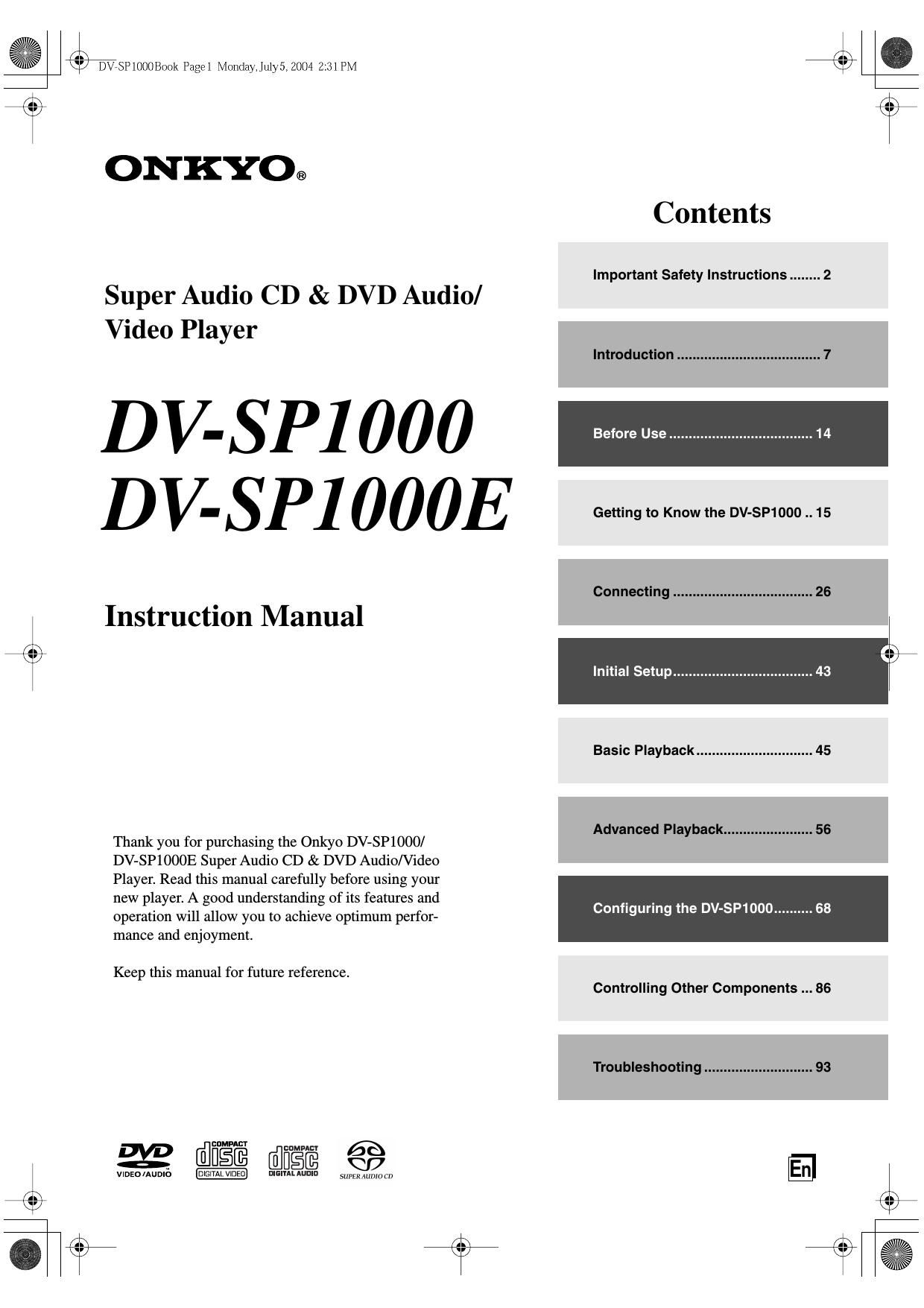

Onkyo DVSP 1000 Owners Manual
This is the 96 pages manual for Onkyo DVSP 1000 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo DVSP 1000 Owners Manual (Ocr-read)
Page 1
2 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8. Do not install near any heat sources such as radia- tors, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are pro- vided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience recepta- cles, and the point where they exit from the appara- tus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table spec- ified by the manufacturer, or sold with the apparatus. When a cart is used, use cau- tion when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.15. Damage Requiring Service Unplug the apparatus form the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen into the apparatus, C. If the apparatus has been exposed to rain or water, D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation, E. If the apparatus has been dropped or damaged in any way, and F.When the apparatus exhibits a distinct change in performance this indicates a need for service. 16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous volt- age points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Dont put candles or other burning objects on top of this unit. 17. Batteries Always consider the environmental issues and fol- low local regulations when disposing of batteries. 18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is ade- quate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape. WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNINGRISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS PORTABLE CART WARNING S3125A
Page 2
3 Precautions This unit contains a semiconductor laser system and is classified as a CLASS 1 LASER PRODUCT. So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit. To prevent being exposed to the laser beam, do not try to open the enclosure. DANGER: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK FAILED OR DEFEATED. DO NOT STARE INTO BEAM. CAUTION: THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFOR- MANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARD- OUS RADIATION EXPOSURE. The label on the right is applied on the rear panel except for USA and Canadian models. 1. This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet. 2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel. For U.S. model The laser is covered by a housing which prevents expo- sure during operation or maintenance. However, this product is classified as a Laser Product by CDRH (Cen- ter for Devices and Radiological Health) which is a department of the Food and Drug Administration. According to their regulations 21 CFR section 1002.30, all manufactures who sell Laser Products must maintain records of written communications between the manu- facturer, dealers and customers concerning radiation safety. If you have any complaints about instructions or explanations affecting the use of this product, please feel free to write to the address on the back page of this manual. When you write us, please include the model number and serial number of your unit. In compliance with Federal Regulations, the certifica- tion, identification and the period of manufacture are indicated on the rear panel. FCC INFORMATION FOR USER CAUTION: The user changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential instal- lation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partic- ular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour- aged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from -that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Dette mærke på bagpladen angiver, at: 1. Denne enhed er et KLASSE 1 LASERPRODUKT, hvor der anvendes en laser, der er placeret inde i kabi- nette. 2. For at undgå at laseren afdækkes må afskærm- ningen aldrig fjernes. Overlad al servicering til kvalificeret personale. FARE: USYNLIG LASERSTRÅLING I ÅBEN TILSTAND ELLER NÅR SIKKERHEDSAFBRYDER FEJLER ELLER OMGÅS. UNDGÅ BESTRÅLING FRA LASERSTRÅLEN. Denne etiketten som er å finne på baksidepanelet erklærer at: 1. Denne enheten er et KLASSE 1 LASER PRO- DUKT og benytter laser inni kabinettet. 2. For å forhindre eksponering av laser, må dekslet ikke fjernes. Overlat alt servicearbeid til kvalifisert fagpersonell. FARE: UNSYNLIG BESTRÅLING NÅR ENHETEN ER ÅPEN OG LÅSEN SVIKTER ELLER ER UTE AV FUNKSJON. UNNGÅ DIREKTE BESTRÅLING. Takaseinässä oleva tarra limoittaa, että: 1. Tämä laite on LUOKAN 1 LASERLAITE ja sen sisällä on laser. 2. Jotta et joudu alttiiksi säteele, älä irrota laitteen kantta. Huoltotoimet on jätettävä ammattihenkilön suoritettavaksi. VAARA: NÄKYMÄTÖNTÄ LASERSÄTEILYÄ, KUN LAITE ON AVATTU JA SISÄLUKITUS EPÄKUN- NOSSA TAI SÄÄDETTY TOIMIMATTOMAKSI. VÄLTÄ SUORAA ALTISTUMISTA SÄTEELE.
Page 24
25 Getting to Know the DV-SP1000/DV-SP1000E -Continued Controlling an Onkyo AV Receiver (Amp Mode) In Amp mode, the remote controller can be used to con- trol an Onkyo AV receiver connected to the DV-SP1000/ DV-SP1000E via . To select Amp mode, press the [AMP] MODE button. A ON button This button is used to turn the AV receiver on. B STANDBY button This button is used to set the AV receiver to Standby. C AMP MODE button This button is used to select the remote controllers Amp mode. D AUDIO SEL button This button is used to select the audio input signal format on the AV receiver. E Arrow [ ]/[ ]/[ ]/[ ] & ENTER buttons The arrow buttons are mainly used to navigate onscreen menus. The [ENTER] button is used to confirm choices. F L MODE [+/–] button This button is used to select listening modes on the AV receiver. G RETURN button This button is used to return to the previously dis- played menu of the AV receivers onscreen setup menus (OSD). H DISPLAY button This button is used to display various information about the input source currently selected on the AV receiver. I DIMMER button This button is used to adjust the display brightness on the AV receiver. J AMP INPUT button This button is used to select the input source on the AV receiver. K Amp Input (DVD, V1, V2, V3) buttons These buttons are used to select the input source on the AV receiver: DVD, Video 1, Video 2, or Video 3. L VOL button This button is used to set the volume of the AV receiver. M SETUP button This button is used to access the AV receivers onscreen setup menus (OSD). N MUTING button This button is used to mute the AV receiver. + 10 0 CLEAR 123 456 789 INPUT I + - ENTER SETUP RETURN L4 L2 L1 V OFF V IN ASPECT A- B REPEAT RSLTN ANGLE SBTTL AUDIO L3 TOPMENU MENU VOL + - V3 TV INPUT D M S DVD AMP VCR DVD V1 V2 LM RD ZOOMCHL MODE LEARNING SEARCH MEMORY DIMMER AMP INPUT DISPLAY AUDIO SEL ZOOM ONPICTURE CONTROL RANDOM STEP/SLOW MUTING ANGLE SUBTITLE AUDIO ASPECT A- B REPEAT ON STANDBY T V T V CH T V VOL RC- 563DV LAST MEMORY RESOLUTION MODE AMP INPUT REC OPEN/ CLOSE VIDEO INPUT VIDEO OFF J M N A C D E F G B HI L K
Page 25
26 Connecting This chapter explains how to connect the DV-SP1000/ DV-SP1000E to your other AV components. -Read the manuals supplied with your AV components. -Dont connect the power cord until youve completed all audio and video connections. Optical Digital Outputs The DV-SP1000/DV-SP1000Es optical digital output sockets have dust caps for keeping out dust and dirt when theyre not in use. Remove the cap before inserting an optical plug, and push the plug in all the way to make a good connection. Keep the dust cap in a safe place for future use. RCA AV Connection Color Coding RCA-type AV connections are usually color coded: red, white, and yellow. Use red plugs to connect right-chan- nel audio inputs and outputs (typically labeled R). Use white plugs to connect left-channel audio inputs and out- puts (typically labeled L). And use yellow plugs to connect composite video inputs and outputs. -Push each plug in all the way to make a good connection (loose connections can cause noise or malfunctions). -To prevent interference, keep audio and video cables away from power cords and speaker cables. Before Making Any Connections Right (red) Left (white) (Yellow)Analog audio Composite videoRight (red) Left (white) (Yellow) Right! Wrong! AV Cables & Connectors Video HDMI HDMI connections can carry uncompressed, standard or high definition digital video and up to eight channels of digital audio, for the best picture and sound quality. Component video Component video connections separate the luminance (Y) and color difference signals (P R , P B ) and provide picture quality better than S-Video and composite video. (Some manufac- turers label their component video sockets slightly differently.) The DV-SP1000/DV-SP1000Es HD VIDEO OUT COMPONENT sockets are BNC connec- tors, except on the Canadian model, which has RCA sockets. S-Video S-Video connections provide better picture quality than composite video. Composite video Composite video is commonly used on TVs, VCRs, and other video equipment. Use only dedicated composite video cables. SCART (European model only) SCART connections carry video (RGB, S-Video, and composite) and analog stereo audio all in one cable. HDMI Y P R PB PR PB Y CR CB CR CB // / / Y P B PR Y P R PB PR PB YC R CB CR CB // / / PB YP R S VIDEO VIDEO AV CONNECTOR
Page 47
48 Basic Playback -Continued With the Search function you can select chapters and titles by number. Notes: -During playback you can select chapters directly by using the number buttons. To select chapter #2, simply press [2] and playback starts. To select chapter #10, press [+10] and [0] and playback starts. -If a DVD-Video disc contains only one title, you wont be able to select titles. Likewise, if it contains no chap- ters, you wont be able to select chapters. -DVD-Video discs usually have menus for selecting titles and chapters (see page 47). -With some discs you may not be able to select titles and chapters by number. Selecting Chapters & Titles by Number 1 Load a DVD-Video disc (page 45). 2 Press the [SEARCH] button. The Disc Navigator Search window appears onscreen. With some DVDs you can select only titles, and the Chapter Current/Total information is not displayed. Some discs wont even allow you to select titles. + 10 0 CLEAR 123 456 789 INPUTI +- ENTER SETUP RETURN L4 L2 L1 V OFF V IN ASPECT A- B REPEAT RSLTN ANGLE SBTTL AUDIO L3 TOPMENUMENU VOL + - V3 TVINPUTD M S DVD AMP VCR DVD V1 V2 LM RD ZOOMCHL MODE LEARNING SEARCH MEMORY DIMMER AMP INPUT DISPLAY AUDIO SELZOOM ONPICTURE CONTROL RANDOM STEP/SLOW MUTING ANGLE SUBTITLE AUDIOASPECT A- B REPEAT ON STANDBY T V T V CH T V VOL RC- 563DV LAST MEMORY RESOLUTION MODE AMP INPUT REC OPEN/ CLOSEVIDEO INPUT VIDEO OFF SEARCH ENTER Number buttons DVD-V DVD-VR SSEARCH Remote controller Current title Total number of titles Current chapter Total number of chapters 3 If you want to select a title, press the Left [ ] button to move the cursor to the current title number. 4 Use the number buttons to spec- ify a chapter or title number. To enter, for example, 2, press the [2] button. To enter, for example, 12, press the [1] button followed by the [2] button. To clear a number, press the [CLEAR] button. 5 Press the Play [ ] or [ENTER] button to start playback of the specified chapter or title. During playback, you can select other chapters with the Next [ ] and Previ- ous [ ] buttons. The first press of the Previous [ ] button selects the begin- ning of the current chapter. ENTER Remote controller Entered title number appears here + 10 0123 456 789 Remote controller Entered chapter number appears here Remote controller
Page 86
87 Controlling Other Components -Continued Remote Control Codes When two or more codes are given, try each one in turn, and choose the one that works best. TV Manufacturer Control code Admiral 1026, 1040, 1062 Akai 1002, 1067 Akura 1045 Alba 1035, 1043 Amplivision 1063 Amstrad 1035, 1067 Amtron 1009 Anam National 1003, 1009 Anitech 1035 AOC1004, 1005, 1006 Arc en Ciel 1066 Arcam 1063 ASA 1040 Audiovox 1009 Autovox 1040, 1068 Baird 1069 Bang & Olufsen1040 Baur1036, 1054, 1055, 1058, 1059, 1068 Beko 1052 Bell & Howell 1010, 1017 Binatone 1063 Blaupunkt1041, 1042, 1044, 1058, 1059 Boots 1063 Brionvega 1040 Bruns 1040 BSR 1048 Bush1035, 1043, 1048, 1050, 1053, 1057 Cascade 1035 Celebrity 1002 Century 1040 Cimline 1035, 1043 Citizen1004, 1006, 1009, 1017, 1022, 1025 Clatronic 1052 Colortyme 1004, 1006 Condor 1052 Contec 1035 Contec/Cony 1007, 1009 Continental Edison1066 Craig 1009 Crosley 1040 Crown 1009, 1014, 1035, 1052 Curtis Mathes1001, 1004, 1006, 1010, 1017, 1022, 1025, 1034 Daewoo1004, 1005, 1006, 1025, 1035, 1053 Daytron 1004, 1006, 1025, 1035 Decca 1067 Dimensia 1001, 1034 Dixi 1035 Dual 1057, 1068 Dumont 1004, 1039, 1040 Electroband 1002 Electrohome1002, 1003, 1004, 1006, 1008 Elta 1035 Emerson1004, 1006, 1007, 1009, 1010, 1017, 1025, 1027, 1029, 1033, 1040, 1070 Envision 1004, 1006 Erres 1037 Europhon 1067 Fidelity 1068 Finlux 1039, 1040, 1067 Firstline1035, 1043, 1048, 1049, 1063 Fisher1010, 1017, 1052, 1063, 1068 Formenti 1040 Frontech 1045, 1062 Fujitsu 1070 Funai 1009, 1045, 1048, 1070 GE1001, 1003, 1004, 1006, 1011, 1012, 1019, 1034 GEC 1038, 1063, 1067, 1069 Geloso 1035 Genexxa 1062 GoldStar1004, 1005, 1006, 1007, 1008, 1025, 1047, 1063 Goodmans 1043, 1053, 1063 Gorenje 1052 Graetz 1062, 1069 Granada 1063, 1067 Grundig1039, 1041, 1042, 1058, 1059, 1064 Hallmark 1004, 1006 Hanseatic 1060, 1068 Hantarex 1067 HCM 1035 Hinari 1035, 1043 Hitachi1004, 1006, 1007, 1013, 1027, 1038, 1062, 1063, 1069 Huanyu 1053 ICE 1045, 1063 Imperial 1052 Infinity 1014 Inno Hit 1056, 1067 Interfunk 1055, 1062, 1066, 1069 Intervision 1045, 1063 ITT 1062, 1068, 1069 JBL 1014 JC Penney1001, 1004, 1005, 1006, 1011, 1012, 1016, 1019, 1022, 1025, 1034 Jensen 1004, 1006 JVC1007, 1012, 1013, 1015, 1033 Kaisui 1035, 1063 Kapsch 1062, 1069 TV Manufacturer Control code Kathrein 1060 Kawasho 1002, 1004, 1006 Kendo 1043 Kenwood 1004, 1006, 1008 Kloss Novabeam1009 Korting 1040 KTV 1009, 1025 LG 1005 Loewe 1014, 1040, 1055 Luxman 1004, 1006 LXI1001, 1006, 1010, 1014, 1016, 1017, 1034 M Electronic 1035, 1053, 1062, 1063 Magnadyne 1040, 1067, 1068 Magnafon 1067 Magnavox1004, 1006, 1008, 1014, 1018, 1020 Marantz 1004, 1006, 1014, 1060 Matsui1035, 1043, 1048, 1050, 1063, 1064, 1067, 1068 Megatron 1006 Memorex1005, 1006, 1010, 1017, 1035 Metz 1040, 1051, 1058 MGA 1004, 1005, 1006, 1008 Minerva 1039, 1058, 1059, 1064 Mitsubishi1004, 1005, 1006, 1008, 1040, 1055, 1058 Mivar 1047, 1056, 1067 Motorola 1003, 1026 MTC1004, 1005, 1006, 1022, 1055 Multitech 1009, 1035 NAD 1006, 1016 NEC 1003, 1004, 1005, 1006 Neckermann1040, 1041, 1054, 1059, 1060 Nikkai 1045 Nikko 1006 Oceanic 1062 Onwa 1009 Optonica 1021, 1026 Orion1029, 1043, 1048, 1049, 1050, 1067, 1068 Osaki 1045, 1063 Otto Versand1036, 1041, 1043, 1054, 1055, 1058, 1059, 1060, 1063 Palladium 1052 Panasonic1003, 1012, 1014, 1031, 1044, 1046, 1051, 1061, 1062, 1069 Pathe Marconi 1066 Philco1003, 1004, 1005, 1006, 1007, 1008, 1014, 1018, 1040 Philips1003, 1004, 1007, 1008, 1014, 1018, 1019, 1020, 1037, 1038, 1040, 1053 Phoenix 1040 Phonola 1037, 1040 TV Manufacturer Control code
