Onkyo DVS 939 Owners Manual

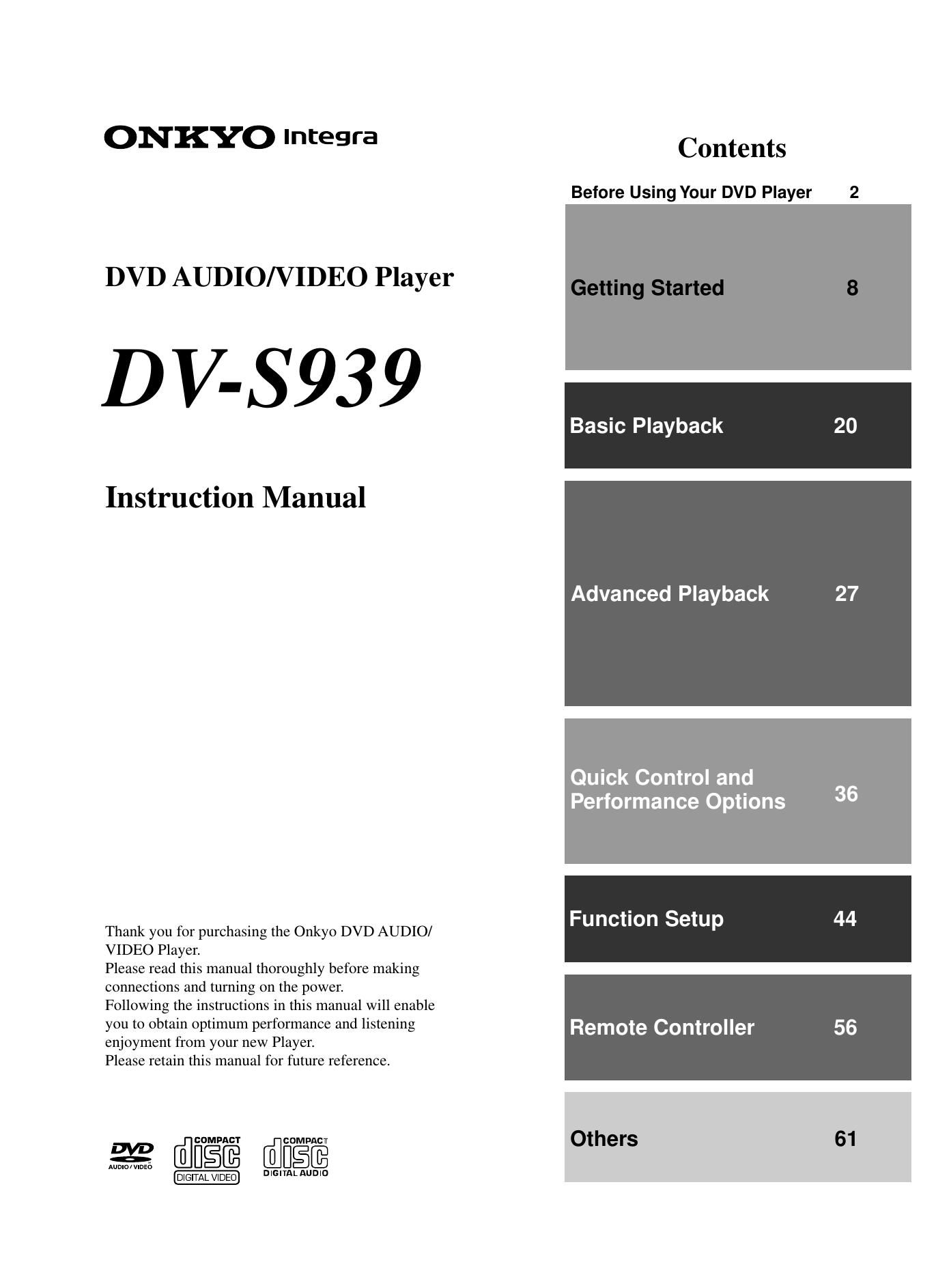

Page 1

ONKYO Integra

DVD AUDIO/VIDEO Player

DV-S939

Instruction Manual

Thank you for purchasing the Onkyo DVD AUDIO/
VIDEO Player.

Please read this manual thoroughly before making
connections and turning on the power.

Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new Player.

Please retain this manual for future reference.

Mil-EEEE [flfigfi

_IGITAL VIDEO DIGITALAUDIO

Contents

Before Using Your DVD Player 2

Basic Playback

Advanced Playback

Quick Control and
Performance Options

Function Setup

Remote Controller

Others 61

Page 2

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN 0R
MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK) NO USERSERVICEABLE
PARTS INSIDE REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

triangle, is intended to alert the user to the presence of uninsulated
dangerous voltage within the products enclosure that may be ot

The exclamation point WIthin an equilateral trIangle Is Intended to alert
the user to the presence of important operating and maintenance

AVIS

RISK OF ELECTRIC SHOCK RISQUE DE CHOC ELECTRIQUE
DO NOT OPEN NE PAS OUVRIR

The lightnIng flash with arrowhead symbol, within an equilateral

sufticient magnItude to constitute a risk oI electrIc shock to persons.

(servicing) instructions in the |Iterature accompanying the appliance.

Important Safeguards

Read Instructions -All the safety and operating instructions should
be read before the appliance is operated.

Retain Instructions - The safety and operating instructions should
be retained for future reference.

Heed Warnings - All warnings on the appliance and in the operating
instructions should be adhered to.

Follow Instructions -All operating and use instructions should be
followed.

Cleaning - Unplug the appliance front the wall outlet before
cleaning. The appliance should be cleaned only as recommended by
the manufacturer.

Attachments - Do not use attachments not recommended by the
appliance manufacturer as they may cause hazards.

Water and Moisture - Do not use the appliance near water -for
example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a
wet basement: or near a swimming pool; and the like.

Accessories - Do not place the appliance on an a ble cart, stand,
tripod, bracket, or table. The appliance may fall. cau. ing serious injury
to a child or adult, and serious datnage to the appliance. Use only with
a cart, stand, tripod, bracket. or table recommended by the
manufacturer, or sold with the appliance. Any mounting of the

appliance should follow the manufacturer's instructions, and should
use a mounting accessory recommended by the manufacturer.

An appliance and cart combination PORTABLE CART WARNING
should be moved with care. Quick
stops, excessive force, and uneven /
surfaces may cause the appliance

and cart combination to overturn. . B
Ag
.

SaizsA

. Ventilation - Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the appliance and to
protect it from overheating, and these openings must not be blocked or
covered. The opening hould never be blocked by placing the
appliance on a bed. i fa, rug, or other similar surface. The appliance
should not be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided. There should be free space
of at least 5 cm and an opening behind the appliance.

Power Sources - The appliance should be operated only from the
type of power source indicated on the marking label. If you are not
sure of the type of power supply to your home, consult your appliance
dealer or local power company.

. Grounding or Polarization - The appliance may be equipped with

a polarized alternating current line plug (a plug having one blade
wider than the other). This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to insert the plug fully
into the outlet, try reversing the plug. If the plug should still fail to fit.
contact your electrician to replace your obsolete outlet. Do not defeat
the safety purpose of the polarized plug.

. Power-Cord Protection - Power-supply cords should be routed so

that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from the
appliance.

14.

20.

21.

22.

Lightning - For added protection for the appliance during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna or
cable system. This will prevent damage to the appliance due to
lightning and power-line surges.

. Overloading - Do not overload wall outlets, extension cords, or

integral convenience receptacles as this can result in a risk of fire or
electric shock.

. Object and Liquid Entry - Never push objects of any kind into the

appliance through opening they may touch dangerous Voltage
points or short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the appliance.

. Servicing - Do not attempt to service the appliance yourself as

opening or removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service personnel.

. Damage Requiring Service - Unplug the appliance form the wall

outlet and refer servicing to qualified service personnel under the

following conditions:

A. When the power-supply cord or plug is damaged,

B. If liquid has been spilled, or objects have fallen into the appliance,

C. If the appliance has been exposed to rain or water,

D. If the appliance does not operate normally by following the
operating instructions. Adjust only those controls that are covered
by the operating instructions as an improper adjustment of other
controls may result in damage and will often require extensive
work by a qualified technician to restore the appliance to its
normal operation,

E. If the appliance has been dropped or damaged in any way, and

F. When the appliance exhibits a distinct change in performance -
this indicates a need for service.

. Replacement Parts - When replacement parts are required, be sure

the service technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other
hazards.

Safety Check - Upon completion of any service or repairs to the
appliance, ask the service technician to perform safety checks to
determine that the appliance is in proper operation condition.

Wall or Ceiling Mounting - The appliance should be mounted to a
wall or ceiling only as recommended by the manufacturer.

Heat - The appliance should be situated away from heat sources such

as radiators, heat registers. stoves, or other appliances (including
amplifiers) that produce heat.

Page 12

Making Connections

[Optional Audio Connections ]

This DVD Player provides numerous ways to take full advantage of the digital multi channel sound recorded on DVD media.

When listening to DVD-Audio
For full enjoyment of DVD-Audio media, it is recommended to make connections to the 6-channel ANALOG OUTPUT jacks. Audio output of DVD-Audio cannot
be played back efficiently when output as a bitstream or PCM from the DIGITAL OUTPUT jacks.

Analog connections
In addition to offering two stereo outputs for connection to a stereo system. two types of multi channel analog output allow you to make connections to an AV
component that features multi channel analog input for full enjoyment of multi channel DVD-Audio discs.

l Making discrete 6-channel ANALOG
An amplifier with six OUTPUT connections

channel discrete input

The discrete ANALOG OUTPUT jacks are intended to deliver up to
5.1 channels of multi channel audio from DVDAVideo and DVD,
To audio inputs Audio sources. Connections can be made from the ANALOG

11 TI
:3 :1
g g g g OUTPUT FRONT, SURR (surround), CENTER, and SUBWOOFER
g g 3 fl jacks to the corresponding input jacks on an AV component with
o . r . . .
g g E multi channel discrete audio inputjacks.
2 a g ,9 Be sure to set Audio Out Select to Analog 6Ch using the on»
2 screen menu explained in Customizing the Function Settings
g starting on page 44. See page 48 for direct information.
"I
:1 Note
_ To ensure proper delivery of sound, be sure to match the names of the jacks on
._ Audio cables .
fl (not 5. - u) the DVD Player and the component being connected to.
lfi : Signal flow
fl
DO NOT connect the
power card until all
connections are
mmu complete.
mum
vamsisstsema
I I-
g g 'i :Signal flow
5 5'
Audio cable I Making stereo audio connections

(not supplied)
By making connections to a stereo system, you can improve the
quality of the sound of cinematic presentations as well as make
effective use of the DVD Players ability to play back CDs.
Using an audio cable (sold separately), make audio connections
from the ANALOG OUTPUT CH1 or CH2 L and Rjacks to the
correspondingjacks on the stereo component.
Be sure to set Audio Out Select to Analog 2Ch using the one
A" amplifier With screen menu explained in Customizing the Function Settings"
stereo inputs starting on page 44. See page 48 for direct information.

(Pal!) H

,_
E
E
E

' To audio inputs

Notes

. Be sure to match the colors of the plugs on the cable with the
corresponding jacks on the DVD Player and the stereo component: red for
R (right) audio and white for L (left) audio.

' Do not make connections to the PHONO or TUNER jacks on the stereo
component.

- When this type of connection is made, be sure to set Audio Out Select to
Analog 2Ch" in order to enjoy the Dolby Pro Logic surround sound.
