Onkyo DVS 757 Service Manual

Page 1

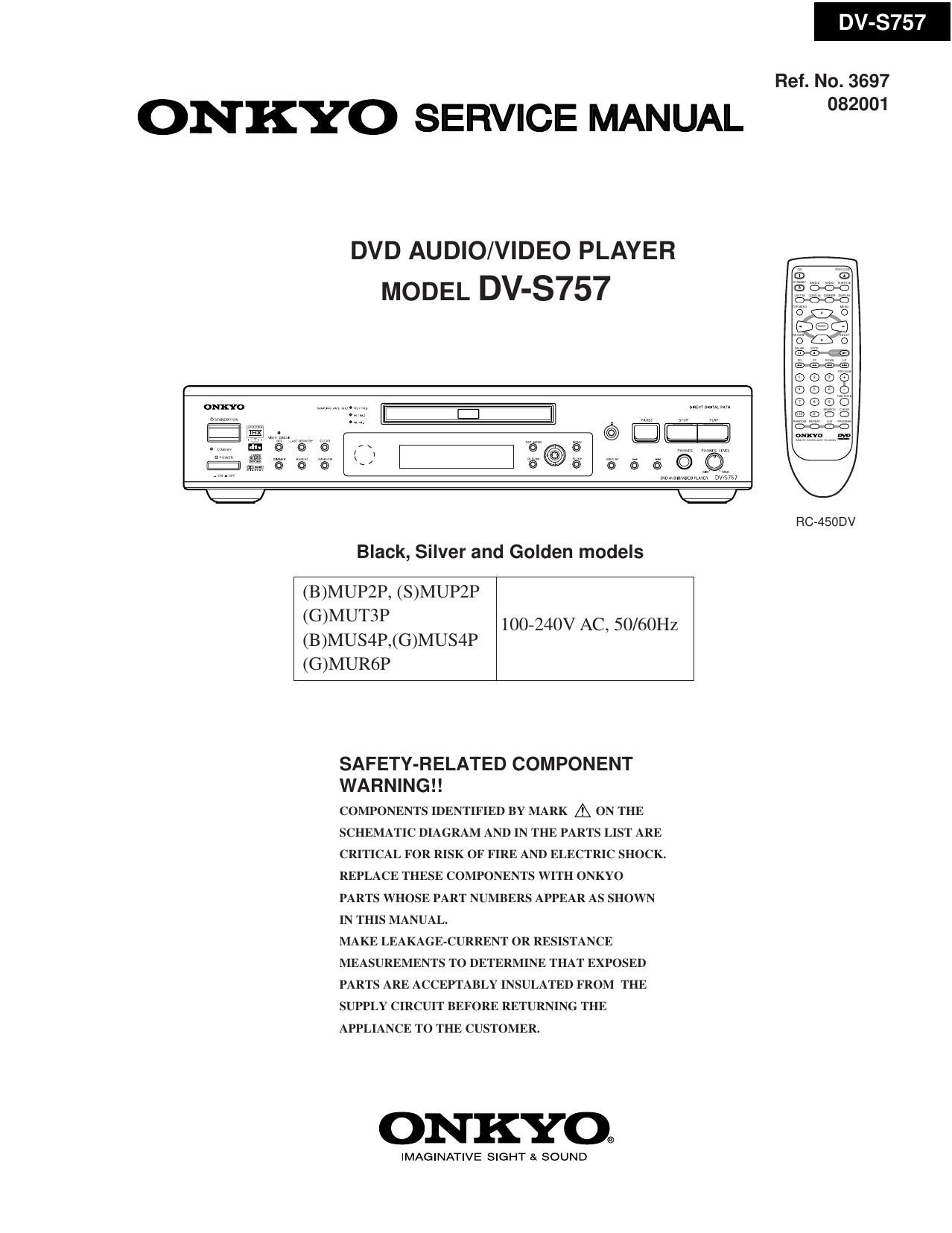

ONKYO SERVICE MANUAL

DVD AUDIO/VIDEO PLAYER
MODEL DV-S757

Black, Silver and Golden models

(B)MUP2P, (S)MUP2P
(G)MUT3P
(B)MUS4P,(G)MUS4P
(G)MUR6P

10()~24()V AC, 50/60Hz

SAFETY-RELATED COMPONENT
WARNING !!

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO.

IMAGINATIVE SIGHT & SOUND

DV-S757

Ref. No. 3697
082001

RC-450DV

Page 2

SPECIFICATIONS

l DVD Player
Power supply
Power consumption
Weight
External dimensions
Signal system

Regional restriction code

Laser

Frequency range (digital audio)

Signal-to-noise ratio (digital audio)
Audio dynamic range (digital audio)
Harmonic distortion (digital audio)
Wow and flutter

Operating conditions

I Outputs
Video output
S-video output

Component video output

Audio output (digital output Optical)
Audio output (digital output Coaxial)

Audio output (analog audio)

Audio output (5.1 channel analog audio)

AC 100-240 V, 50/60 Hz
15 w

3.4 kg, 7.5 lbs,

435 x 91 >< 312 mm (W/H/D), 17-1/8" x 3-9/16 x 12-5/16"
PAL/AUTO

Some Asian area: 3
South American area: 4
Chinese area: 6

Semiconductor laser, wavelength 650 nm

DVD linear sound: 48 kHz sampling 4 Hz to 22 kHz
96 kHz sampling 4 Hz to 44 kHz

Audio CD: 4 Hz to 20 kHz

More than 100 dB

More than 96 dB

Less than 0.015 %
Below measurable level (less than $0.001 % (W.PEAK)
Temperature: 5 °C to 35 ° C (41° F to 95° F), Operation status: Horizontal

1.0 V (p-p), 75 Q , negative sync., pin jack X 2

(Y) 1.0 V (pp), 759 , negative sync, Mini DIN 4-pin ><2

(C) 0.286 V (p-p), 75 Q

(Y) 1.0 V (p-p), 75 Q , negative sync, pinjack ><1

(PB)/(PR)0:7 V (p-p), 75 Q

Optical connecter X2

0.5 V(p-p), 759 , pin jack XI

2.0 V(rms), 470 Q , pinjack (L, R) X 2

2.0 V (rms), 470 Q, pinjack (FRONT L, FRONT R, CENTER, SURR L,
SURR R, SUB WOOFER) X 1

Specifications and features are subject to change without notice.
