Onkyo DVS 717 Service Manual
This is the 23 pages manual for Onkyo DVS 717 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo DVS 717 Service Manual (Ocr-read)
Page 1
Ref. No.3614

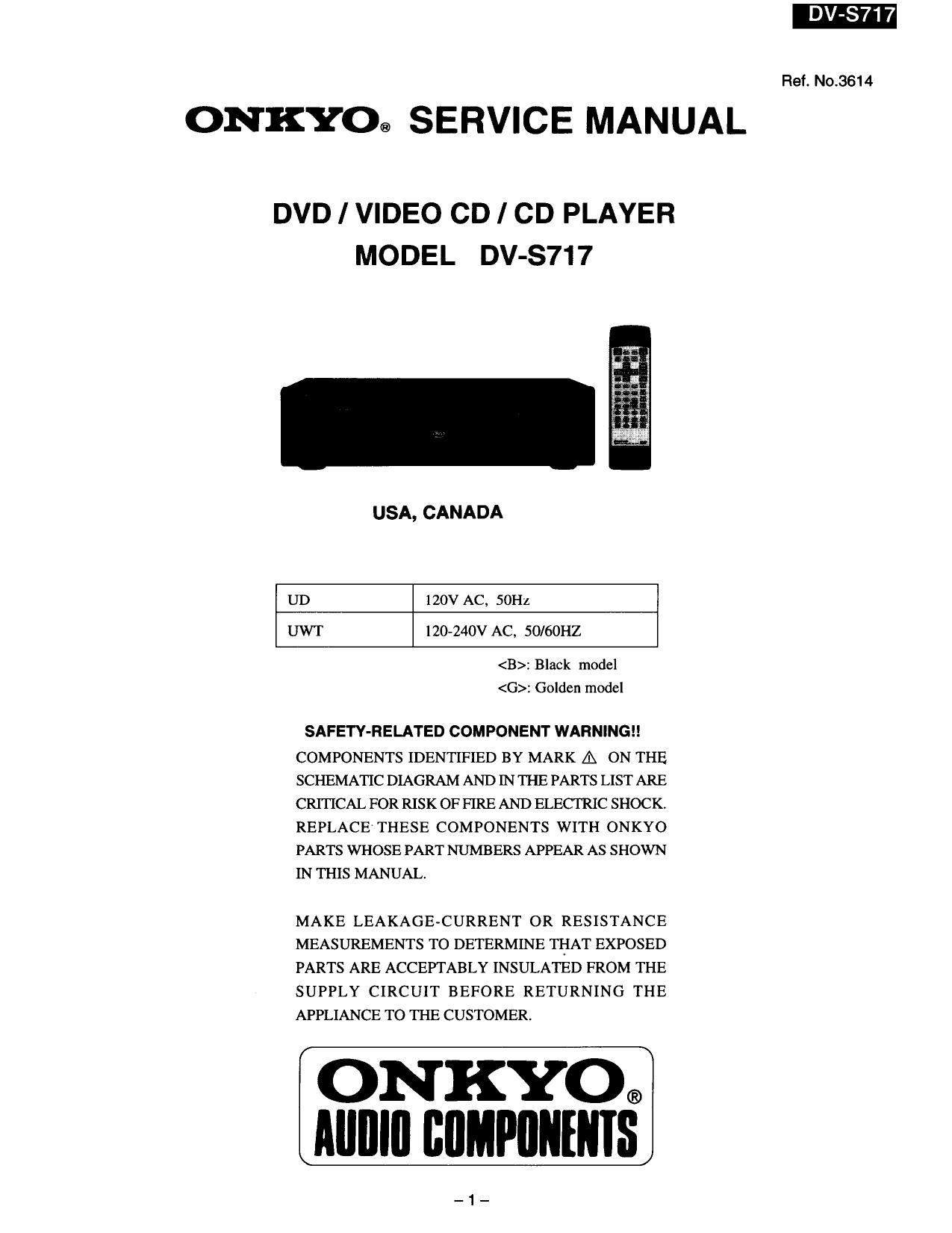

ONKYO® SERVICE MANUAL
DVD I VIDEO CD I CD PLAYER
MODEL DV-S717
USA, CANADA
UD 120V AC, 50m
UW l l20-240V AC, 50/60HZ
: Black model
SAFETY-RELATED COMPONENT WARNING
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
Mllllll fiflfllflfllm
-1-
Page 2
OPERATING INSTRUCTIONS
SAFETY PRECAUTIONS
@ WARNING I I
RISKOF ELECTRIC siiocx
DONOTOPEN
AVIS
WARNING :
TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (0R BACK). NO USEHSERVICEABLE
PARTS INSIDE. REFER SERVICING T0
OUAUFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol. within an equilateral triangle. is
intended to alert the user to the presence of uninsulated dangerous voltage"
within the products enclosure that may be of sufficient magnitude to constitute
MEDECHOCELICMIMNE a risk of electric shock to persons,
PAS DUVRIII
The exclamation point within an equilateral triangle is intended to alertthe user
to the presence of important operating and maintenance (servicing) instruc-
tions in the literature accompanying the appliance,
WARNING:
CAUTION:
ATTENTION:
CAUTION:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLV.
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
POUR EVITER LES CHOCS ELECTRIQUE, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU AU FOND.
This Digital Video Disc Player employs a Laser System.
To ensure proper use of this product, please read this owners manual carefully and retain for future
reference Should the unit require maintenance, contact an authorized service location - see sen/ice
procedure,
Use of controls, adjustments or the performance of procedures other than those specified may result herein
hazardous radiation exposure,
To prevent direct exposure to laser beam, do not try to open the enclosure.
Visible laser radiation when open and interlocks defeated.
DO NOT STARE INTO BEAM.
PREPARATION OF SERVICING
Pickup Head consists of a laser diode that is very susceptible to external static electricity,
Although it operates properly after replacement, if it was subject to electrostatic discharge during replacement. its
life might be shortened. When replacing, use a conductive mat, soldering iron wrth ground wire, etc. to protect the
laser diode from damage by static electricity.
