Onkyo DVS 555 Service Manual
This is the 62 pages manual for Onkyo DVS 555 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo DVS 555 Service Manual (Ocr-read)

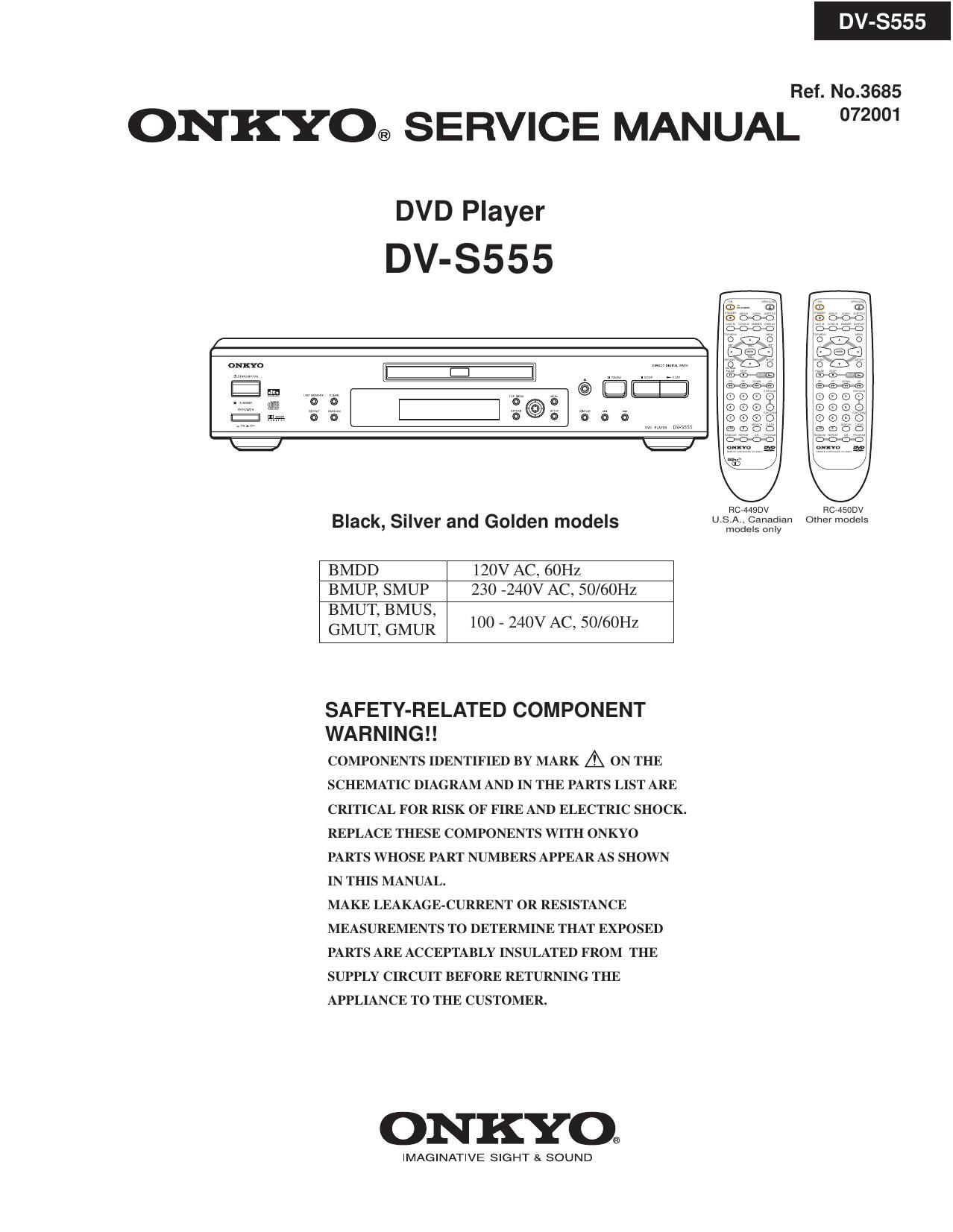

Page 1
8555
Ref. No.3685
ONKYO® SERVICE MANUAL °72°°1
DVD Player
DV-S555
/
{3 b0
gcéo
O O
(2%?
19430 x
GE) 6 a
ease esée
0000 @090
@900 0000
GOQQ oeao
@moo @moo
5066 bddd
nun-1,, m 9 m
Q9 \ /
ROMSDV RCVASODV
Black, Silver and Golden models US$333?" OthermOdEs
BMDD 120V AC, 60Hz
BMUP, SMUP 230 -240V AC, 50/60Hz
BMUT, BMUS, 4 C /
GMUT GMUR 100- 2 ()VA ,50 60Hz
SAFETY-RELATED COMPONENT
WARNING !!
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT & SOUND
Page 2
SPECIFICATIONS
DVD Player
Power supply
Power consumption
Weight
External dimensions
Signal system
Regional restriction code
Laser
Frequency range (digital audio)
Signal-to-noise ratio (digital audio)
Audio dynamic range (digital audio)
Harmonic distortion (digital audio)
Wow and flutter
Operating conditions
Outputs
Video output
S-video output
Component video output
Audio output (digital output Optical)
Audio output (digital output Coaxial)
Audio output (2-Channel Audio)
Audio output (analog audio)
North American models: AC 120 V, 60 Hz
Other models: AC 100 - 240 V, 50/60 Hz
North American models: 14 W
Other models: 15 W
3.4 kg, 7.1 lbs.
435 x 91 x 312 mm (W/H/D), 17-1/8" x 3-9/16" x 12-5/16"
PAL/NTSC
North American area: 1
Some Asian are: 3
South American area: 4
Chiness area: 6
Semiconductor laser , wavelength 650 nm
DVD linear sound: 48 kHz sampling 4 Hz to 22 kHz
96 kHz sampling 4 Hz to 44 kHz
Audio CD: 4 Hz to 20 kHz
More than 100 dB
More than 96 dB
Less than 0.05 %
Below measurable level (less than +/- 0.001 % (W .PEAK))
Temperature: 5° C to 35° C (41° F to 95° F), Operation status: Horizontal
1.0 V (p-p), 75 ohm, negative sync, pinjack x 1
(Y) 1.0 V (p-p), 75 ohm , negative sync, Mini DIN 4-pin x l
(C) 0.286 V (p-p), 75 ohm
(Y) 1.0 V (pp), 75 ohm , negative sync, pinjack x 1
(PB)/(PR) 0.7 V (p-p), 75 ohm
RGB signal output, 0.7 V (p-p), 75 ohm, SCART socket x 1
Optical connecter x l
0.5 V (p-p), 75 ohm, pinjack x 1
2.0 V (rms), 320 ohm , pin jack (L, R, MONO) x 1
2.0 V (rms), 470 ohm, pinjack (L, R. MONO) x 1
Specifications and features are subject to change without notice.
