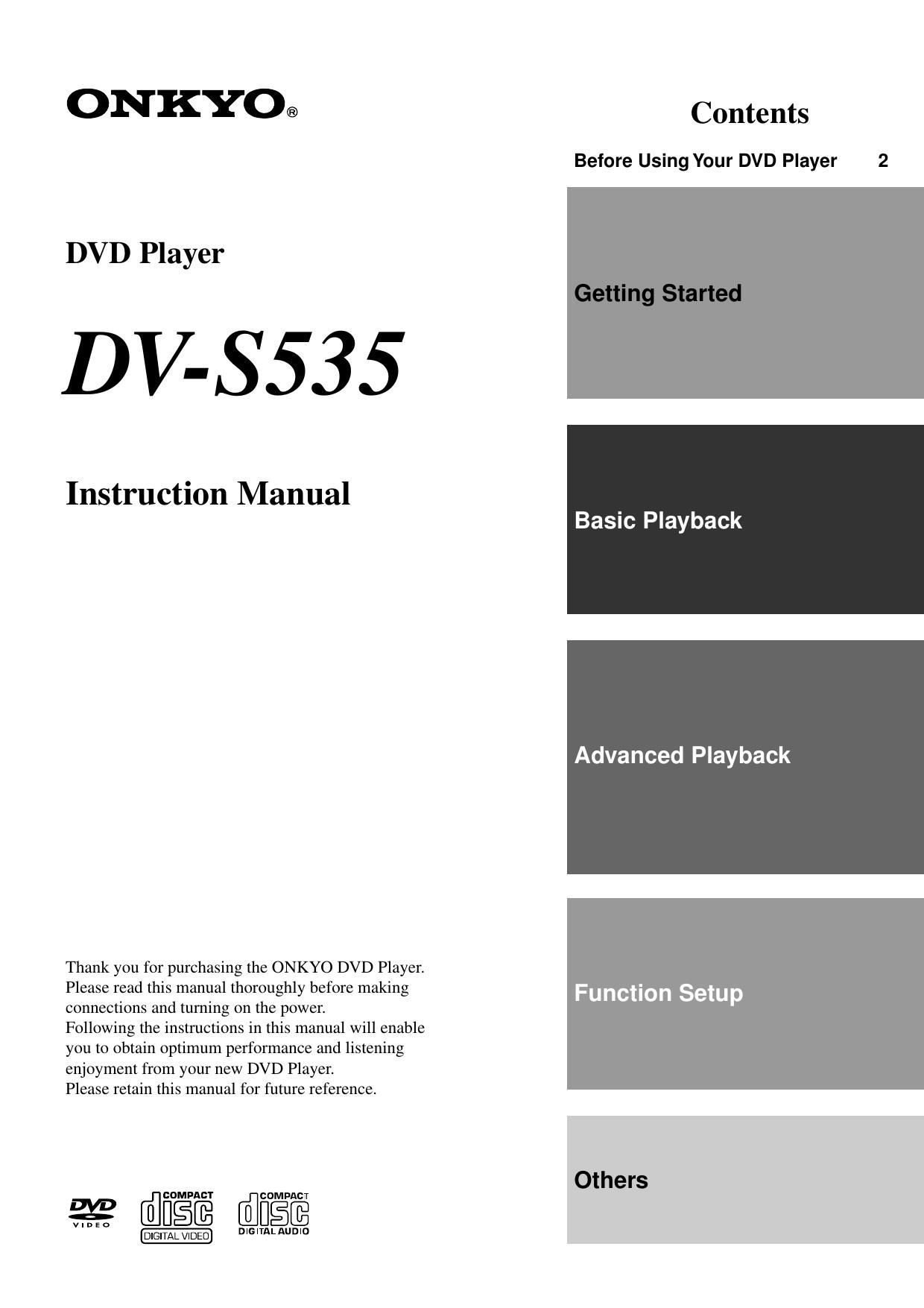

ONKYO® Contents

Before Using Your DVD Player 2

DVD Player

DV-SS35

Instruction Manual
Basic Playback

Advanced Playback

Thank you for purchasing the ONKYO DVD Player.
Please read this manual thoroughly before making Function Setup
connections and turning on the power.

Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new DVD Player.

Please retain this manual for future reference.

caMPAcr comm. Others
mdlnae dug nae

_IGITAL VIDEO DIGITAL AUDIO

Page 2

WARNING:

TO REDUCE THE RISK OF FIRE 0R ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN 0R
MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USERESERVICEABLE
PARTS INSIDE REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

The exclamation point WIthin an equilateral mangle Is intended to alert
the user to the presence of important operating and maintenance

AVIS

RISK OF ELECTRIC SHOCK RISQUE DE CHOC ELECTRIOUE
DO NOT OPEN NE PAS OUVRIR

The lightnIng llash with arrowhead symbol, within an equIlateraI
triangle, is intended to alert the user to the presence at unInsulated
dangerous voltage" wnhIn the products enclosure that may be of
suffIcient magnItude to constitute a rIsk oi electrIc shock to persons.

(sen/icing) InstructIons in the lIterature accompanying the appIIance.

Important Safeguards

Read Instructions - All the safety and operating instructions
should be read before the appliance is operated.

Retain Instructions - The safety and operating instructions
should be retained for future reference.

Heed Warnings - All warnings on the appliance and in the
operating instructions should be adhered to.

Follow Instructions - All operating and use instructions should
be followed.

Cleaning - Unplug the appliance from the wall outlet before
cleaning. The appliance should be cleaned only as
recommended by the manufacturer.

Attachments - Do not use attachments not recommended by
the appliance manufacturer as they may cause hazards.

Water and Moisture - Do not use the appliance near water -for
example, near a bath tub, wash bowl, kitchen sink, or laundry
tub; in a wet basement; or near a swimming pool; and the like.

Accessories - Do not place the appliance on an unstable cart,
stand, tripod, bracket, or table. The appliance may fall, causing
serious injury to a child or adult, and serious damage to the
appliance. Use only with a cart, stand, tripod, bracket, or table
recommended by the
manufacturer, or sold with the
appliance. Any mounting of the
appliance should follow the
manufacturers instructions, and
should use a mounting accessory
recommended by the .

manufacturer. E
A

33125A .

PORTABLE CART WARNING

An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.

. Ventilation - Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the appliance and
to protect it from overheating, and these openings must not be
blocked or covered.The openings should never be blocked by
placing the appliance on a bed, sofa, rug, or other similar
surface. The appliance should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation
is provided. There should be free space of at least 20 cm (8 in.)
and an opening behind the appliance.

. Power Sources -The appliance should be operated only from

the type of power source indicated on the marking label. If you
are not sure of the type of power supply to your home, consult
your appliance dealer or local power company.

. Grounding or Polarization -The appliance may be equipped

with a polarized alternating current line plug (a plug having one
blade wider than the other). This plug will fit into the power outlet
only one way. This is a safety feature. If you are unable to insert
the plug fully into the outlet, try reversing the plug. If the plug
should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the
polarized plug.

20.

21.

22.

. Serv

. Power-Cord Protection - Power-supply cords should be routed

so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to
cords at plugs, convenience receptacles, and the point where
they exit from the appliance.

. Lightning - For added protection for the appliance during a

lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the
appliance due to lightning and power-line surges.

. Overloading - Do not overload wall outlets, extension cords, or

integral convenience receptacles as this can result in a risk of
fire or electric shock.

. Object and Liquid Entry - Never push objects of any kind into

the appliance through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the appliance.

ing - Do not attempt to service the appliance yourself as
openIng or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service
personnel.

. Damage Requiring Service - Unplug the appliance form the

wall outlet and refer servicing to qualified service personnel
under the following conditions:

A. When the power-supply cord or plug is damaged,

B. If liquid has been spilled, or objects have fallen into the
appliance,

C. If the appliance has been exposed to rain or water,

D. If the appliance does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the appliance to its normal operation,

E. If the appliance has been dropped or damaged in any way,
and

F. When the appliance exhibits a distinct change in
performance - this indicates a need for service.

. Replacement Parts -When replacement parts are required, be

sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics
as the original part. Unauthorized substitutions may result in
fire, electric shock, or other hazards.

Safety Check - Upon completion of any service or repairs to
the appliance, ask the service technician to perform safety
checks to determine that the appliance is in proper operation
condition.

Wall or Ceiling Mounting -The appliance should be mounted
to a wall or ceiling only as recommended by the manufacturer.
Heat -The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.

Page 9

Connecting to an Amplifier
(To Enjoy the Sound Advantage of the DVD Player)

Although you can reproduce the DVD Player's sound from the TV speakers with the connections on the opposite page,
connecting with an amplifier and subwoofer provide you high quality dynamic sounds.

To reproduce Dolby Digital surround, MPEG1 audio, MPEG2 audio, and DTS surround sound, you need to connect to an
amplifier with a Dolby Digital, MPEG1 audio, MPEGZ audio, and DTS decoder respectively.

Before connecting
- Refer to the instruction manual of the amplifier. - Connect the plugs securely.
- When you connect the DVD Player to the amplifier, be sure to turn off
the power and unplug both units from the wall outlet before making any
connections. Otherwise, the speakers may be damaged.
- Note that one audio/video connection cable is supplied. To use this
cable for the analog connection, leave the yellow plug disconnected.

Incomplete

Insert completely

[Making a digital connection with the amplifier

I If the amplifier has a Dolby Digital/DTS/
MPEG1/MPEGZ*/Dolby Pro Logic decoder

After completing the steps on page 10, set Audio Out Select An amplifier with a Dolby Digital/DTS/MPEGt/
to Bitstream using the menu explained in Customizing the MPEG2 decoder or 2 channel digital stereo
Function Settings starting from page 28. See page 32 for direct

information. To digital To digital E
coaxial input optical input

Warning

DO NOT set Audio Out Select" to Bitstream if the amplifier does not
have any of the decoders described above. If you do so, high volume

sound may be output and damage your hearing as well as the h
speakers.

_ _ Coaxial connection Make either connection
I If the amplifier doesnt have any of the cable (not SUPpIIed) depending on the

above decoders (2 channel digital stereo Do NOT COnnect to amplifiers input type-
the AC-3 RF Input

type amplifier) (e_g.-of a Dolby Digital
After completing the steps on Page 10. 36 AUdiO 0' 53'5" :33sz 22"? 210'? video coornlrfgictfilgscable

to PCM using the menu explained in Customizing the disc players. (not supplied)
Function Settings starting from page 28 . See page 32 for direct
information.

Note

- DO NOT set Audio Out Select" to Bitstream. See Warning" above.

- If Audio Out Select" is set to Analog 2ch," PCM sounds may not be
reproduced depending on the sound format.

it A

DO NOT connect the power cord
gyms ourpur_._3|uGY|m|f at this time.

Wow. 0PTlCAL
L © um, I '

R© o b [1 Active
D Subwoofer
(for powerful bass

E % sound)

fi: Signal flow

[Making the analog connection with the amplifier ] $1 Signal flow

If your amplifier has no digital audio input, you can make the
analog connection. If the amplifier has a Dolby Pro Logic
decoder, you can reproduce the Dolby Pro Logic surround
sound.

Stereo audio connection cable

Note
Make sure that Audio Out Select" is set to Analog 2ch" (the
factory setting) to reproduce the Dolby Pro Logic surround sounds

with the analog connection. For details on the Audio Out Select" _ _ _ _ _ _
setting, see page 32. An amplifier With no digital connection

Not applicable for USA and Canadian models

Page 21

Playing in Random Order

Title : 1

You can play titles, chapters within a title, or tracks in random

order (Random playback).

,9
I0 I SEARCH
Number 3
buttons I (D

>>|

@3 G

lo

[0

CLEAR RAN DOM

/DVD ,VCII CD' /DVD
Playing Titles orTracks in Random Order Playing Chapters in Random Order

The DVD Player automatically selects the titles in a DVD video,
or tracks in a VIDEO CD/audio CD, and plays them randomly.

The DVD Player automatically selects the chapters in a title
and plays them randomly.

1 w
RANDOM
Press RANDOM twice while the
disc is stopped.
Then, press RANDOM repeatedly to
change the random play mode as follows:
Chapter Random -> Title Random

R .1
Random off

Title Random

w as;
Press RANDOM once while the disc
is stopped.

Then, press RANDOM repeatedly to
alternate the mode as follows:

Track Random <-> Random off

Track Random
Track :

If you press RANDOM during playback,
the DVD Player automatically starts
random playback after finishing the
current title or track.

2 6%) Within 5 seconds, press >.
{RI The DVD Player starts random playback.

I To resume normal playback

CLEAR

( ) Press CLEAR.

Notes

- Some discs may not permit random playback operation.

- You cannot use the random playback function together with the
memory playback function.

- If you press »I during random playback, the DVD Player goes to
another title or track and continues random playback.

Press SEARCH, then press the
appropriate number button(s) for
the title which contains the
chapters you want to play in
random order.

e.g. To play the chapters in title 2 in random
order

SEARCH
-> Title :
Chapter, 1

Press RANDOM while the disc is
stopped.

Chapter Random

Title :-
Chapter: 1

If you press RANDOM during playback,
the DVD Player automatically starts
random playback after finishing the
current chapter.

3&5

Within 5 seconds, press >.
The DVD Player starts random playback.

I To resume normal playback

CLEAR

0 Press CLEAR.

Notes

- You can also use @ (plus ten button) to add ten to the number.

- Some discs may not permit random playback operation.

- You cannot use the random playback function together with the
memory playback function.

- If you press »I during random playback, the DVD Player goes to
another chapter and continues random playback.

21

Page 35

I To change your 4-digit security code

After selecting On or Off" and pressing ENTER in step 4 of
Setting Steps on page 28:

1 Press STOP four times. then press ENTER.

STOP STOP STOP STOP

<3 a <3 ~ <3 a <3 a ®
The 4-digit security code is cleared.

2 Press the number buttons to create a new 4-digit security
code.

3 Press ENTER.

Title Stop 3%

- Off: The DVD Player continues playback after
playback of a title is complete.

- On: The DVD Player stops playback after playback
of a title is complete.

PBC 39

PBC is the abbreviation for Playback Control (see
About VIDEO CDs" on page 11.)

- Off: Select to play a PBC-featured VIDEO CD
without using the menu screen.

- On: Select to view the menu screen when playing
a PBC-featured VlDEO CD.

35
