Page 1

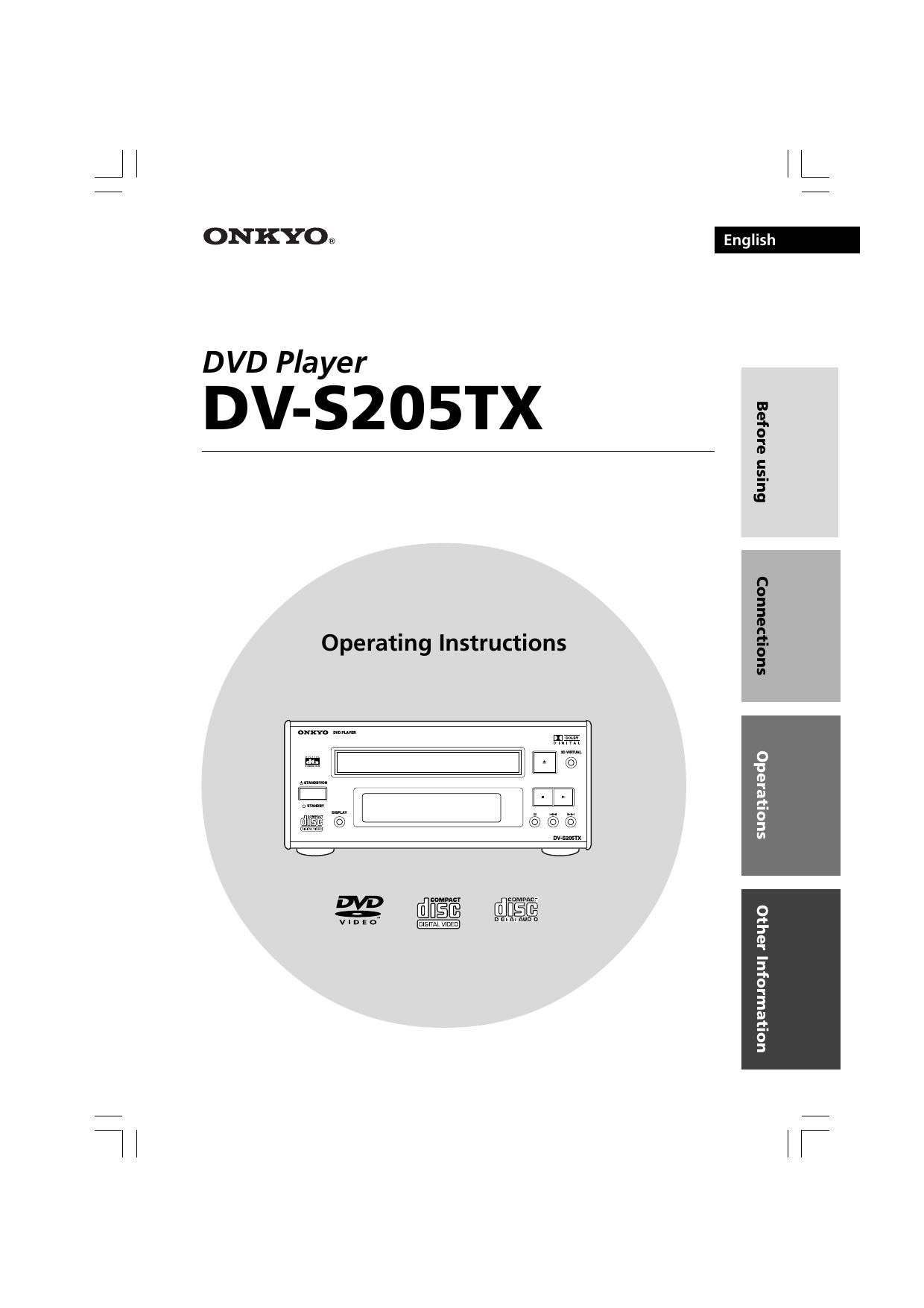

21.Read Instructions – All the safety and operating instructions should be read before the appliance is operated. 2.Retain Instructions – The safety and operating instructions should be retained for future reference. 3.Heed Warnings – All warnings on the appliance and in the operating instructions should be adhered to. 4.Follow Instructions – All operating and use instructions should be followed. 5.Cleaning – Unplug the appliance from the wall outlet before cleaning. The appliance should be cleaned only as recommended by the manufacturer.6.Attachments – Do not use attachments not recommended by the appliance manufacturer as they may cause hazards. 7.Water and Moisture – Do not use the appliance near water –for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.PORTABLE CART WARNINGS3125AThank you for purchasing ...Thank you for purchasing the ONKYO DV-S205TX DVD Player. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain the optimum performance and listening enjoyment from your new DV-S205TX. Please retain this manual for future reference.Important SafeguardsBefore using8.Accessories – Do not place the appliance on an unstable cart, stand, tripod, bracket, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the appliance. Any mounting of the appliance should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufacturer.9. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.WARNINGRISK OF ELECTRIC SHOCK DO NOT OPENRISQUE DE CHOC ELECTRIQUE NE PAS OUVRIRAVIS
Page 2
Before Using Other Information317.Servicing – Do not attempt to service the appliance yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 18.Damage Requiring Service – Unplug the appliance form the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen into the appliance, C. If the appliance has been exposed to rain or water, D. If the appliance does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to its normal operation, E. If the appliance has been dropped or damaged in any way, and F. When the appliance exhibits a distinct change in performance – this indicates a need for service. 19.Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 20.Safety Check – Upon completion of any service or repairs to the appliance, ask the service technician to perform safety checks to determine that the appliance is in proper operation condition. 21.Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer. 22.Heat – The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. 10.Ventilation –Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the appliance and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface. The appliance should not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided. There should be free space of at least 5 cm (2 in.) and an opening behind the appliance.11.Power Sources – The appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. 12.Grounding or Polarization – The appliance may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.13.Power-Cord Protection – Powersupply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.14.Lightning – For added protection for the appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the appliance due to lightning and power-line surges. 15.Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.16.Object and Liquid Entry – Never push objects of any kind into the appliance through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.Important Safeguards
Page 7
8Notes on discsNever use heart-shaped, octagonal, or other special shaped discs as they may damage the internal mechanisms of the DV-S205TX.Label side Data sideNotes on discsCautions when using rented compact discsDo not use discs that have cellophane tape attached to them or rental compact discs that have rental labels attached. If the tape is sticking out or peeling off, the disc may not be able to be ejected and the DV-S205TX may become damaged.Do not use 8-cm CD adapters.Condensation When moving the DV-S205TX from a cold location to a hot location, when quickly heating a cold location with a furnace, or other similar situation, condensation may occur. This may not only cause improper operation of the device, but may also damage the discs and components. If condensation has occurred, turn on the DV-S205TX and leave it running for 1 to 2 hours. If you will not use the DV-S205TX, then eject any disc inside. If the dirt is excessive, soak the cloth in water, wring it out, and then wipe the disc surface clean. Next, using a soft dry cloth, wipe the moisture from the disc surface. Do not use conventional record cleaners or antistatic agents. Also, never use benzene, thinners, or other volatile agents as they may damage the disc surface.Cautions for disc storageDo not store discs in locations exposed to direct sunlight, near heat emitting devices, and other locations of excessive heat, or locations of extremely low temperatures. Also, always store discs properly in their protective cases.CleaningDirt and contaminants on discs can obstruct the pickup of the signals and lead to deterioration the sound. When dirty, clean the data side with a soft dry cloth, wiping from the inside of the disc toward the outside. Never place labels or stickers on the data side or label side of the discs. Also, do not write on the discs or allow them to become scratched. Do not play CD-ROMs intended for computer use or non-audio compact discs. Doing so may cause high- pitched noises or other unpredictable results that may damage speakers, amplifiers, and other connected components.Handling discsBe careful not to touch the data side of the disc (the side that does not have printing on it). Always hold discs by the edges or by using the hole in the middle.
Page 17
18IN VIDEO-1OUT IN VIDEO-2 IN VIDEO-1MONITOR OUTVIDEOS VIDEOMONITOR OUT CENTER OUT IN VIDEO-2IN VIDEO-1OUT IN VIDEO-2 IN OUT PROCESSORFRONT SUB- WOOFERSURROUNDCENTER R LSPEAKERS SUBWOOFER PREOUTSURROUNDMULTI CHANNEL INPUTL RANALOG OUTPUT5.1 CH 2 CHCENTERSUBWOOFERSURRFRONTDIGITAL OUTPUTOPTICALREMOTE CONTROLAC OUTLET UNSWITCHED 100W MAX.PBPRCOMPONENT VIDEOYS VIDEOVIDEO OUTPUTL RSPEAKERSOUTINL ROUTMD CDR TAPE CDINLINE/DVDPROCESSOROUT IN OUT INREMOTE CONTROLLRL RL RAMFM75ANTENNA AC OUTLETAC 230-240V 50Hz SWITCHED 100W MAX.Connecting to the R-805TX (FM Stereo/AM Tuner Amplifier) and ED-205 (AV Surround Processor)ED-205R-805TX DV-S205TXTVS video cable (supplied)Video connection cable (supplied) Audio connection cable (supplied)z cable (supplied)L (White) R (Red)Set "AUDIO OUT" to "SPDIF/RAW". When making analog recording etc., set "AUDIO OUT" to "SPDIF/PCM" to output 2 channel audio signal. (See page 44.)Connecting the DV-S205TXDO NOT connect the power cord until all connections are complete.
