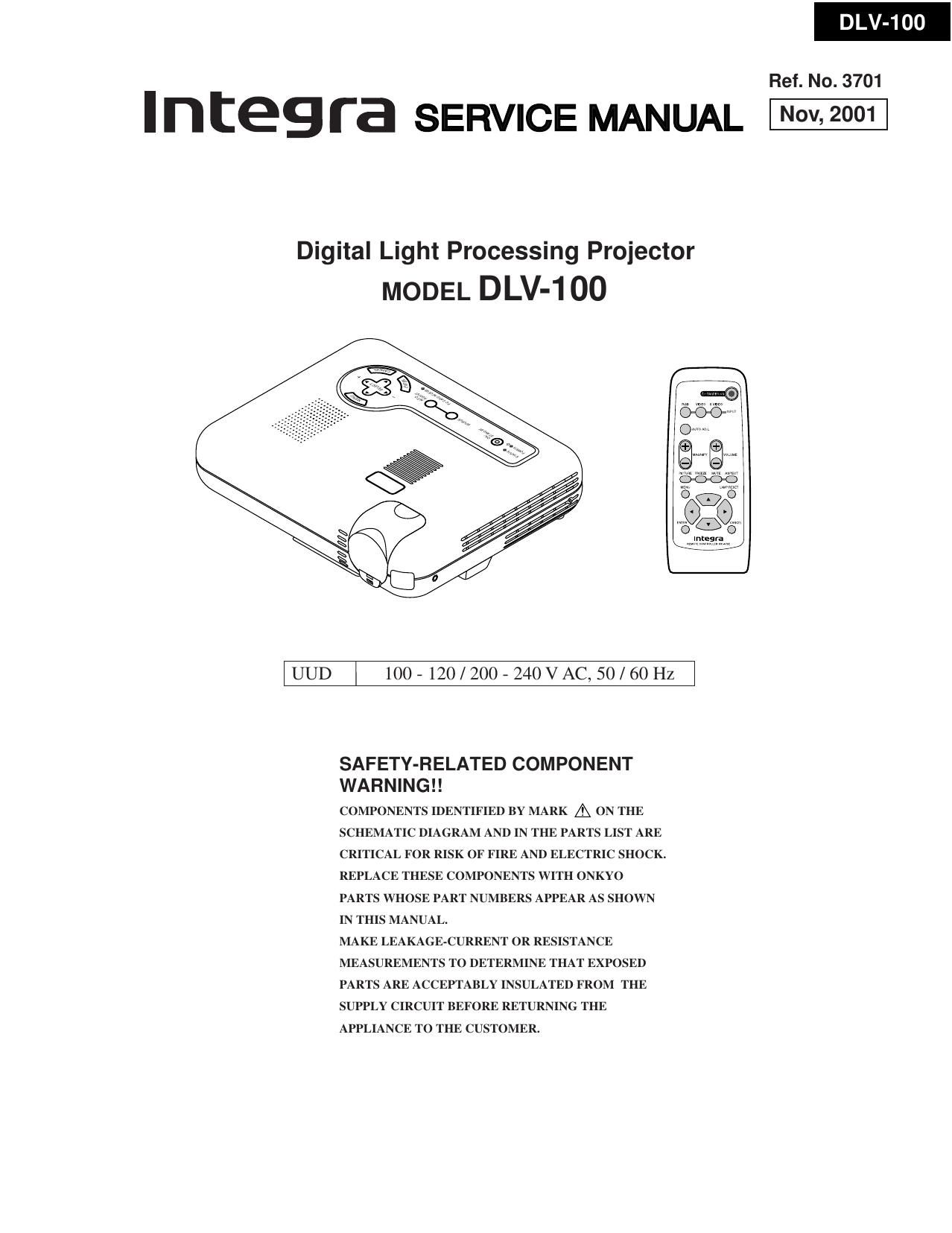

Onkyo DVL 100 Service Manual

Page 1

1. Application This specification sheet applies for DLV-100. yyyModelyyyyy DLV-100 yyyNEC Model code 01152009 2. General 2. General 2. General 2. General 2.1 Operation temperature range +5 ~ +35 degree C (Humidity 20-80%RH, not in the dewfall.) 2.2 Storage temperature range -10 ~ +50 degree C 2.3 Power source 100 ~ 120 VAC / 200 ~ 240 VAC +/-10%, 50 / 60 Hz 2.4 Input Current 2.2/1.1A (MAX.) 2.5 Inspection condition Inspection shall be done by AC120V / 60 Hz unless no rule is specified. As for the projection condition, the screen is perpendicularly installed to the set and the projection screen is in WIDE condition of 60 inches. When test, inspector shall be 2 +/- 0.3 m away from the screen. Fig. 1 Condition 3. Main parts specifications 3. Main parts specifications 3. Main parts specifications 3. Main parts specifications 3.1 DMD panel Single Chip Digital Micromirror Device(DMD) 1024 x 768 pixels 3.2 Lens Manual zoom and focus F-no.=2.61~2.84, f=28.35~34.02mm 3.3 Lamp yyy 135W DC Lamp Average lifetime 1,000H yyy The definition of average lifetime is the time that light becomes half with the continuous lighting-up. (Notes) The lamp bulb can be ruptured, while using a projector. When the lamp bulb is ruptured, there is a small crack and pieces of glass, which may be scattered in the lamp case. 2 ¶ 0.3 m Screen Ins pector DLV-100
