Extracted text from Onkyo DVCP 701 Owners Manual (Ocr-read)

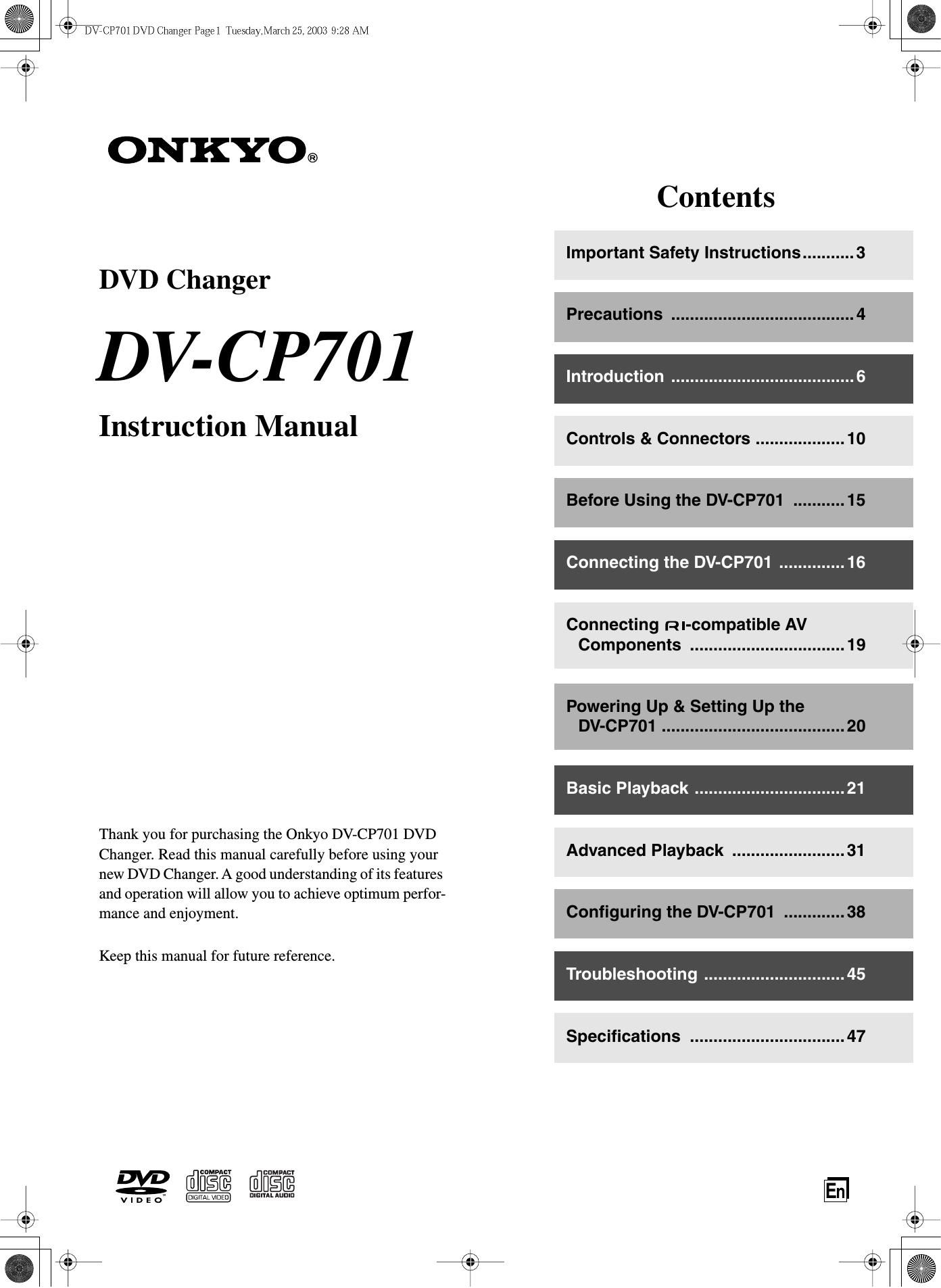

Page 1
2 Contents Important Safety Instructions ............................3 Precautions .........................................................4 Introduction .........................................................6 Supplied Accessories.........................................6 DV-CP701 Features...........................................6 Disc Notes..........................................................7 DV-CP701-related Terminology .........................9 Controls & Connectors......................................10 Front Panel .......................................................10 Display ..............................................................11 Rear Panel ........................................................12 Remote Controller .............................................13 Before Using the DV-CP701 ..............................15 Installing the Remote Controllers Batteries ......15 Using the Remote Controller.............................15 Connecting the DV-CP701.................................16 Before Making Any Connections.......................16 AV Cables & Connectors ..................................16 Connecting Your TV or Projector ......................17 Connecting Your Hi-Fi Amp ..............................18 Connecting for Dolby Digital or DTS .................18 Connecting -compatible AV Components..19 Connection Diagram .........................................19 Powering Up & Setting Up the DV-CP701 ........20 Powering Up the DV-CP701 .............................20 First Time Setup................................................20 Basic Playback ...................................................21 Loading & Removing Discs ...............................21 Loading Discs During Playback ........................21 Selecting Discs .................................................22 Starting, Pausing & Stopping Playback ............22 Navigating Disc Menus .....................................24 Selecting Titles & Chapters by Number ............25 Using the Disc Navigator ..................................26 Memory Playback in the Disc Navigator ...........27 Selecting Tracks by Number .............................28 Fast Forward & Reverse ...................................28 Frame-by-Frame Playback ...............................29 Slow-motion Playback.......................................29 Adjusting the Display Brightness ......................29 Using JPEG CDs ..............................................30 Using Chain Mode ............................................30 Advanced Playback ........................................... 31 Locating Specific Points in Time ...................... 31 Repeat Playback .............................................. 31 A–B Repeat Playback ...................................... 32 Random Playback ............................................ 32 Memory Playback............................................. 33 Selecting Camera Angles................................. 34 Selecting Languages & Audio Formats ............ 35 Selecting Subtitles............................................ 35 Using Progressive Scanning ............................ 35 Using Last Memory .......................................... 36 Displaying Information...................................... 37 Configuring the DV-CP701 ................................ 38 Using the Onscreen Setup Menus ................... 39 Picture Menu .................................................... 39 Audio Menu ...................................................... 41 Language Menu ............................................... 41 Display Menu ................................................... 42 Operation Setting Menu ................................... 43 Initial Setup Menu ............................................ 44 Selecting Other Languages.............................. 44 Language Code List ......................................... 44 Troubleshooting ................................................ 45 Specifications .................................................... 47
Page 2
3 Important Safety Instructions 1. Read Instructions – All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions – The safety and operating instructions should be retained for future reference. 3. Heed Warnings – All warnings on the appliance and in the operating instructions should be adhered to. 4. Follow Instructions – All operating and use instructions should be followed. 5. Water and Moisture – Do not use the appliance near water –for example, near a bath tub, wash bowl, kitchen sink, or laun- dry tub; in a wet basement; or near a swimming pool; and the like. 6. Cleaning – Unplug the appliance from the wall outlet before cleaning. The appliance should be cleaned with a dry cloth or only as recommended by the manufacturer. 7. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the appliance and to protect it from overheating, and these openings must not be blocked or covered. Do not use the appliance on a bed, sofa, rug, or other such surface. Newspapers, table clothes, curtains, and other items can inadvertently block ventilation slots. Do not place the unit near curtains that could obstruct the ventila- tion. If you install the appliance in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the appliance should be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape. 8. Heat – The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appli- ances (including amplifier) that produce heat. 9. Grounding or Polarization – The appliance may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety pur- pose of the polarized or grounding-type plug. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.11. Attachments – Do not use attachments not recommended by the appliance manufacturer as they may cause hazards. Accessories – Do not place the appliance on an unstable cart, stand, tripod, bracket, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the appliance. Any mounting of the appliance should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufacturer. 12. An appliance and cart combination should be moved with care to avoid injury from tip-over. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 13. Lightning – For added protection for the appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and discon- nect the antenna or cable system. This will prevent damage to the appliance due to lightning and power-line surges. 14. Servicing – Do not attempt to service the appliance yourself as opening or removing covers may expose you to dangerous volt- age or other hazards. Refer all servicing to qualified service personnel. Damage Requiring Service – Unplug the appliance form the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen into the appliance, C. If the appliance has been exposed to rain or water, D. If the appliance does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to its normal operation, E. If the appliance has been dropped or damaged in any way, and F.When the appliance exhibits a distinct change in perfor- mance – this indicates a need for service. 15. Object and Liquid Entry – Never push objects of any kind into the appliance through openings as they may touch danger- ous voltage points or short-out parts that could result in a fire or electric shock. The appliance should not be exposed to dripping or splashing and no objects filled with liquids, such as vases should be placed on the appliance. Dont put candles or other burning objects on top of this unit. 16. Batteries – Always consider the environmental issues and fol- low local regulations when disposing of batteries. WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNINGRISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS PORTABLE CART WARNING S3125A
Page 5
6 Introduction Make sure you have the following accessories: Highlights - Dolby *1 Digital and DTS *2 -Holds up to six discs - Chain mode for successive disc playback -D VD-Video playback -V ideo CD playback - Audio CD playback - MP3/WMA *3 playback - JPEG picture display and slideshow - CD-R, CD-RW (Video CD, audio CD, MP3/WMA/JPEG) -D VD-R, DVD-RW (DVD-Video) - Direct digital path for signal purity -V ector Linear Shaping Circuitry Video - Advanced 54 MHz/10-bit video D/A converter - Component video output -S -Video and composite video outputs -T itle, chapter, track, or time search -P ause/Still setting for enhanced display of single frames - Frame-by-frame playback - Slow motion playback (four speeds) -F ast forward and reverse (five speeds) - Last Memory function allows you to resume playback from a specific point on a DVD-Video disc or Video CD, even if that disc has been removed from the DV-CP701 - Repeat playback options include: Chapter, Title, 1 Disc, All Discs, Track, and Folder (MP3/WMA) - Random playback options include: Title, 1 Disc, All Discs, and Folder (MP3/WMA) - Supports 4:3 and 16:9 aspect ratio TVs - Supports up to 8 soundtracks/languages - Supports up to 32 subtitle languages - Multiple camera angle support -P arental Lock function - Screen Saver function Audio - Audiophile-class performance - Direct digital path - 192 kHz/24-bit D/A converter - Coaxial digital output - Optical digital output - Analog output Others - Load discs without stopping playback - Dynamic Range Control setting - Adjustable display brightness Supplied Accessories Remote controller (RC-542DV) & 2 batteries (AA) AV connecting cable (RCA/phono) S-Video connecting cable cable DV-CP701 Features *1. Manufactured under license from Dolby Laboratories. Dolby and the double-D logo are trademarks of Dolby Laboratories. *2. DTS is a trademark of Digital Theater Systems, Inc. *3. Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.
Page 10
11 Controls & Connectors -Continued For detailed information, refer to the pages in parenthesis. 1 CHAIN MODE, ALL, DVD & CD indicators (30) The CHAIN MODE indicator appears when the Chain mode function is on. The ALL, DVD, and CD indicators show the type or Chain mode selected. 2 DISC indicator (22) The number of the currently selected disc appears here. 3 TITLE indicator (22) While stopped, the total number of titles on the current DVD-Video disc is displayed here. During playback, the number of the current title is displayed. 4 CHP indicator This indicator appears while the number of the current chapter is being displayed. 5 TRACK indicator This indicator appears while track numbers are being displayed. While stopped, the total number of tracks on the current Video CD, audio CD, or MP3/WMA disc are displayed. During playback, the number of the current track is displayed. 6 PRGV indicator (35) This indicator appears when the Progressive Scanning function is on. 7 LAST indicator (36) This indicator appears when the Last Memory function has been set. 8 TOTAL indicator (37) This indicator appears while the total time is being dis- played. 9 REMAIN indicator (37) This indicator appears while the remaining time is being displayed. 0 Camera angle indicator (34) This indicator appears if the DVD-Video disc being played features multiple camera angles. A Play indicator (22) This indicator is shown during playback. B Pause indicator (10) This indicator appears when playback is paused. C Disc indicators 1–6 (21) These indicators show how many discs are loaded. The number of the current disc has a circle around it. When the disc tray is closed, all of the disc indicators appear until the DV-CP701 has checked each bay for the presence of a disc. If a bay is found to have no disc, the corresponding indicator disappears. D Chapter & track number Chapter and track numbers appears here. E Time display Time information, such as total time, remaining time, and so on, is displayed here in hours, minutes, and sec- onds. Other messages are also displayed. F VCDVD indicator This indicator shows the type of disc currently selected: DVD: DVD-Video, DVD-R, or DVD-RW VCD: Video CD CD: Audio CD, MP3/WMA/JPEG CD-R, or CD-RW Display CD DVDALL CHAIN MODE DISC TITLE CHP TRACK PRGV LAST TOTAL REMAIN 1 2 3 4 5 6 VCDVD 13 DEF 45 67 8 90AB C 2
Page 15
16 Connecting the DV-CP701 This chapter explains how to connect the DV-CP701 to your other AV components. -Read the manuals supplied with your AV components. -Dont connect the power cord until youve completed all audio and video connections. Optical Digital Inputs The DV-CP701s optical digital connector has a dust cap for keeping out dust and dirt when its not in use. Remove the cap before inserting an optical digital plug. Push the plug in all the way to make a good connec- tion. Keep the dust cap in a safe place for future use. RCA/phono AV Connection Color Coding RCA/phono AV connections are usually color coded: red, white, and yellow. Use red plugs to connect right-channel audio inputs and outputs (typically labeled R). Use white plugs to connect left-channel audio inputs and outputs (typi- cally labeled L). And use yellow plugs to connect compos- ite video inputs and outputs. -Push the plugs in all the way to make a good connection. -To prevent interference, keep audio and video cables away from power cords and speaker cables. Before Making Any Connections Analog audioRight (red) Left (white) (Yellow) Right (red) Left (white) (Yellow)Composite video Wrong! Right! AV Cables & Connectors Video Component video Component video separates the luminance (Y) and color difference signals (P R , P B ), providing the best picture quality. (Some TV manufacturers label their component video inputs slightly differently.) S-Video S-Video provides better picture quality than composite video. Composite video Composite video can be found on virtually all TVs, VCRs, and other video equipment. Use only dedicated composite video cables. Audio Optical digital Optical digital audio connections with the optical digital audio output and a suitable AV receiver, you can enjoy DVD-Videos with surround sound. Coaxial digital Coaxial digital audio connections with the coaxial digi- tal audio output and a suitable AV receiver, you can enjoy DVD-Videos with surround sound. Analog RCA/phono analog audio connectors can be found on virtually all AV components. CR CB Y C R CB PR PB P/ / / /R PB Y YP B PR S VIDEO VIDEO OPTICAL COAXIAL LRAUDIO
Page 36
37 Advanced Playback -Continued You can display various information about the current disc, title, chapter, or track as follows. Displaying Information 1 During playback, press the [DIS- PLAY] button. Various information appears onscreen. The operating status (e.g., Stop, Play, Resume), disc number, and disc type information is displayed along the top of the screen. The other information depends on the type of disc currently selected, as follows: DVD-Video: Current title number, total number of titles on disc, elapsed title time, remaining title time, total title time, selected soundtrack, selected subtitle, and the number of available camera angles. Video CD, audio CD: Current track number, total number of tracks, elapsed track time, remaining track time, and total track time. MP3/WMA disc: Track name, current track, elapsed track time, folder name, current folder, total number of tracks, total number of folders. 2 Press the [DISPLAY] button again to see more information. DVD-Video: Current chapter number, total number of chapters in title, elapsed chapter time, remaining chapter time, total chapter time, and bit rate. Video CD, audio CD: Current track number, total number of tracks, elapsed disc time, remaining disc time, and total disc time. (Does not work with PBC Video CDs.) MP3/WMA disc: Title, artist name, album name, year, genre, comment. 3 Press the [DISPLAY] button again to cancel the information display. 4 If the current disc is an MP3/WMA disc, and you want to open the Disc Navigator, press the [DISPLAY] but- ton again. DISPLAY Remote controller DISPLAY Remote controller DISPLAY Remote controller DISPLAY Remote controller
