Onkyo DVC 702 Service Manual

This is the 107 pages manual for Onkyo DVC 702 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 107
Onkyo DVC 702 Service Manual

Extracted text from Onkyo DVC 702 Service Manual (Ocr-read)


Page 1

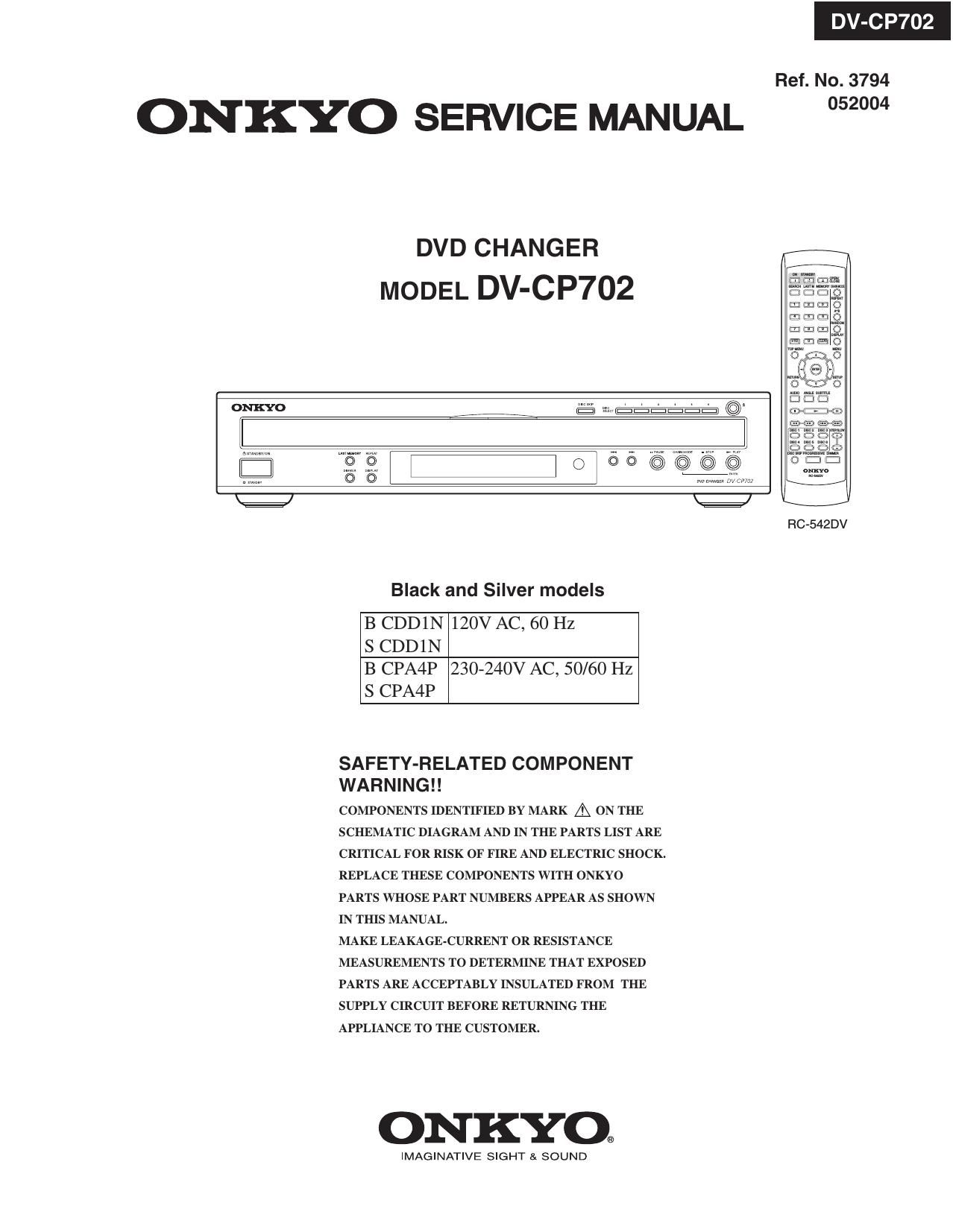

DV-C P702

Ref. No. 3794

ONKYO SERVICE MANUAL °52°°4

DVD CHANGER
MODEL DV-CP702

RC-542DV

Black and Silver models

B CDDlN 120V AC, 60 Hz
S CDDlN
B CPA4P 230-240V AC, 50/60 Hz
S CPA4P

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO.

IMAGINATIVE SIGHT & SOUND
