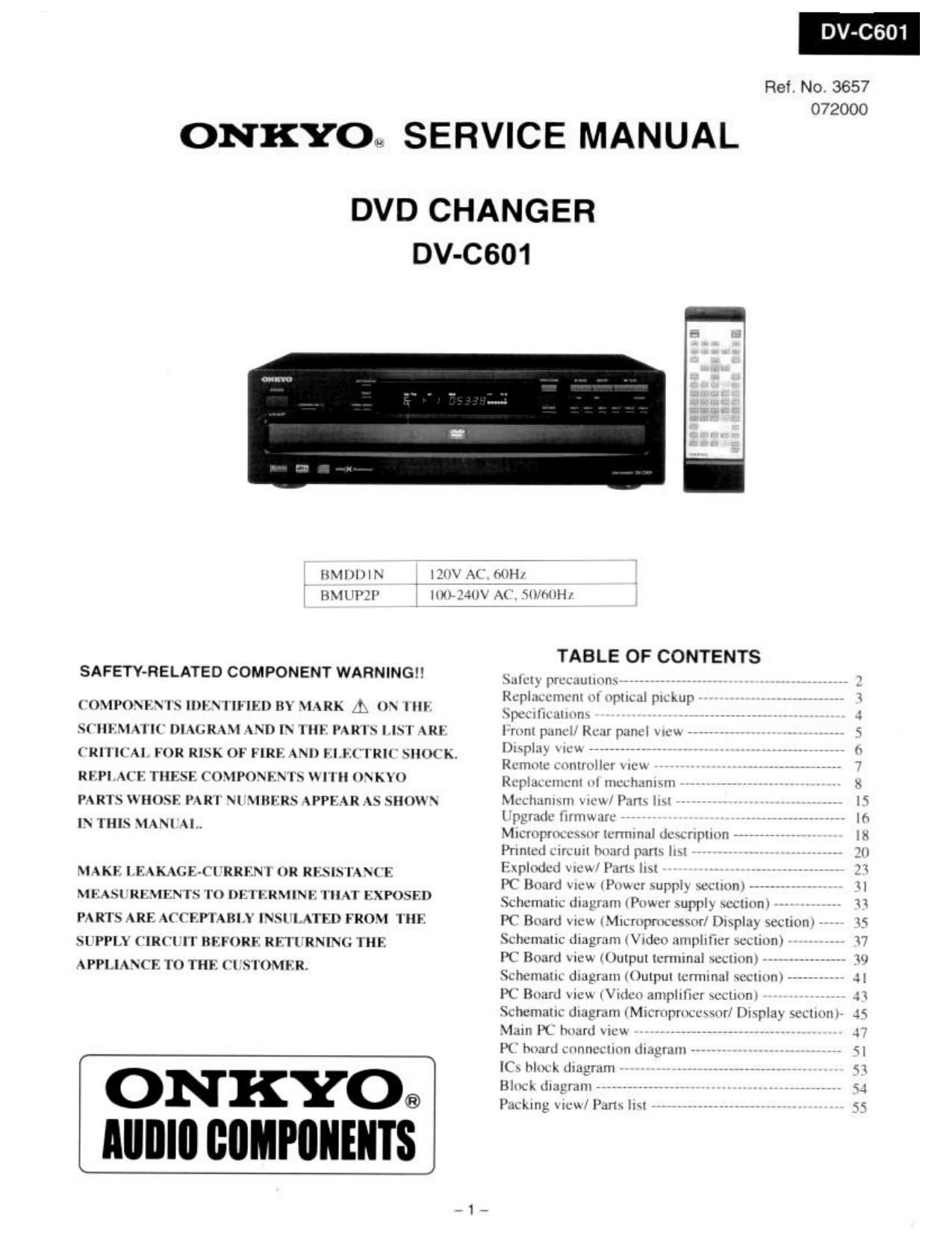

Onkyo DVC 601 Service Manual

Page 2

SAFETY PRECAUTIONS

WARN I NG The lightning Ilash with arrowhead symbol. within an equilateral triangle, is
RISK F I31 IV W intended to alert the user to the presence at uninsulated 'dangerous voltage'
within the products enclosure that may be of sufficient magnitude to constitute

a risk of electric shock to persons.

' menus DE ottoc ELECTKIME NE
AV I S pas ouvnrlt

Egg-wk: SHTO REDUCE THE R Km": The exclamation point within an equilateral triangle is intended to alert the user

(OR 0233' m ngkggv | gmtE to the presence of important operating and maintenance (servicing) instruction
PART INSIDE, REFER SERVIcIIIe T0 in the literature accompanying the appliance.
QUALIFIED SERVICE PERSDIOEL.

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION : POUR EVITEH LES cuocs ELECTRIOUE. INTRODUIRE LA LAME LA PLUS LARGE DA LA FICHE DANS LA
BORNE CORRESPONDANTE DA LA PRISE ET POUSSER JusoU' AU FOND.

PRECAUTIONS

Replacing the fuses

For continued protection against risk fire, replace only
with same type and same ran'ng fuse.

CIRCUIT No. PART No. DESCRIPTION
F90] 252157 |.25A-UUl'-237
F90] (M UPZP> 25207l 1.25A~SBEAWK

-l:|» This symbol located near the fuse indicates that the {use
used is fast operating type. For continued protection against fire
hazard, replace with same type fuse For fuse rating refer to the
marking adjacent to the symbol.

-':} Ce symbole indique que le fusible utlise est a rapide.
Pour une protection permanentc, n'utiliser que des fusibles de meme
type. Ce darmier est indique la qu Ie present symbol est oppose.

LASER BEAM CAUTION LABEL

CAUTION . VlEIELE LASER RADIATION WHEN OPEN
AND INTEHLOCK DEFEATED.
DO NOT STARE INTO BEAM.

ADVARsEL - LASERSTRALING VED AeNtNa, MAR

SIKKEHHEDSAFBHVDEHE ER DE AF
FUNKTION. SE IKKE IND I sTFt LEN.

mAHsEL- LASEHTRALING N R DEKSEL APNES
oe SIKKERHEDSL s aanEs
sTIFIR IKKE INN I STRALEN

VWING -OSYNL|G LAsEFIsTRALNING NAT!A DENNA

DEL AR OPPNAD OCH SPARRAFIA

WAVE LENGTH: 650nm UFIKOPFLADE. STIHHA EJ IN I SIR LEN.
MAX LASER POWER' 0- 50W vmi -AVATTAESSA JA SUOJALUKITUS
OHITETTAESSA OLET AL'I'I'IINA LASER
5' 559'" SATEILYLLE ALA TulJorA SATEESEEN
:IJ D-Tf-Hil' 0 fl 3 I -=l¥:'-J!B1Lfl?6km

Iz-I-fln
SUIT. E-bfim: UMtU Lkl-Z E.
5)! 29561564

When the power supply is being turned on. you may not remove this laser cautions

label, radiation of a laser may be received.

fickup Head consists of a laser diode that is very susceptible to external static electricity.
Although it operates properly after replacement, if it was subject to electrostatic discharge
during replacement. its life might be shortened. When replacing, use a conductive mat,
soldering iron with grand wire, etc. to protect the laser diode from damage by static
electricity. And also, the LSI and 1C are same as above.
