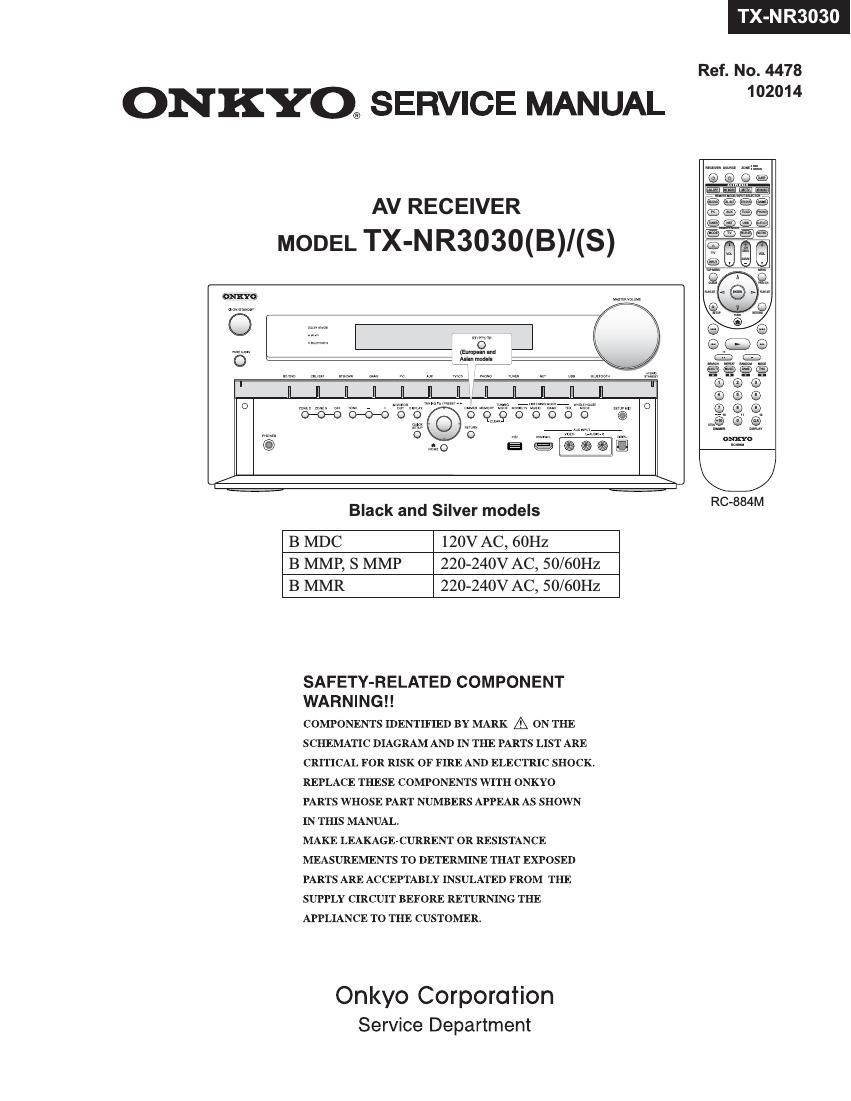

ONKYO. SERVICE MANUAL
AV RECEIVER
MODEL TX-N R3030(B)/(S)
Black and Silver models
B MDC 120V AC, 60Hz
B MMP, S MMP 220-240V AC, 50/60Hz
B MMR 220-240V AC, 50/60Hz
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
Onkyo Corporation
Service Department
TX-N R3030
Ref. No. 4478
102014
Page 2
DEBUG MODE-1
AUDIO DEBUG MODE-1I4
TX-NR1030/3030/ PR-SC553
AUDIO DEBUG MODE (Display mode of the audio information)
The operations of DSP and DIR etc are able to checked by the information displayed on FL in this debug mode.
This information will help to analysing digital audio no sound trouble.
To set in Debug mode
1. Press twice the ONISTANDBY key while pressing the DISPLAY key.
e'g' Main:
1.01/13515AE8
The version number of microprocessor is displayed
only for 3 seconds.
2. Press +(TONE) button while the version number of microprocessor is displayed.
e'g' DSP 1st/NET:
1.07/13514AEA
The version number of DSP is displayed
only for 3 seconds.
3. Press DISPLAY button while the version number of DSP is displayed.
99- 0A0002: :00
ANA:o:NON:
Step-1
4. Press DISPLAY button. I
59- 1:ANA 048k048k
2/0. 0.- 2.0:3/4
Step-2
5. Press DISPLAY button. I
69- 2:0:PCM :PCM
00:x:F: OFF
Step-3
6. Press DISPLAY button. I
99- SPO0F*00F00409
48 48256STB
Step-4
7. Press DISPLAY button. I
e-g- L:00
R:00
Step-5
8. Press DISPLAY button. I
99- 0:00
Step-6
9. Press DISPLAY button. I
e'Q'LS.00
RS:00
Step-7
%
Audio dubug mode
-i
10. Press DISPLAY button.
9"" LB:00
RB:00
11. Press DISPLAY button. 1
9"" LH:00
RH:00
12. Press DISPLAY button. I
e'g' LW:0 0
RW:0 0
13. Press DISPLAY button. I
99- sw;0 0
sw2;0 o
14. Press DISPLAY button.
Exit
Step-8
Step-9
Step-1O
Step-1 1
Page 151
82/94 PAGE
{.R3420 CHIP RESISTOR NETWORK YCN1M330-JK 1 43464C33004R1
ER3420 or CHIP RESISTOR NETWORK RM7LJ330X04 ( 1) 43484733004R2
{R3433 CHIP TYPE CARBON RESISTOR RN72K1J7470JE 1 435034704R1
.R3434 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
ER3435 CHIP TYPE CARBON RESISTOR RN72K1J7470JE 1 435034704R1
{R3436 CHIP TYPE CARBON RESISTOR RN72K1J7470JE 1 435034704R1
.R3437 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
ER3438 CHIP TYPE CARBON RESISTOR RN72K1J7470JE 1 435034704R1
{R3441 CHIP RESISTOR NETWORK YCN1043307JK 1 43464C33004R1
IR3441 or CHIP RESISTOR NETWORK RM7LJ330X04 ( 1) 43484733004R2
ER3442 CHIP RESISTOR NETWORK YCN10¢330~JK 1 43464C33004R1
{R3442 or CHIP RESISTOR NETWORK RM7LJ330X04 ( 1) 43484733004R2
1R3443 CHIP TYPE CARBON RESISTOR RN72K1J7000JE 1 435030004R1
ER3444 CHIP RESISTOR NETWORK YCN10¢330~JK 1 43464C33004R1
{R3444 or CHIP RESISTOR NETWORK RM7LJ330X04 ( 1) 43484733004R2
{.R3445 CHIP RESISTOR NETWORK YCN1M330-JK 1 43464C33004R1
ER3445 or CHIP RESISTOR NETWORK RM7LJ330X04 ( 1) 43484733004R2
{R3447 CHIP TYPE CARBON RESISTOR RN72K1J7560JE 1 435035604R1
1R3448 CHIP TYPE CARBON RESISTOR RN72K1J-221JE 1 435032214R1
ER3449 CHIP TYPE CARBON RESISTOR RN72K1J-560JE 1 435035604R1
{R3450 CHIP TYPE CARBON RESISTOR RN72K1J7560JE 1 435035604R1
1R3451 CHIP TYPE CARBON RESISTOR RN72K1J~560JE 1 435035604R1
ER3454 CHIP TYPE CARBON RESISTOR RN72K1J~103JE 1 435031034R1
{R3456 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
1R3460 CHIP TYPE CARBON RESISTOR RN72K1J-680JE 1 435036804R1
ER3461 CHIP TYPE CARBON RESISTOR RN72K1J7470JE 1 435034704R1
{R3462 CHIP TYPE CARBON RESISTOR RN72K1J7680JE 1 435036804R1
.R3463 CHIP TYPE CARBON RESISTOR RN72K1J-680JE 1 435036804R1
ER3464 CHIP TYPE CARBON RESISTOR RN72K1J~680JE 1 435036804R1
{R3465 CHIP TYPE CARBON RESISTOR RN72K1J7680JE 1 435036804R1
1R3466 CHIP TYPE CARBON RESISTOR RN72K1J7000JE 1 435030004R1
ER3467 CHIP TYPE CARBON RESISTOR RN72K1J7000JE 1 435030004R1
{R3468 CHIP TYPE CARBON RESISTOR RN72K1J7000JE 1 435030004R1
1R3469 CHIP TYPE CARBON RESISTOR RN72K1J7000JE 1 435030004R1
ER3477 CHIP RESISTOR NETWORK YCN10¢470~JK 1 43464C47004R1
{R3477 or CHIP RESISTOR NETWORK RM7LJ470X04 ( 1) 43484747004R2
{.R3478 CHIP RESISTOR NETWORK YCN1M470-JK 1 43464C47004R1
ER3478 or CHIP RESISTOR NETWORK RM7LJ470X04 ( 1) 43484747004R2
{R3501 CHIP TYPE CARBON RESISTOR RN72K1J~102JE 1 435031024R1
1R3502 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
ER3503 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
{R3505 CHIP TYPE CARBON RESISTOR RN72K1J7331JE 1 435033314R1
1R3507 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
ER3510 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
{R3511 CHIP TYPE CARBON RESISTOR RN72K1J7331JE 1 435033314R1
1R3512 CHIP TYPE CARBON RESISTOR RN72K1J7103JE 1 435031034R1
ER3513 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
{R3514 CHIP TYPE CARBON RESISTOR RN72K1J7331JE 1 435033314R1
1R3515 CHIP TYPE CARBON RESISTOR RN72K1J-221JE 1 435032214R1
ER3517 CHIP TYPE CARBON RESISTOR RN72K1J~221JE 1 435032214R1
{R3518 CHIP TYPE CARBON RESISTOR RN72K1J7331JE 1 435033314R1
1R3519 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
ER3520 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
{R3521 CHIP TYPE CARBON RESISTOR RN72K1J~101JE 1 435031014R1
1R3522 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
ER3524 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
{R3525 CHIP TYPE CARBON RESISTOR RN72K1J~102JE 1 435031024R1
1R3528 CHIP TYPE CARBON RESISTOR RN72K1J7103JE 1 435031034R1
ER3529 CHIP TYPE CARBON RESISTOR RN72K1J~101JE 1 435031014R1
{R3530 CHIP TYPE CARBON RESISTOR RN72K1J7331JE 1 435033314R1
1R3531 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
ER3533 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
{R3534 CHIP TYPE CARBON RESISTOR RN72K1J~101JE 1 435031014R1
1R3535 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
ER3536 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
{R3537 CHIP TYPE CARBON RESISTOR RN72K1J7331JE 1 435033314R1
1R3538 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
ER3539 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
