Onkyo DTR 60.6 Service Manual

Page 1

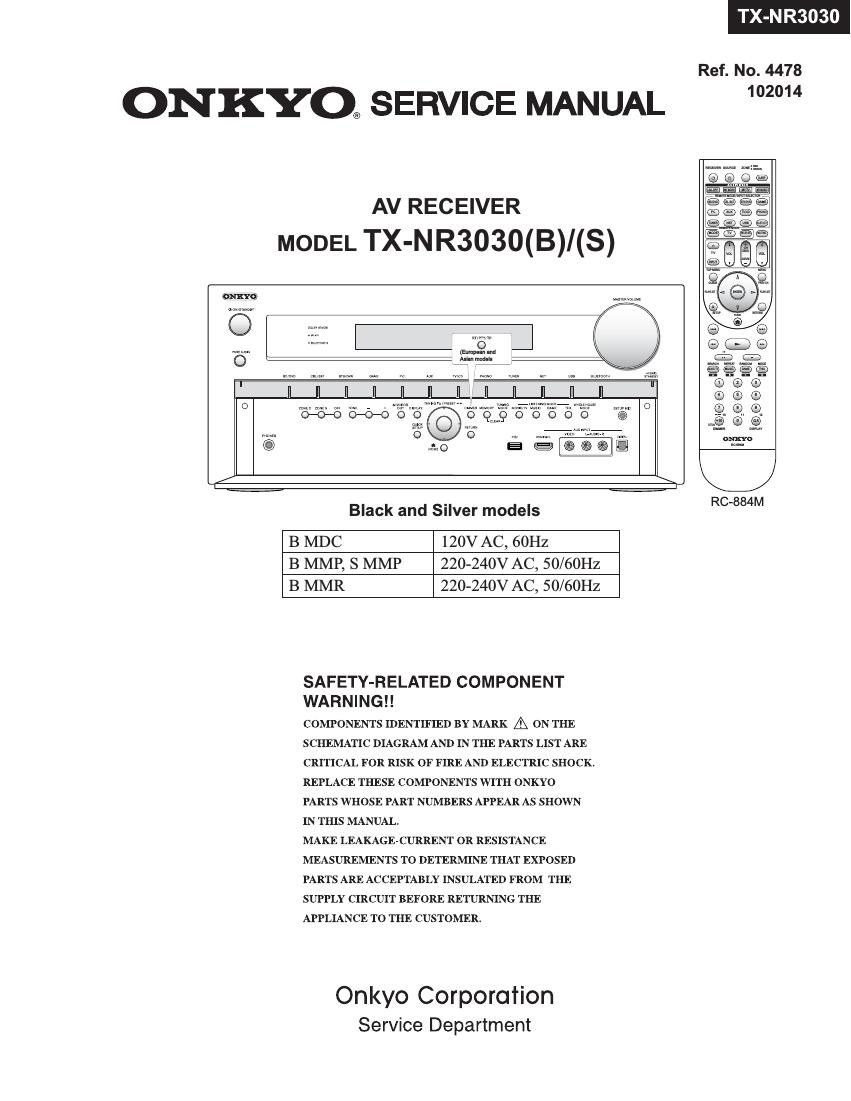

ONKYO. SERVICE MANUAL

AV RECEIVER

MODEL TX-N R3030(B)/(S)

Black and Silver models

B MDC 120V AC, 60Hz
B MMP, S MMP 220-240V AC, 50/60Hz
B MMR 220-240V AC, 50/60Hz

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

Onkyo Corporation
Service Department

TX-N R3030

Ref. No. 4478
102014

Page 2

DEBUG MODE-1
AUDIO DEBUG MODE-1I4

TX-NR1030/3030/ PR-SC553

AUDIO DEBUG MODE (Display mode of the audio information)
The operations of DSP and DIR etc are able to checked by the information displayed on FL in this debug mode.
This information will help to analysing digital audio no sound trouble.

To set in Debug mode

1. Press twice the ONISTANDBY key while pressing the DISPLAY key.

e'g' Main:

1.01/13515AE8

The version number of microprocessor is displayed

only for 3 seconds.

2. Press +(TONE) button while the version number of microprocessor is displayed.

e'g' DSP 1st/NET:

1.07/13514AEA

The version number of DSP is displayed

only for 3 seconds.

3. Press DISPLAY button while the version number of DSP is displayed.

99- 0A0002: :00
ANA:o:NON:

Step-1

4. Press DISPLAY button. I

59- 1:ANA 048k048k
2/0. 0.- 2.0:3/4

Step-2

5. Press DISPLAY button. I

69- 2:0:PCM :PCM
00:x:F: OFF

Step-3

6. Press DISPLAY button. I

99- SPO0F*00F00409
48 48256STB

Step-4

7. Press DISPLAY button. I

e-g- L:00
R:00

Step-5

8. Press DISPLAY button. I

99- 0:00

Step-6

9. Press DISPLAY button. I

e'Q'LS.00
RS:00

Step-7

%

Audio dubug mode

-i

10. Press DISPLAY button.

9"" LB:00
RB:00

11. Press DISPLAY button. 1

9"" LH:00
RH:00

12. Press DISPLAY button. I

e'g' LW:0 0
RW:0 0

13. Press DISPLAY button. I

99- sw;0 0
sw2;0 o

14. Press DISPLAY button.
Exit

Step-8

Step-9

Step-1O

Step-1 1

Page 104

35/94 PAGE

104161 HYBRID IC NJM4580M7D 1 22241448R2
104162 HYBRID IC NJM4580M-D 1 22241448R2
{04163 HYBRID IC NJM4580M7D 1 22241448R2
104301 HYBRID IC R2A15220FP 1 22242600R3
104341 HYBRID IC NJM4580M-D 1 22241448R2
{04342 HYBRID IC NJM4580M7D 1 22241448R2
104400 HYBRID IC NJM4580M7D 1 22241448R2
104401 HYBRID IC NJM4580M-D 1 22241448R2
{04403 TRANSISTOR RTAN43OC-T112v1 1 2217780R2
104405 TRANSISTOR RTAN43OC-T112~1 1 2217780R2
104407 TRANSISTOR RTAN43OC~T11271 1 2217780R2
{04409 TRANSISTOR RTAN43OC-T112v1 1 2217780R2
104504 HYBRID IC NJM4580M7D 1 22241448R2
104515 TRANSISTOR RTAN43OC~T11271 1 2217780R2
{04515 or TRANSISTOR RN1441 ( 1) 2215410R2
104517 TRANSISTOR RTAN43OC-T112~1 1 2217780R2
104517 or TRANSISTOR RN1441 ( 1) 2215410R2
{04520 TRANSISTOR RTAN43OC-T112v1 1 2217780R2
104520 or TRANSISTOR RN1441 ( 1) 2215410R2
104521 TRANSISTOR RTAN43OC~T11271 1 2217780R2
{04521 or TRANSISTOR RN1441 ( 1) 2215410R2
104600 TRANSISTOR RTAN43OC-T112~1 1 2217780R2
104600 or TRANSISTOR RN1441 ( 1) 2215410R2
{04601 TRANSISTOR RTAN43OC-T112v1 1 2217780R2
104601 or TRANSISTOR RN1441 ( 1) 2215410R2
104602 TRANSISTOR RTAN43OC~T11271 1 2217780R2
{04602 or TRANSISTOR RN1441 ( 1) 2215410R2
104603 TRANSISTOR RTAN43OC-T112~1 1 2217780R2
104603 or TRANSISTOR RN1441 ( 1) 2215410R2
{04604 TRANSISTOR RTAN43OC-T112v1 1 2217780R2
104604 or TRANSISTOR RN1441 ( 1) 2215410R2
104605 TRANSISTOR RTAN43OC~T11271 1 2217780R2
{04605 or TRANSISTOR RN1441 ( 1) 2215410R2
104606 TRANSISTOR RTAN43OC-T112~1 1 2217780R2
104606 or TRANSISTOR RN1441 ( 1) 2215410R2
{04607 TRANSISTOR RTAN43OC-T112v1 1 2217780R2
104607 or TRANSISTOR RN1441 ( 1) 2215410R2
104608 TRANSISTOR RTAN43OC~T11271 1 2217780R2
{04608 or TRANSISTOR RN1441 ( 1) 2215410R2
104616 TRANSISTOR RTAN43OC-T112~1 1 2217780R2
104616 or TRANSISTOR RN1441 ( 1) 2215410R2
{04618 TRANSISTOR RTAN43OC-T112v1 1 2217780R2
104618 or TRANSISTOR RN1441 ( 1) 2215410R2
104620 TRANSISTOR RTAN43OC~T11271 1 2217780R2
{04620 or TRANSISTOR RN1441 ( 1) 2215410R2
104621 TRANSISTOR RTAN43OC-T112~1 1 2217780R2
104621 or TRANSISTOR RN1441 ( 1) 2215410R2
{04622 TRANSISTOR RTAN43OC-T112v1 1 2217780R2
104622 or TRANSISTOR RN1441 ( 1) 2215410R2
104623 TRANSISTOR RTAN43OC~T11271 1 2217780R2
{04623 or TRANSISTOR RN1441 ( 1) 2215410R2
104624 TRANSISTOR RTAN43OC-T112~1 1 2217780R2
104624 or TRANSISTOR RN1441 ( 1) 2215410R2
{04625 TRANSISTOR RTAN43OC-T112v1 1 2217780R2
104625 or TRANSISTOR RN1441 ( 1) 2215410R2
104626 TRANSISTOR RTAN43OC~T11271 1 2217780R2
{04627 TRANSISTOR RTAN43OC-T112v1 1 2217780R2
104628 TRANSISTOR RTAN43OC-T112~1 1 2217780R2
104628 or TRANSISTOR RN1441 ( 1) 2215410R2
{04629 TRANSISTOR RTAN43OC-T112v1 1 2217780R2
104629 or TRANSISTOR RN1441 ( 1) 2215410R2
104630 TRANSISTOR RTAN43OC~T11271 1 2217780R2
{04630 or TRANSISTOR RN1441 ( 1) 2215410R2
104631 TRANSISTOR RTAN43OC-T112~1 1 2217780R2
104631 or TRANSISTOR RN1441 ( 1) 2215410R2
{04640 TRANSISTOR RTAN43OC-T112v1 1 2217780R2
104640 or TRANSISTOR RN1441 ( 1) 2215410R2
104641 TRANSISTOR RTAN43OC~T11271 1 2217780R2

Page 154

85/94 PAGE

1R8098 CHIP TYPE CARBON RESISTOR RN72K1J-220JE 1 435032204R1
ER8099 CHIP TYPE CARBON RESISTOR RN72K1J~102JE 1 435031024R1
{R8100 CHIP TYPE CARBON RESISTOR RN72K1J~102JE 1 435031024R1
1R8101 CHIP TYPE CARBON RESISTOR RN72K1J-222JE 1 435032224R1
ER8102 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
{R8103 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
1R8104 CHIP TYPE CARBON RESISTOR RN72K1J-472JE 1 435034724R1
ER8105 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
{R8113 CHIP TYPE CARBON RESISTOR RN72K1J~101JE 1 435031014R1
1R8114 CHIP TYPE CARBON RESISTOR RN72K1J7101JE 1 435031014R1
ER8115 CHIP TYPE CARBON RESISTOR RN72K1J~104JE 1 435031044R1
{R8116 CHIP TYPE CARBON RESISTOR RN72K1J~100JE 1 435031004R1
1R8117 CHIP TYPE CARBON RESISTOR RN72K1J-222JE 1 435032224R1
ER8118 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
{R8121 CHIP TYPE CARBON RESISTOR RN72K1J7000JE 1 435030004R1
1R8122 CHIP TYPE CARBON RESISTOR RN72K1J-220JE 1 435032204R1
ER8123 CHIP TYPE CARBON RESISTOR RN72K1J~220JE 1 435032204R1
{R8124 CHIP TYPE CARBON RESISTOR RN72K1J7220JE 1 435032204R1
1R8125 CHIP TYPE CARBON RESISTOR RN72K1J-220JE 1 435032204R1
ER8126 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
{R8127 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
1R8128 CHIP TYPE CARBON RESISTOR RN72K1J7103JE 1 435031034R1
ER8129 CHIP TYPE CARBON RESISTOR RN72K1J~103JE 1 435031034R1
{R8130 CHIP TYPE CARBON RESISTOR RN72K1J~103JE 1 435031034R1
1R8131 CHIP TYPE CARBON RESISTOR RN72K1J7103JE 1 435031034R1
ER8151 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
{R8152 CHIP TYPE CARBON RESISTOR RN72K1J~100JE 1 435031004R1
1R8153 CHIP TYPE CARBON RESISTOR RN72K1J7100JE 1 435031004R1
ER8154 CHIP TYPE CARBON RESISTOR RN72K1J-562JE 1 435035624R1
{R8155 CHIP TYPE CARBON RESISTOR RN72K1J~100JE 1 435031004R1
1R8156 CHIP TYPE CARBON RESISTOR RN72K1J~562JE 1 435035624R1
ER8157 CHIP TYPE CARBON RESISTOR RN72K1J~100JE 1 435031004R1
{R8158 CHIP TYPE CARBON RESISTOR RN72K1J7562JE 1 435035624R1
1R8159 CHIP TYPE CARBON RESISTOR RN72K1J7100JE 1 435031004R1
ER8160 CHIP TYPE CARBON RESISTOR RN72K1J-562JE 1 435035624R1
{R8161 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
1R8162 CHIP TYPE CARBON RESISTOR RN72K1J7100JE 1 435031004R1
ER8163 CHIP TYPE CARBON RESISTOR RN72K1J-562JE 1 435035624R1
{R8164 CHIP RESISTOR NETWORK YCN1042227JK 1 43464C22204R1
IR8164 or CHIP RESISTOR NETWORK RM7LJ222X04 1 43484722204R2
ER8165 CHIP TYPE CARBON RESISTOR RN72K1J~103JE 1 435031034R1
{R8166 CHIP TYPE CARBON RESISTOR RN72K1J~124JE 1 435031244R1
1R8171 CHIP TYPE CARBON RESISTOR RN72K1J~562JE 1 435035624R1
ER8185 CHIP TYPE CARBON RESISTOR RN72K1J7000JE 1 435030004R1
{R8186 CHIP TYPE CARBON RESISTOR RN72K1J7000JE 1 435030004R1
1R8188 CHIP TYPE CARBON RESISTOR RN72K1J7100JE 1 435031004R1
ER8201 CHIP TYPE CARBON RESISTOR RN72K1J~103JE 1 435031034R1
{R8202 CHIP TYPE CARBON RESISTOR RN72K1J~103JE 1 435031034R1
1R8203 CHIP TYPE CARBON RESISTOR RN72K1J7101JE 1 435031014R1
ER8204 CHIP TYPE CARBON RESISTOR RN72K1J~101JE 1 435031014R1
{R8205 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
1R8206 CHIP TYPE CARBON RESISTOR RN72K1J7120JE 1 435031204R1
ER8207 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
{R8208 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
1R8209 CHIP TYPE CARBON RESISTOR RN72K1J7120JE 1 435031204R1
ER8210 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
{R8211 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
1R8212 CHIP TYPE CARBON RESISTOR RN72K1J~390JE 1 435033904R1
ER8213 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
{R8214 CHIP TYPE CARBON RESISTOR RN72K1J7390JE 1 435033904R1
1R8215 CHIP TYPE CARBON RESISTOR RN72K1J7120JE 1 435031204R1
ER8216 CHIP TYPE CARBON RESISTOR RN72K1J~390JE 1 435033904R1
{R8217 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
1R8218 CHIP TYPE CARBON RESISTOR RN72K1J7120JE 1 435031204R1
ER8219 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
{R8220 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
1R8221 CHIP TYPE CARBON RESISTOR RN72K1J7120JE 1 435031204R1
ER8222 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
