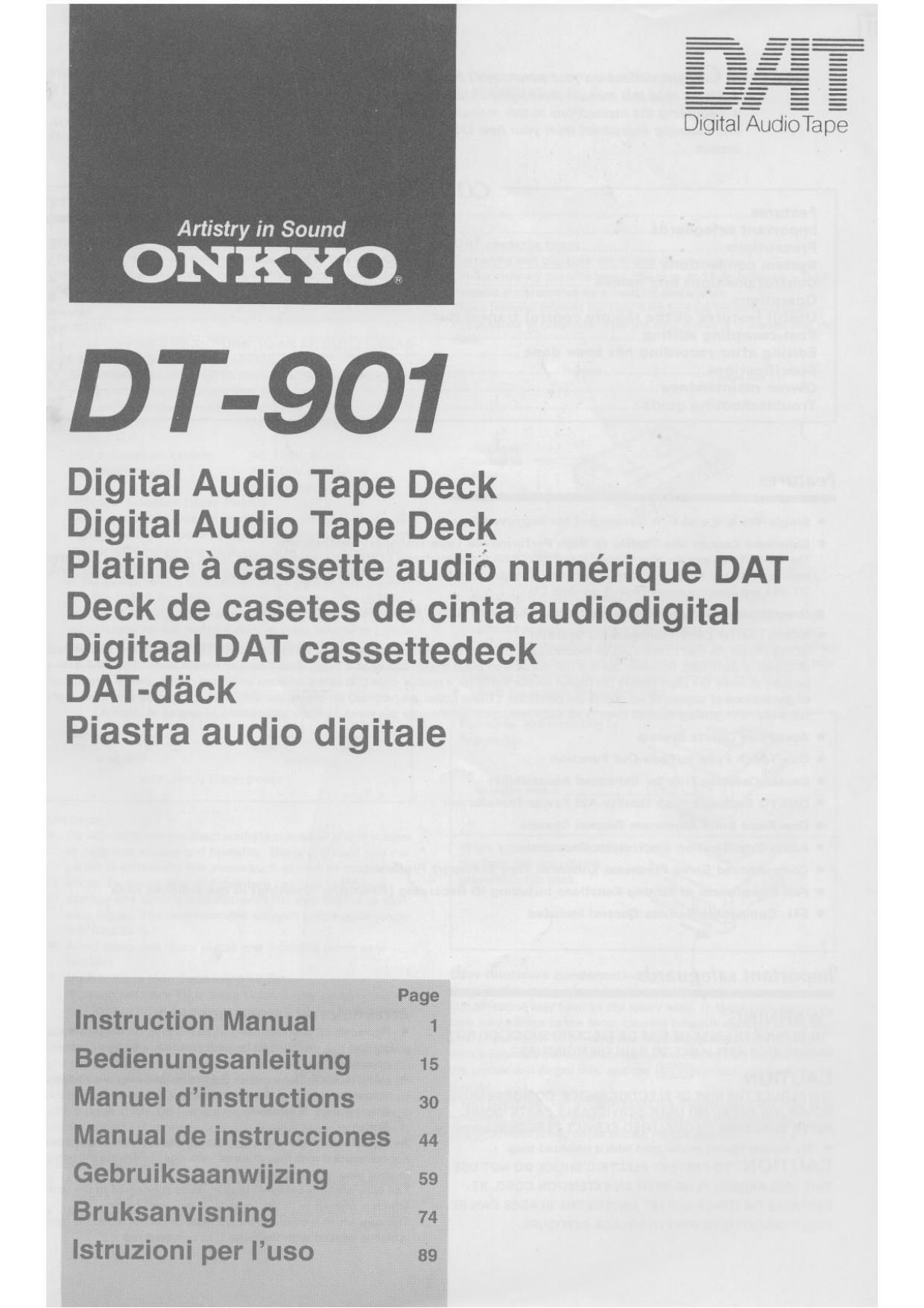

Onkyo DT 901 Owners Manual

Page 2

0 Congratulations on your purchase of the ONKYO 07-901 DigitalAudio Tape Deck.

I Please read this manual thoroughly before making connections and turning power on.

0 Following the instructions in this manual will enable you to obtain optimum performance
and listening enjoyment from your new DT.901. 0 Please retain this manual for future ref-
erence.

CONTENTS

Features
Important safeguards
Precautions
System connections.
Control positions and names
Operations .................................
Useful features of the remote control transmitter.
Post-recording editing .................................................
Editing after recording has been done
Specifications .......
Owner maintenance
Troubleshooting gmde.

Features
-

l Single~Bit A/D and WA Converters for Improved Sound

0 Enhanced Ease of Use Thanks to High Performance Tape Transport Mechanism
The DT-SOI features variable-speed FF and FIEW with a maximum rate of 400 times normal speed. It can wind through a 120»minute
Iape from start to finish in a mere 27 seconds Sluggish search access times were one at the weak points oi analog tape decks. The
CIT-901 provides convenience on a par with CD

0 Dramatically Reduced Mechanical Noise Thanks to Silent Record/Playback Design

0 SCMS (Serial Copy Management System)
SCMS allows the user to make digital recordings irom any digital source, including CD players and other DAT decks Only one generation
of copies is permitted, however. 80 it is not possible to make digital copies oi a copy. How does the system work? The DAT deck to
be used to make the copy checks the digital source signal for a special code that tells it whether unlimited copies. only a certain number
ol generations of copies. or no copies are permitted. (These codes are recorded on the master DAT tape along with the music signal.)
Naturally, with analog sources there is no such restriction, so the user can make as many generations of copies as desired.

AocuPulee Quartz System

One-Touch Fedo-lanade-Out Function

Canter Cassette Tray for Enhanced Accessibility

ONKYO Exclusive High Quality AEI Power Transformer

One-Piece Solid Aluminum Diecast Chassis

Audio-Specification Electrolytic Capacitors

Computerized Servo Processor Enhances Tape Transport Precision

Full Compliment of Editing Functions Including ID Recording (Rewriting, Deleting) in the Subcode Area
RI Compatible Remote Control Included

Important safeguards

-

WARNING" ATTENTION FOR BRITISH MODEL

~To REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, Do NOT ' Replacement and mounting of an AC plug on the power suppiv

EXPOSE THIS APPLIANCE T0 RAIN OR MOISTURE." cord oi this unit should be performed only by qualified servuce

personnel.

CAUTION 0 IMPORTANT: The wires In the mains lead are coloured in ac-

"TO REDUCETHE RISK OF ELECTRIC SHOCK, DO NOT REMOVE cordance with the following code:

COVER (OR BACK). N0 USERSERVICEABLE PARTS INSIDE. Blue: Neutral

REFER SERVICING T0 QUALIFIED SERVICE PERSONNEL. Brown: Live

. F0, models having Power cord with a polarized plug. As the colours of the wires in the mains lead of this apparatus may

CAUTION' TO PREVENT ELECTRIC SHOCK DO NOT USE not correspond with thecolournd markings identIlyIng the terminals
' in your plug, proceed as follows:

THIS (POLARIZED) PLUG WITH AN EXTENSION CORD RE' The wire which is coloured blue mustbeconnected to the termlnal

CEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE which is marked with the [mar N 07 coloured black.

FULLY INSEHTED T0 pREvENT BLADE Expogung The wire which iscolcurod brownmustbeconnected Io rheterminai

which is marked with the letter L or coloured red.

_1_

Page 8

Recording from a CD player using digital connections
Use the input switch (on the front panel) to choose either OPTICAL
or COAXIAL as appropriate.

0

ANAL G
COAXIAL o .DPTICN.
.

0 See the diagram on this page for details of how to connect the
deck to a CD player or other digital source to make recordings
using these digital connections.

I If when attempting a digital input recording, the decks digital
indicator flashes, recording using digital connections cannot
be performed. This may be due to one of the following two
reasons:

1, The digital connection has not been made correctly.

2. The signal lrom the digital input includes a copy guard flag.
There may also be other reasons why recording is not pos-
sible.

It the digital indicator flashes, stop the tape. Recheck the
connections, and/or change to analog input.

0 When recording from DAT using digital connections. if the
source deck TOC indicator is lit, the recording deck's
indicator will light. and recording using digital

connections is not possible.

Sampling frequency

Digital recording may use one of three sampling frequencies (48kHz.
44.1 kHz, and 32kHz) depending on the source. (Sampling' reiers
to part of the digital~to~analog conversion process.)

48kHz: Tapes recorded with analog input.

DAT music tapes available in stores.
44.1 kHz: DAT music tapes commonly available CDs etc.
32kHz:

The sampling frequency indicator display switches automatically
according on the input signal.

SCMS (Serial Copy Management System)

This DAT deck conlorms to the SCMS standard SCMS means
that single-generation digital copying can be performed from CD
player and DAT sources. Multiple-generation digital copies are not
possible.

Digital source

Making the most of digital recording

With digital input recording, because the digital signal is recorded
directly, you can achieve hi
