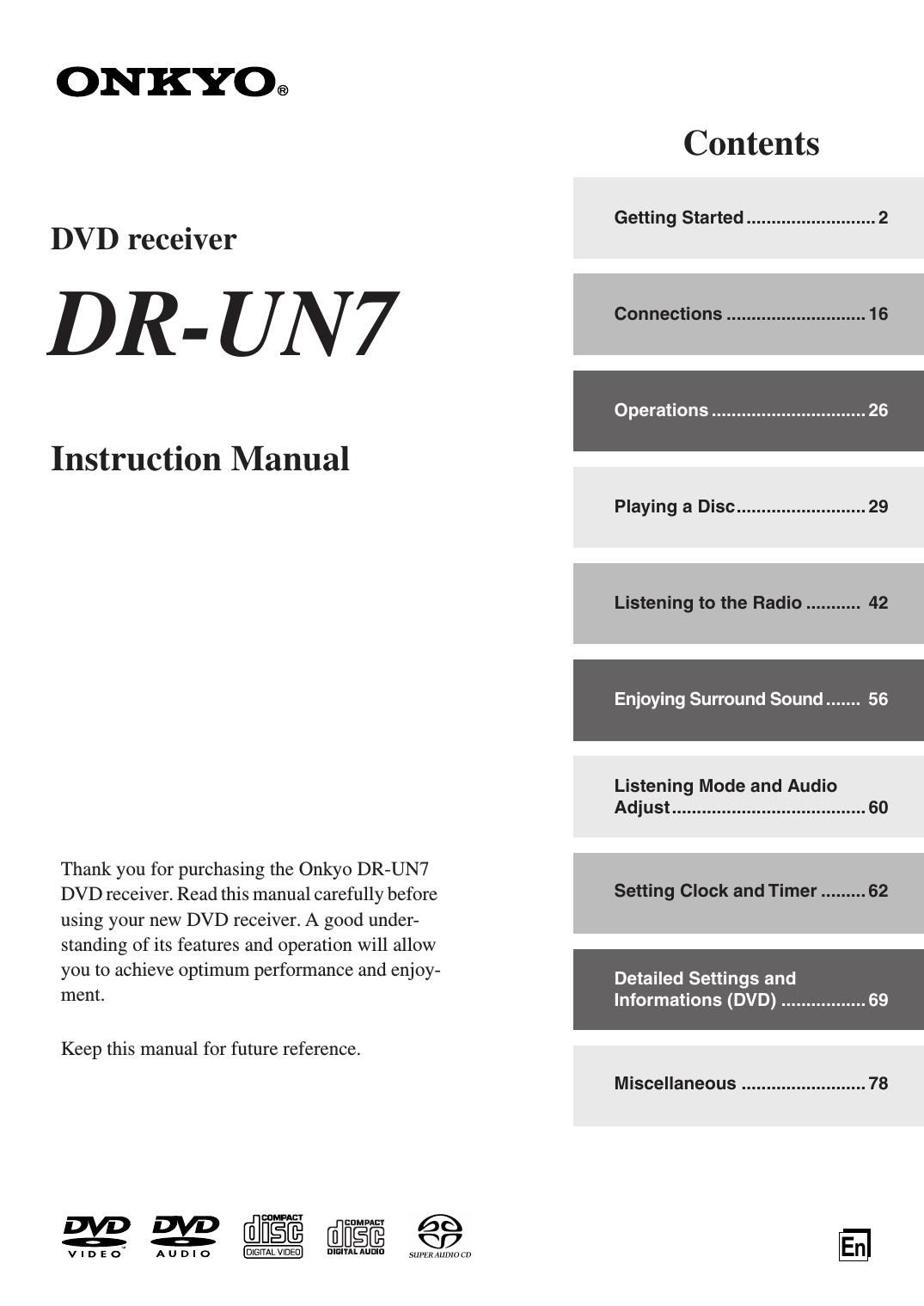

Onkyo DRUN 7 Owners Manual
This is the 84 pages manual for Onkyo DRUN 7 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo DRUN 7 Owners Manual (Ocr-read)
Page 1
2 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8. Do not install near any heat sources such as radia- tors, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are pro- vided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience recepta- cles, and the point where they exit from the appara- tus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table spec- ified by the manufacturer, or sold with the apparatus. When a cart is used, use cau- tion when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is dam- aged, B. If liquid has been spilled, or objects have fallen into the apparatus, C. If the apparatus has been exposed to rain or water, D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation, E. If the apparatus has been dropped or damaged in any way, and F. When the apparatus exhibits a distinct change in performance this indicates a need for service. 16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous volt- age points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Dont put candles or other burning objects on top of this unit. 17. Batteries Always consider the environmental issues and fol- low local regulations when disposing of batteries. 18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is ade- quate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNINGRISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS PORTABLE CART WARNING S3125A
Page 2
3 Precautions 1. Recording Copyright -Unless its for personal use only, recording copyrighted material is illegal with- out the permission of the copyright holder. 2. AC Fuse -The AC fuse inside the unit is not user- serviceable. If you cannot turn on the unit, contact your Onkyo dealer. 3. Care -Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild deter- gent and water. Dry the unit immediately afterwards with a clean cloth. Dont use abrasive cloths, thin- ners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel let- tering. 4. Power WARNING BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SEC- TION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the units rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz). Some models have a voltage selector switch for compatibility with power systems around the world. Before you plug in such a model, make sure that the voltage selector is set to the correct voltage for your area. For American model Setting the [STANDBY/ON] switch to STANDBY does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet. 5. Never Touch this Unit with Wet Hands- Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer. 6. Handling Notes -If you need to transport this unit, use the original packaging to pack it how it was when you origi- nally bought it. -Do not leave rubber or plastic items on this unit for a long time, because they may leave marks on the case. -This units top and rear panels may get warm after prolonged use. This is normal. -If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally. -When youve finished using this unit, remove all discs and turn off the power. 7. Installing this Unit -Install this unit in a well-ventilated location. -Ensure that theres adequate ventilation all around this unit, especially if its installed in an audio rack. If the ventilation is inadequate, the unit may overheat, leading to malfunction. -Do not expose this unit to direct sunlight or heat sources, because its internal temperature may rise, shortening the life of the optical pickup. -Avoid damp and dusty places, and places subject to vibrations from loudspeakers. Never put the unit on top of, or directly above a loudspeaker. -Install this unit horizontally. Never use it on its side or on a sloping surface, because it may cause a malfunction. -If you install this unit near a TV, radio, or VCR, the picture and sound quality may be affected. If this occurs, move this unit away from the TV, radio, or VCR. 8. To Obtain a Clear Picture -This unit is a high- tech, precision device. If the lens on the optical pickup, or the disc drive mechanism becomes dirty or worn, the picture quality may be affected. To maintain the best picture quality, we recommend regular inspection and maintenance (cleaning or worn part replacement) every 1,000 hours of use depending on the operating environment. Contact your Onkyo dealer for details. 9. Moisture Condensation Moisture condensation may damage this unit. Read the following carefully: Moisture may condense on the lens of the optical pickup, one of the most important parts inside this unit. -Moisture condensation can occur in the following situations: –The unit is moved from a cold place to a warm place. –A heater is turned on, or cold air from an air conditioner is hitting the unit. –In the summer, when this unit is moved from an air conditioned room to a hot and humid place. –The unit is used in a humid place. -Do not use this unit when theres the possibility of moisture condensation occurring. Doing so may damage your discs and certain parts inside this unit. If condensation does occur, remove all discs and leave this unit turned on for two to three hours. By this time, the unit will have warmed up and any con- densation will have evaporated. 10. Region Numbers -The DVD standard uses region numbers to control how discs can be played around the world, the world being divided into six regions. This unit will only play DVD discs that match its region number, which can be found on its rear panel (e.g., ). 1
Page 29
30 Before Starting DVD Playback-Continued This sets the language of this systems on-screen dis- plays. Setting the Language of This Players On-screen Displays 1 Press DVD SETUP and select Ini- tial Settings. 2 Select OSD Language from the Display settings. The available languages vary between models. -North American model: English, French, Spanish, German, Italian. -Australian, Asian and South American models: English, French, Spanish, Chinese. -Note that the language you choose here may not be available on all discs. 3 Select a language. The on-screen language will change according to your selection. 4 Press DVD SETUP to exit the menu screen. DVD SETUP
Page 48
49 Listening to the Radio-Continued You can store the frequencies of stations one by one manually into the preset memory channels. This is useful when you want to program the stations in your favorite order. Turn on the power to the unit before you start the procedure. Programming FM/AM Stations & XM Channels One by One – Preset Write 2 52-5 -You can preset up to 30 channels including both FM and AM stations. For a set in which XM stations are involved, you can preset up to 40 channels. For example, if you have already stored FM stations to eight channels, you can use 32 channels to store preset AM or XM sta- tions. -Programmed FM, AM and XM stations are indicated separately. Therefore, one of the pre- set FM stations and one of the preset AM sta- tions could use the same channel number. -The Preset Write function enables you to store radio station frequencies to any channel num- ber. For example, you could program three AM stations to channels 2, 5, and 9. Before auto presetting Display 1 Tune into the FM/AM station or XM channel that you want to store a preset. 2 Press EDIT/NO/CLEAR and turn MULTI JOG until Preset Write? appears in the display. 3 Press MULTI JOG. The channel number to be preset flashes. To cancel presetting, press EDIT/NO/ CLEAR instead. 4 If you wish to change the channel number, turn MULTI JOG. SOURCE SOURCE 5 Press MUTLI JOG to confirm. If Complete appears The radio station is registered to the pre- set channel. If Overwrite? appears The channel youve selected is registered already. -To register the new radio station by deleting the existing radio station Press YES/MODE. -To cancel presetting Press EDIT/NO/CLEAR. If Memory Full appears The FM/AM stations have already been programmed into all 30 channels. Delete unnecessary stations (page 53) and try again. 6 Repeat steps 2 to 5 to preset the next channel.
Page 65
66 Using the Timer Functions-Continued 4 Press MULTI JOG. (Only for Timer Rec) Check connections and settings to the recording component. 5 Turn MULTI JOG to select Once or Every. The Once timer operates only one time. The Every timer operates every week. After selecting one, press MULTI JOG. If you selected Once, the timer operates only one time on the specified day. Turn MULTI JOG to select the day(s) of the week. When the desired day of the week is displayed, press MULTI JOG. If you selected Every, the timer operates on the specified day(s) of every week. Turn MULTI JOG to select the day(s) of the week. When the desired day of the week is displayed, press MULTI JOG. Days Set (You can specify the range of days.) If you selected Days Set, you can select any consecutive days of the week. 1. Turn MULTI JOG to select the first day. When the desired day of the week is displayed, press MULTI JOG. 2. Turn MULTI JOG to select the last day. When the desired day of the week is displayed, press MULTI JOG. In this example, the timer operation is activated at the specified time, every Tuesday through Sunday. DVD receiverRemote controller DVD receiverRemote controller SUNTUE MON Days Set EverydayWED THU SAT FRI
