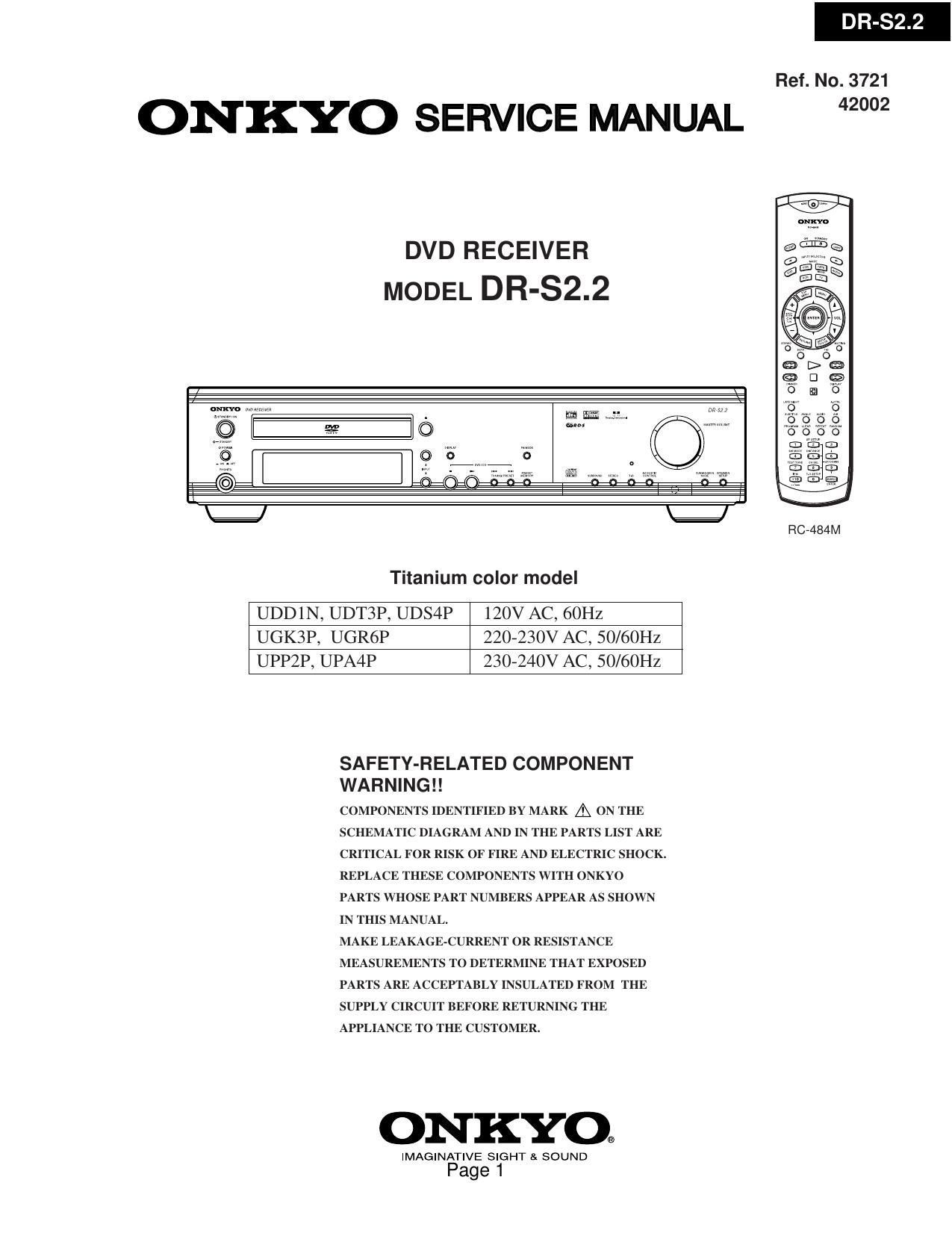

ONKYO SERVICE MANUAL

DVD RECEIVER
MODEL DR-82.2

Titanium color model

UDD 1N, UDT3P, UDS4P

120V AC, ()OHZ

UGK3P, UGR6P

220-230V AC, 50/60Hz

UPPZP, UPA4P

230-240V AC, 50/60Hz

SAFETY-RELATED COMPONENT

WARNING

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE

CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.

REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN

IN THIS MANUAL.

MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO.

IMAGINATIVE SIGHT & SOUND

Page 1

Ref. No. 3721
42002

RC-484M

Page 12

ADJUSTMENT PROCEDURES-1
TEST MODE FOR OPERATION
1. How to go in TEST MODE?
[NOTE] All memories are cleared when you go in this mode.

1. Connect the power supply cord to a wall outlet.

2. Press POWER to switch on the main power to put the unit in the standby mode.

(European and some Asian models only)
3. Press STANDBY/ON toturn on the unit.

4. Press SUBWOOFER MODE as pressing down SPEAKER SETUP and STANDBY/ON together.

FL display

%

-" Test-4-00

Press
SUBWOOFER SETUP

Test-4-27

2. How to cancel TEST MODE?
1. Press STANDBY/ON

If do not do operation for 5 seconds, the unit returns to
T e S t'_ the "NO DISC" state.

If so, stan again from 1.4.

Press Press Press Press SURROUND MODE Press SPEAKER SETUP
ACOUSTIC T'D STEREO the unit goes in test modes the unit goes in test modes
PRESENCE of functional check as follows. of functional check as follows.
gm-
Te 5 t _ 1 _ 0 0 Litall segment
Press Press Pre
SPEAKER SETUP suEwoorER MODE SPEAKER SETUP
Test-1-01 BA987654321
Press rams Press
SPEAKER SETUP SUBWOOFER MODE SPEAKER SETUP
m.-
I " Lit an odd number
Test-2'00 egment
Press Press 5
SPEAKER SETUP SUBWOOFER MODE SPEAKER SETUP
m Lit at even number
Test-2'14 segment
Press p.353 Press
SPEAKER SETUP SUBWOOFER SMODE SPEAKER SETUP
Key test mode
- - E5 (HHS 0 l e IESSE
-> Test 3 00 NO ke Th fhp d
key is displayed on FL tube.
Press Press press
SPEAKER SETUP SUBWOOFER MODE SPEAKER SETUP
DVD destination.
"S" Japanese model
Te 8 t- 3 - 0 7 v "V" : USA model
Press P' _. G 0 0 d _ by e U s "C" : South America model
SPEAKER SETUP SEEWOOFER MODE "D" : European model

Test mode finished.

Clear

Page 12

"VD" Asian model

Tuner band
"EU" : European model
"A S": sian model

US" : USA model
"J P " : Japanese model
