Page 1

@EW

I 1 " *ReiuNo;3744

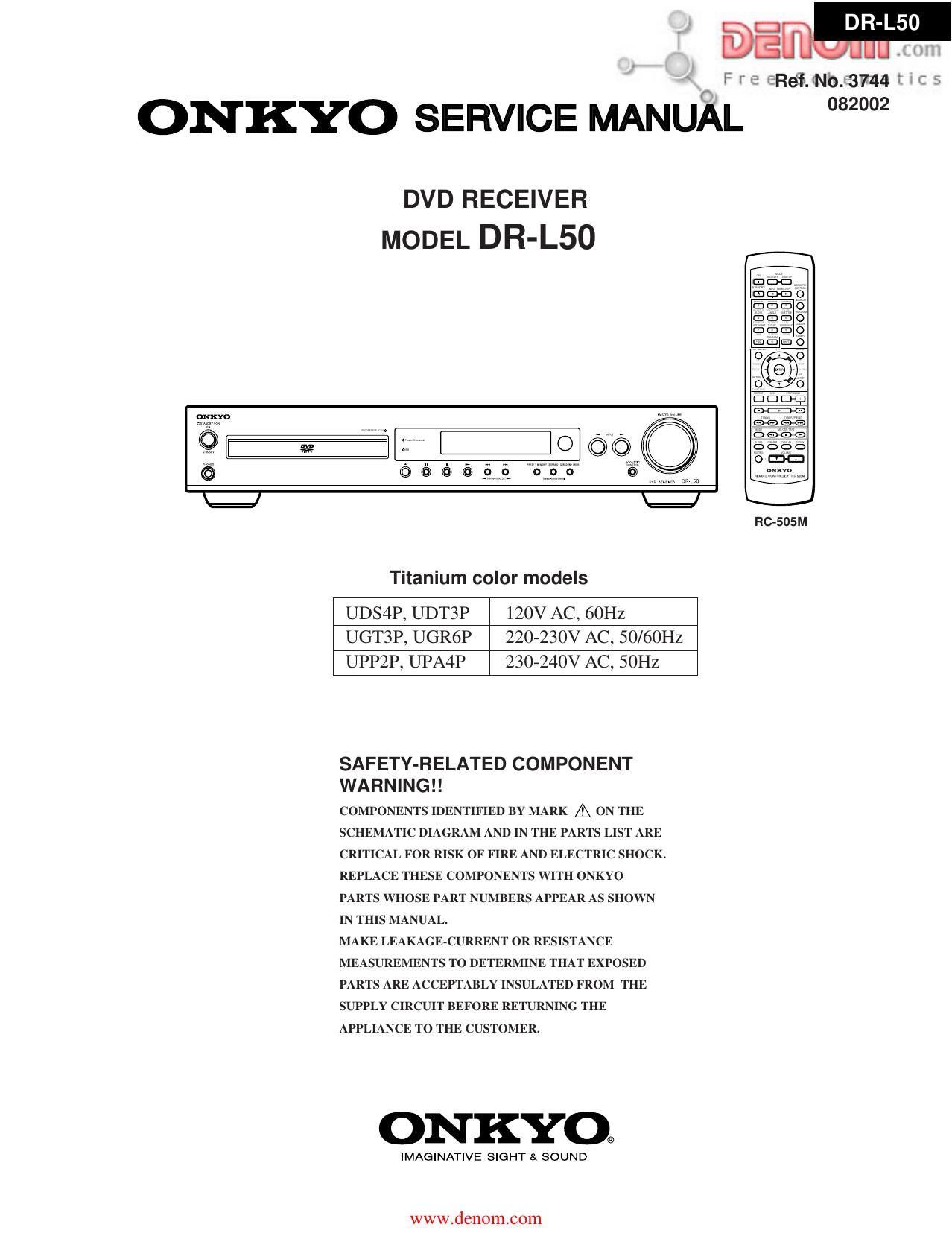

ONKYO SERVICE MANUAL 2"

DVD RECEIVER
MODEL DR-L50

RC-505M

Titanium color models

UDS4P, UDT3P 120V AC, 60Hz
UGT3P, UGR6P 220-230V AC, 50/60Hz
UPP2P, UPA4P 230-240V AC, SOHZ

SAFETY-RELATED COMPONENT
WARNING !!

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO.

IMAGINATIVE SIGHT & SOUND

www.den0m.com

Page 2

SPECIFICATIONS

AMPLIFIER SECTION
Power Output (FTC)

Continuous power output (DIN)

All channels 25 watts per channel min.

RMS. into 6 ohms two channel driven,
1,000 Hz with no more than 10% total
harmonic distortion.

All channels 21 watts per channel min.
RMS. into 6 ohms two channel driven,
1,000 HZ

Continuous Power output (ElAJ)

Total Harmonic DISIOHIOI!

AII channel 26 watts per channel min.
RMS. into 6 ohms two channel driven,
1000 Hz

10 % at rated power

Damping Factor
lnput Sensiti ty and impedance
DIGITAL OPTICAL IN
LINE (TV/LINE, MD/CDR/TAPE)

Output Level and impedance
DIGITAL OPTICAL OUT
REC OUT (MD/CDR/TAPE)
PRE OUT(SUBWOOFER)

Frequency Response

Acoustic Control

40 at 8 ohms

-21 to -1 5 dBm
200 mV/50 kohms

-21 to - 15 dBm
200 mV, 2.2 kohms
1 V, 470 ohms

20 to 30,000 HZ : +/- 0.8 dB
1: +9dB at82 Hz
2: +9 dB at 82 HZ

+6 dB at 10,000 HZ

0.2 "/0 at 1 watt output Signal-to-noise Ratio 100 dB (0.5 V INPUT LINE)
IM Distortion 10 % at rated power Muting -50 dB
0.2 % at 1 watt output
DVD SECTION
Signal readout system Optical non-contact Laser Semiconductor laser, wavelength 650 nm

Linear velocity

Error correction system
Signal system
Regional restriction code

Output Level and Impedance
Composite
S-Video

Component
(Except European models)
RGB(European models)

3.49 m/s (Single Layer)

3.84 m/s (Dual Layer)

Reed Solomon Product Code
PAL/Auto Mode

Frequency response
Signal-to-noise ratio (digital audio)
Audio dynamic range (digital audio)
Harmonic distortion (digital audio)

10 Hz to 44 kHz (96 kHZ)

More than 100 dB
More than 93 dB
Less than 0.025%

European area: 2 Wow and flutter
Southeast Asian area: 3
Australian and South American area: 4

PRC:6

1.0Vp-p, 75 ohms

Y:1.0 Vp-p, 75 ohms

C: 0.286 Vp-p, 75 ohms
Y:1.0 Vp-p, 75 ohms

Pb, Pr: 0.7 Vp-p, 75 ohms
0.7 Vp-p, 75 ohms

Operating conditions

Below threshold of measurability
Temperature: SC to 35°C (41 °F to 95°F),
Operation status: Horizontal

TUNER SECTION
Tuning Range

FM: 87.50 to 108.00 MHZ (50 kHz steps)
: (South American models)
530 to 1710 kHz (10 kHz steps)

(Other models)
522 to 1611 kHz (9 kHz steps)

Usable Sensitivity FM: Mono 11.2 dBf, 1.0 (N (75 ohms IHF)
0.9 uV (75 ohms DIN)
Stereo 17.2 dBt, 2.0 uV (75 ohms IHF)
23 (N (75 ohms DIN)
AM: 30 (iv
50 dB Quieting Sensitivity FM: Mono 17.2 dBi, 2.0 (N (75 ohms)
Stereo 37.2 dBl, 20.0 (N (75 ohms)
Capture Ratio FM: 2.0 dB
Image Rejection Ratio FM: 40 dB (South American models) 85 dB (Other models)
AM: 40 dB
IF Reiection Ratio FM: 90 dB Harmonic Distortion FM: Mono 0.2 %
AM: 40 dB Stereo 0.3 %
Signal-to-noise Ratio FM: Mono 73 dB, lHF AM: 0'7 %
Stereo 67 dB, lHF Frequency response FM: 30 to 15,000 Hz (+/- 1.0 dB)
AM: 40 dB Stereo Separation FM: 45 dB at 1,000 Hz
Alternate Channel Alt. (+/- 400 kHz) FM: Mono 55 dB, IHF 30 dB 3 1° 1° 10,000 2
Selectivity FM: 50 dB, DIN 55,15, lHF Stereo Threshold FM: 17.2 dBt, 20 (N (75 ohms)
AM Suppression Ratio FM: 50 dB ouP FM: 750 mV
AM: 150 mV
GENERAL
Power Supply AC 120 volts, 60 Hz Power Supply AC 220-230 volts, 50/60 Hz
Power Consumption : 130 W Power Consumption : 120 W
Power Consumption (standby mode) : 2.0 W Power Consumption (standby mode) : 2.6 W
29 w ( * ) 29 w ( ' )
Power Supply AC 230-240 volts, 50 Hz Dimensions (W x H x D) 435 X81 X366 mm (1 7I/BX33/1SXI47/IS ins.)
Power Consumption : 120 W Weight 7.0 kg (15.4 lb.)
Power Consumption (standby mode) : 2.6 W
29 W ( *) ( ) When clock display is on.

Specifications and features are subject to change without notice.
