Onkyo DRC 500 Service Manual
This is the 56 pages manual for Onkyo DRC 500 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo DRC 500 Service Manual (Ocr-read)
Page 1

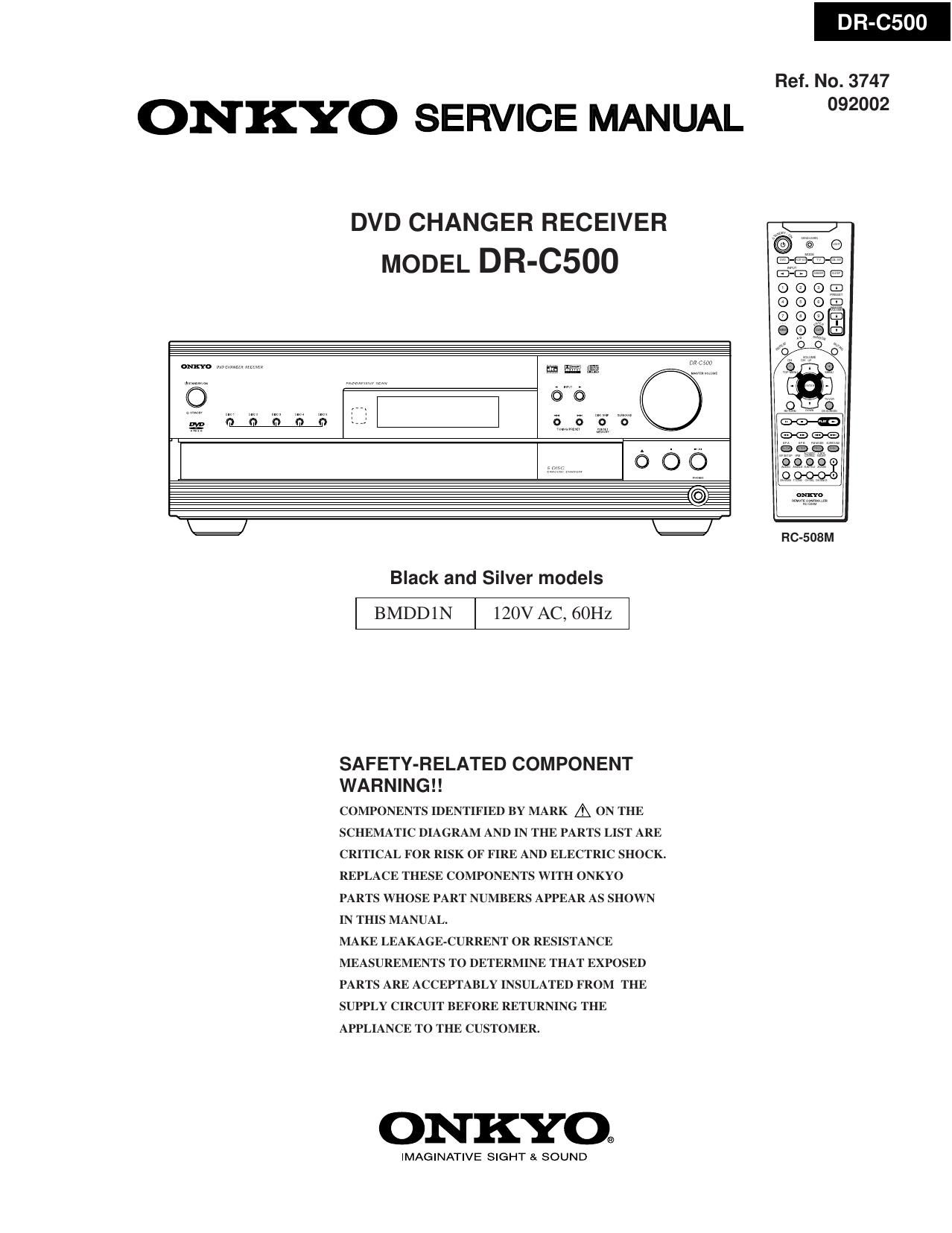

DR-C500
Ref. No. 3747
ONKYO SERVICE MANUAL 092002
DVD CHANGER RECEIVER
MODEL DR-C500
a@
I a
9509
Black and Silver models
BMDDlN 120V AC, 60Hz
SAFETY-RELATED COMPONENT
WARNING !!
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO.
IMAGINATIVE SIGHT & SOUND
