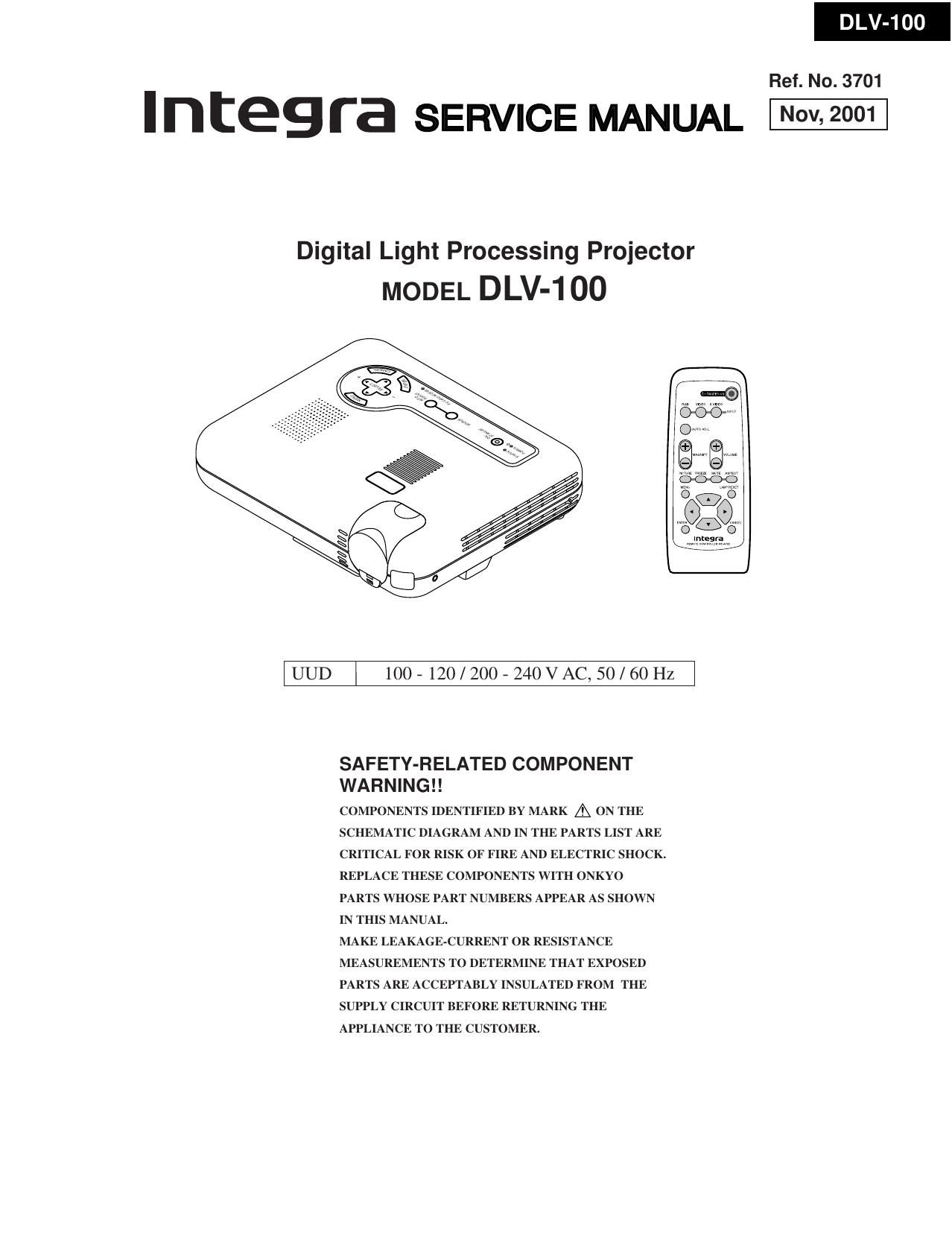

Onkyo DLV 100 Service Manual
This is the 48 pages manual for Onkyo DLV 100 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo DLV 100 Service Manual (Ocr-read)
Page 1
1. Application This specification sheet applies for DLV-100. yyyModelyyyyy DLV-100 yyyNEC Model code 01152009 2. General 2. General 2. General 2. General 2.1 Operation temperature range +5 ~ +35 degree C (Humidity 20-80%RH, not in the dewfall.) 2.2 Storage temperature range -10 ~ +50 degree C 2.3 Power source 100 ~ 120 VAC / 200 ~ 240 VAC +/-10%, 50 / 60 Hz 2.4 Input Current 2.2/1.1A (MAX.) 2.5 Inspection condition Inspection shall be done by AC120V / 60 Hz unless no rule is specified. As for the projection condition, the screen is perpendicularly installed to the set and the projection screen is in WIDE condition of 60 inches. When test, inspector shall be 2 +/- 0.3 m away from the screen. Fig. 1 Condition 3. Main parts specifications 3. Main parts specifications 3. Main parts specifications 3. Main parts specifications 3.1 DMD panel Single Chip Digital Micromirror Device(DMD) 1024 x 768 pixels 3.2 Lens Manual zoom and focus F-no.=2.61~2.84, f=28.35~34.02mm 3.3 Lamp yyy 135W DC Lamp Average lifetime 1,000H yyy The definition of average lifetime is the time that light becomes half with the continuous lighting-up. (Notes) The lamp bulb can be ruptured, while using a projector. When the lamp bulb is ruptured, there is a small crack and pieces of glass, which may be scattered in the lamp case. 2 ¶ 0.3 m Screen Ins pector DLV-100
Page 2
4. Electric specifications 4. Electric specifications 4. Electric specifications 4. Electric specifications 4.1 Input signal band width RGB 80MHz Video 6.5MHz 4.2 Graduation 256 grade full color (16,777,216 color) 4.3 Display resolution NTSC/PAL/YCbCr 550TV lines SECAM 300TV lines RGB 1024dots(H) ·768dots(V) 4.4 Input terminal RGB 1 input: Mini D-SUB 15pin YCbCr:shares with the RGB terminal VIDEO 1 input: RCA S-VIDEO 1 input: DIN 4pin Audio 1 input: Stereo mini jack PC Control 1 input: DIN 8pin USB 1 input: Type A PC Card 1 input: CompactFlash 4.5 PC Card Viewer This Viewer can display the JPEG/BMP image which is preserved in CompactFlash (CF). CF correspond to SanDisk CF 128Mbytes media. 4.6 Y/C Separation NTSC/PAL 4.7 Input signal (RGB) Horizontal Freq. 15 ~ 100KHz(RGB: 24KHz or over) Vertical freq. 50 ~ 120Hz Pixel clock freq. Less than 100MHz Capable resolution UXGA 1600dot(H) ·1200dot(V) Max. Sync system Separate Sync/Composite Sync/Sync on G 4.8 Input signal level RGBHV Input R,G,B y0.7Vp-p / 75ohm positive Y 1.0Vp-p / 75ohm positive Cb,Cr(Pb,Pr) 0.7Vp-p / 75ohm H/V Sync 4.0Vp-p / TTL posi./nega Composite Sync 4.0Vp-p / TTL posi./nega Sync on G 0.3Vp-p / 75 ohm negative VIDEO 1.0Vp-p / 75 ohm S-VIDEO Y: 1.0Vp-p / 75 ohm C: 0.283Vp-p / 75 ohm AUDIO 0.5Vrms / 22 K ohm 4.9 Audio output 1W monaural Speaker DLV-100
