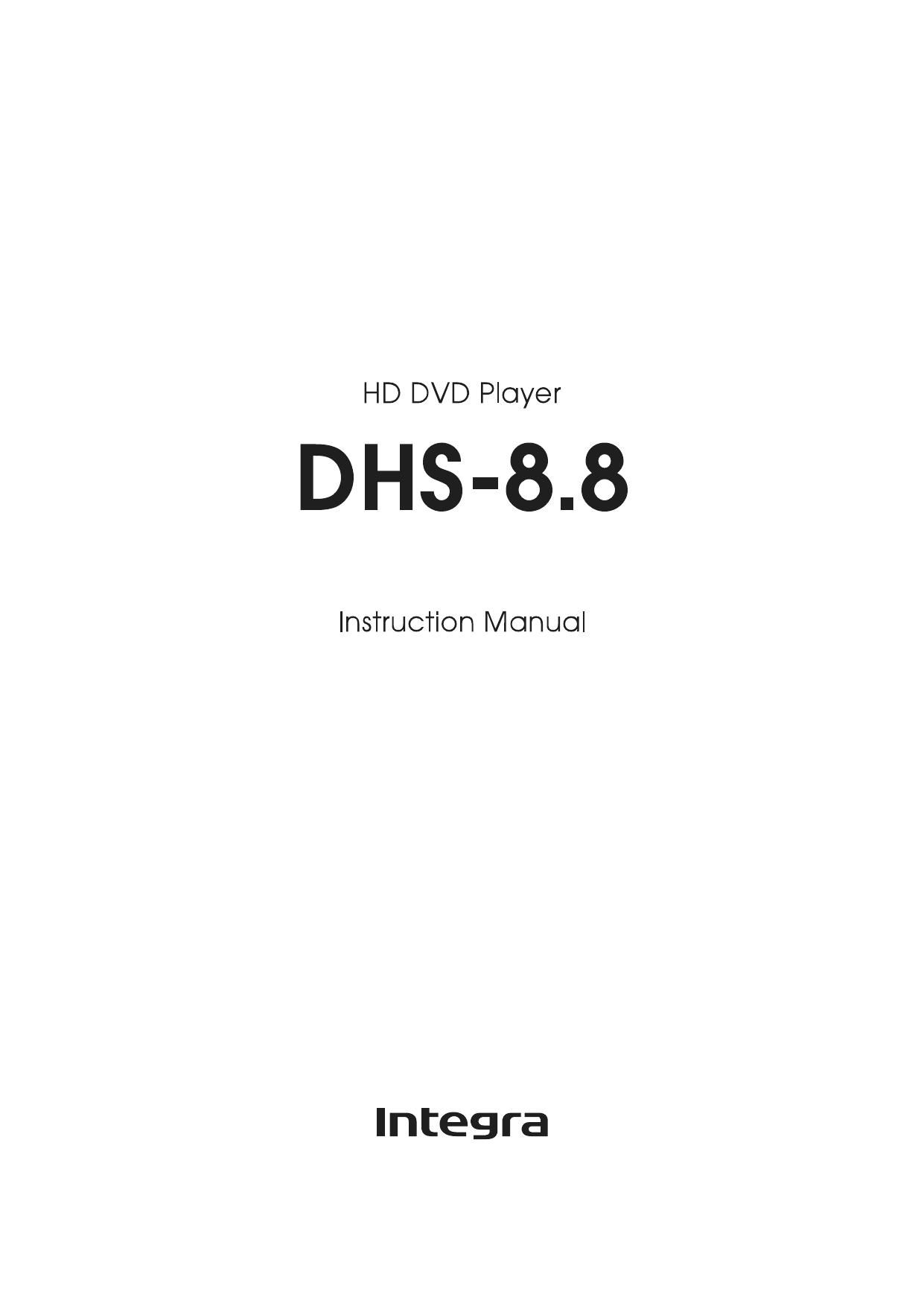

Onkyo DHS 8.8 Owners Manual

Page 2

WARNING:

TO REDUCE THE RISK OF FIRE 0R ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO
RAIN 0R MOISTURE.

CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL

A
A

mama AVIS
RISK OF ELECTRIC SHOCK RISOUE DE CHOC ELECTRIOUE
DO NOT OPEN NE PAS OUVRIR

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated dangerous voltage" within
the products enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

Important Safety Instructions

NFWPFANT

10.

11.

12.

13.

14.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dw cloth.

Do not block any ventilation openings. Install in
accordance with the manufacturers instructions.

Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
Only use attachments/accessories specified by the
manufacturer.

Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid
injury from tip-over. 5 '
Unplug this apparatus during lightning storms or when
unused for long periods of time.

Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.

PORTABLE CART WARNING

15

16.

17.

18.

. Damage Requiring Service
Unplug the apparatus from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
A. When the power-supply cord or plug is damaged,
B. If liquid has been spilled, or objects have fallen into
the apparatus,
If the apparatus has been exposed to rain or water,
If the apparatus does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often require
extensive work by a qualified technician to restore
the apparatus to its normal operation,
If the apparatus has been dropped or damaged in
any way, and
F. When the apparatus exhibits a distinct change in
performance this indicates a need for service.
Object and Liquid Entry
Never push objects of any kind into the apparatus
through openings as they may touch dangerous
voltage points or short-out parts that could result in a
fire or electric shock.
The apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases shall be placed on the apparatus.
Dont put candles or other burning objects on top of
this unit.
Batteries
Always consider the environmental issues and follow
local regulations when disposing of batteries.
If you install the apparatus in a built-in installation,
such as a bookcase or rack, ensure that there is
adequate ventilation.
Leave 20 cm (8') of free space at the top and sides
and 10 cm (4') at the rear. The rear edge of the shelf
or board above the apparatus shall be set 10 cm (4')
away from the rear panel or wall, creating a flue-like
gap for warm air to escape.

C.
D.

E.

Page 5

lTable of contents

Thank you for purchasing an lntegra HD DVD Player.

your new HD DVD Player.
Please retain this manual for future reference.

Please read this manual thoroughly before making connections and plugging in the unit.
Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from

Disc compatibility.
Customer support...
Index to parts and controls ................................ 9
Accessories .........
Remote control
Loading batteries...
TV control ............................................................... 12
Preparation
Preparation ............................
Resolution and connections
Step 1: Connecting to a TV
Step 2: Connecting to audio system ....................... 15
Step 3: LAN connection .......

Step 4: Power connection 18
Step 5: Powering on .................. 18
Step 6: Setting up the player .................................. 19
A: Language ............................................ 19
B: Time ................. 20
C: Resolution. ...... 21
D: Audio output ....................................... 23
E: Ethernet .............................................. 25

Basic Playback

Playing ...... .. 27

Playing a disc ......... 27
To pause playback .................................. 28
To stop playback .................................... 28
To resume playback from the location
last stopped ............................................. 28
Basic operations table ...... 28
To select the sound 29
To select subtitles ........... 29
To select the camera angle ..................... 29
To locate a position ................................ 30
To play repeatedly ...................... 30
To check the current status.. ...... 3O

Introduction HD DVD Playback

Important Safety Instructions ............................ 2 HD DVD playing options in the future ..................... 31
Precautions ......................................................... 3 A/B/C/D buttons ...................................... 31
Features ............... Cursor controls... 31

31

Controller port .....
Requirements for HD DVD discs/

Web-enabled network content ................ 31
Detailed Settings
Output sound conversion table .............. 32
Customizing the function settings .......... 33
Settings .................................................................. 34
Picture .................................................... 34
Audio ......... 35
Language.. .36
Ethernet 38
General .................................................. 38
Before calling service personnel .................... 40
License information on the software used
in the lntegra HD DVD player ...................... 41
Specification ..................................................... 48

Page 38

lCustomizing the function settings (Continued)

I Ethernet

See ¢ page 25.

I General

I Parental Lock

HD DVD and DVD video discs equipped with the Parental Lock function have a predetermined limitation level. The limitation
level or limitation method may differ depending on the disc. For example the whole contents of a disc may not be played back, or
an extreme violent scene may be cut or replaced automatically by another scene.

Important
- Depending on discs. it may not be evident whether the disc is compatible with Parental Lock function. Make sure that Parental Lock
function you set is activated correctly.

1 Enter a 4-digit password by using the number buttons, then press OK button.
When you use the player for the first time, set a new password of 4-digit. If you make a mistake entering your password. press
Clear button before pressing OK button, and re-enter the correct password.

2 Set the details.
a) Select On" or Off" by pressing AIV buttons.

Parental Lock On . .
Select this to activate Parental Lock
Lock Area Code Level function or to change the setting.
U S 8 OK Cancel off

| | | Deactivates the Parental Lock function.
a) V b)vc) Skip b) and c) to go to 3.

b) Enter the code of a country/area whose standards were used to rate a disc, referring to the list below.

Country/Area Code Country/Area Code Country/Area Code
AUSTRALIA AU INDONESIA ID SPAIN ES
BELGIUM BE ITALY IT SWEDEN BE
CANADA CA JAPAN JP SWITZERLAND CH
CHINA CN MALAYSIA MY TAIWAN TW
CHINA HONG KONG HK NETHERLANDS NL THAILAND TH
DENMARK DK NORWAY NO UNITED KINGDOM GB
FINLAND Fl PHILIPPINES PH UNITED STATES US
FRANCE FR RUSSIAN FEDERATION RU

GERMANY DE SINGAPORE SG

c) Select the desired limitation level.
Unless the Parental Lock function is set to Off. a disc that has a higher limitation level than your selected limitation level
cannot be played back. For example, if you select level 7, discs exceeding level 8 are locked and cannot be played back.

When US" is selected. its limitation level corresponds to the following settings.
Level 7: NC-17 Level 6: R Level 4: PG13 Level 3: PG Level 1: G

3 Select OK then press OK button.

I To change the limitation level of Parental Lock function
Follow steps 1 - 3 above.

I To change the password

1 At step 1, press I (Stop) button 4 times then press OK button.
The password is cleared.

2 Enter a new 4-digit password by using the number buttons.
3 Press OK button.

38

Page 48

I Specification

- Designs and specifications are subject to change without notice.

Power requirement
47.0W

Power supply
120V AC 60Hz

Mass
4.3kg

External dimension
Width 435 x Height 73 x Depth 346mm
(17-1/8 x 2-7/8 x 13-5/8)

Signal system
Standard NTSC Color TV system

Laser
Semiconductor laser
Wavelength: 405nm/650nm/780nm

VIDEO output
1.0Vp-p (759), Sync signal negative,
Pin jack x 1 system

5 VIDEO output

(Y) 1.0Vp-p (759), Sync signal negative,
(0) 0.286Vp-p (759), 1 at rear

Mini D|N4 Pin x1 system

Component output (Y, PE, PR)

Y output (green), 1.0Vp-p (759),
Pinjack x 1 system

PB, PR output (blue, red), 0.7Vp-p (759),
Pin jack x 1 system each

I Analog audio output

2.0V (rms), 2.2k9 or below, pin jack

(L, R) x1 system

2.0V (rms), 2.2k9 or below, pin jack x 6

Digital audio output (OPTICAL/COAXIAL iack)
Optical connector x 1 system

Coaxial pin jack x 1 system, 0.5Vp-p (759)

ETHERNET port
100BASE-TX/1OBASE-T x 1

EXTENSION port

2 systems

IRS-2326 connector
DSUB 9 pin

HDMI output
19 pin, Type A connector

Remote control
Wireless remote control (RC-716DV)

Operating conditions
Temperature: 41°F ~ 95°F (5°C ~ 35°C)
Position: Horizontal

Clock accuracy
Quartz (monthly deviation: approximately :30 seconds)

0 This model may not be compatible with leatures and/or specifications that may be added in the luture.
- The illustrations and screens described in this manual may be exaggerated or simplified for easy recognition and may be slightly

different from the actual unit.

48
