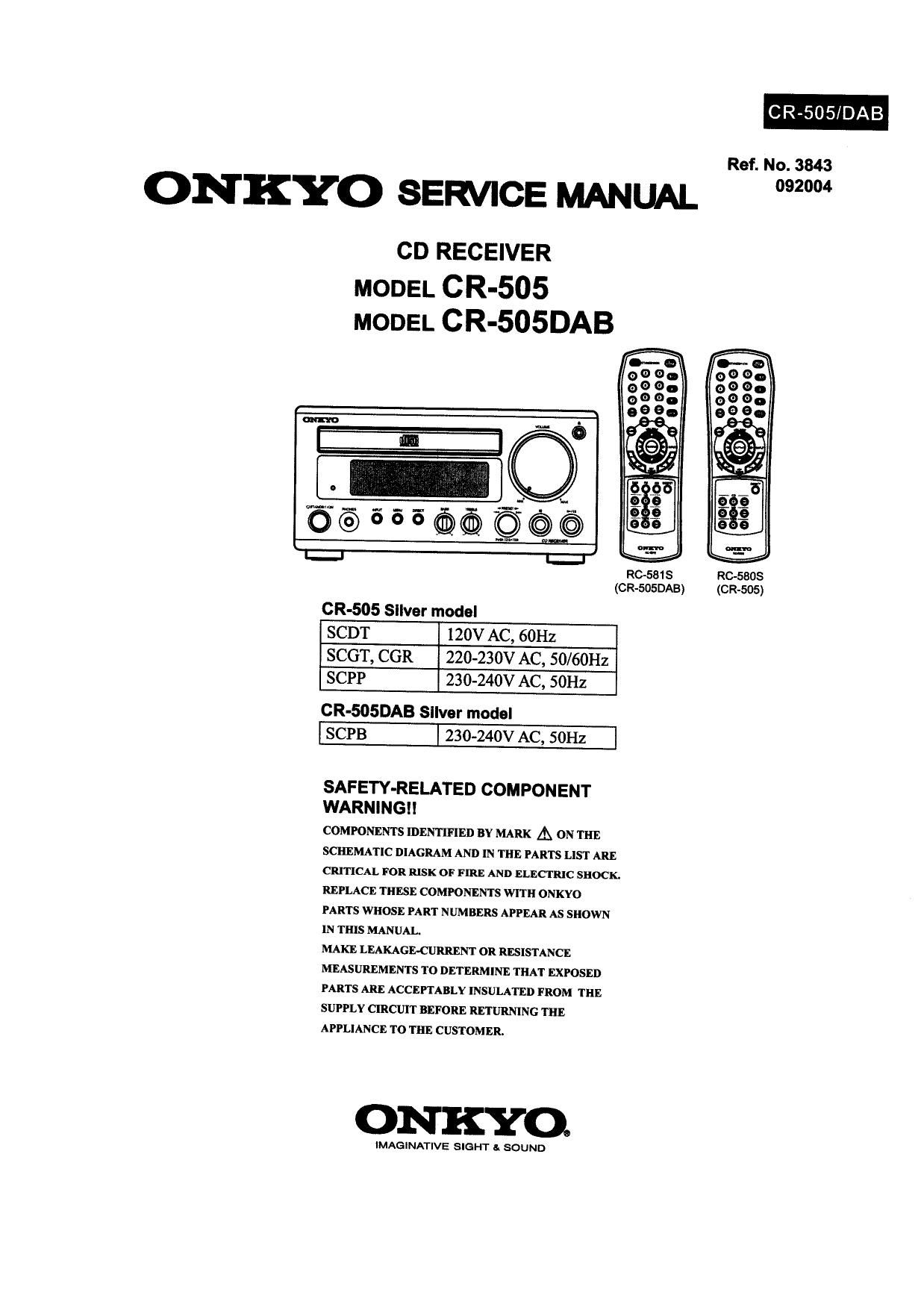

Page 1
CR-SOS/DAB
Ref. No. 3843
ONKYO SERVICE MANUAL 2°
CD RECEIVER
MODEL CR-505
MODEL CR-505DAB
RO581$ RC-SBOS
(CR<505DAB) (CR-505)
CR-505 Sllver model
SCDT 120v AC, 601-12
SCGT, CGR 220-230V AC, 50/60Hz
SCPP 230-240v AC, 50Hz
CR-505DAB Silver model
@113 I 230-240v AC, SOHZ j
SAFETY-RELATED COMPONENT
WARNING"
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL
MAKE LEAKAGEoCURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ON KYO.
IMAGINATIVE SIGHT a. SOUND
