Onkyo CR 315 Service Manual
This is the 37 pages manual for Onkyo CR 315 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo CR 315 Service Manual (Ocr-read)
Page 1

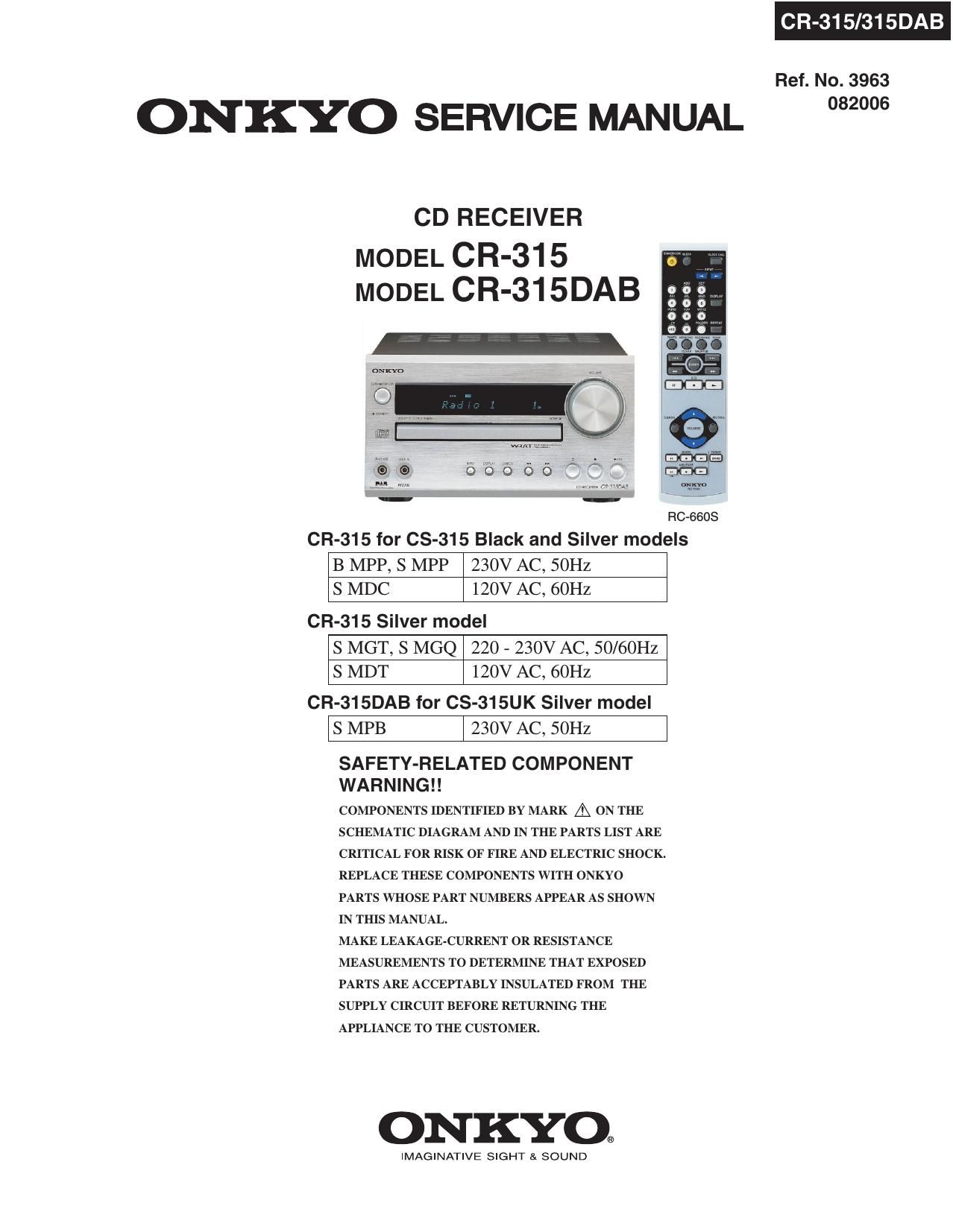

CR-315/315DAB
Ref. No. 3963
ONKYO SERVICE MANUAL 2"
CD RECEIVER
MODEL CR-315
MODEL CR-315DAB
RC-BGOS
CR-315 for CS-315 Black and Silver models
B MPP, S MPP 230V AC, SOHZ
S MDC 120V AC, 60HZ
CR-315 Silver model
S MGT, S MGQ 220 - 230V AC, 50/60Hz
S MDT 120V AC, 60HZ
CR-315DAB for CS-315UK Silver model
|s MPB | 230V AC, 5on
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT & SOUND
Page 4
EXPLODED VIEWS OF MECHANISM-2
CD TRAY LOADING UNIT : DLM1A01-14CA
CR-315/315DAB
PARTS LIST
REF. NO. PART NO. (SN) DESCRIPTION Q'TY
1 6572104054 CHASSIS l
2 657218-1055 TRAY l
3 652112040 SUB CHASSIS l
4 657239-2004 CAM SLIDER l
5 652228005 GEAR TRAY l
6 650934057H CLAMPER ASSY l
7 657093-4058H PWB ASS'Y l
8 6572224037 GEAR A l
9 652224004 PULLEY GEAR l
10 657093-4068H MOTOR ASSY I
11 020834274 LOADING BELT l
12 GSP14A25027 SCREW 2
