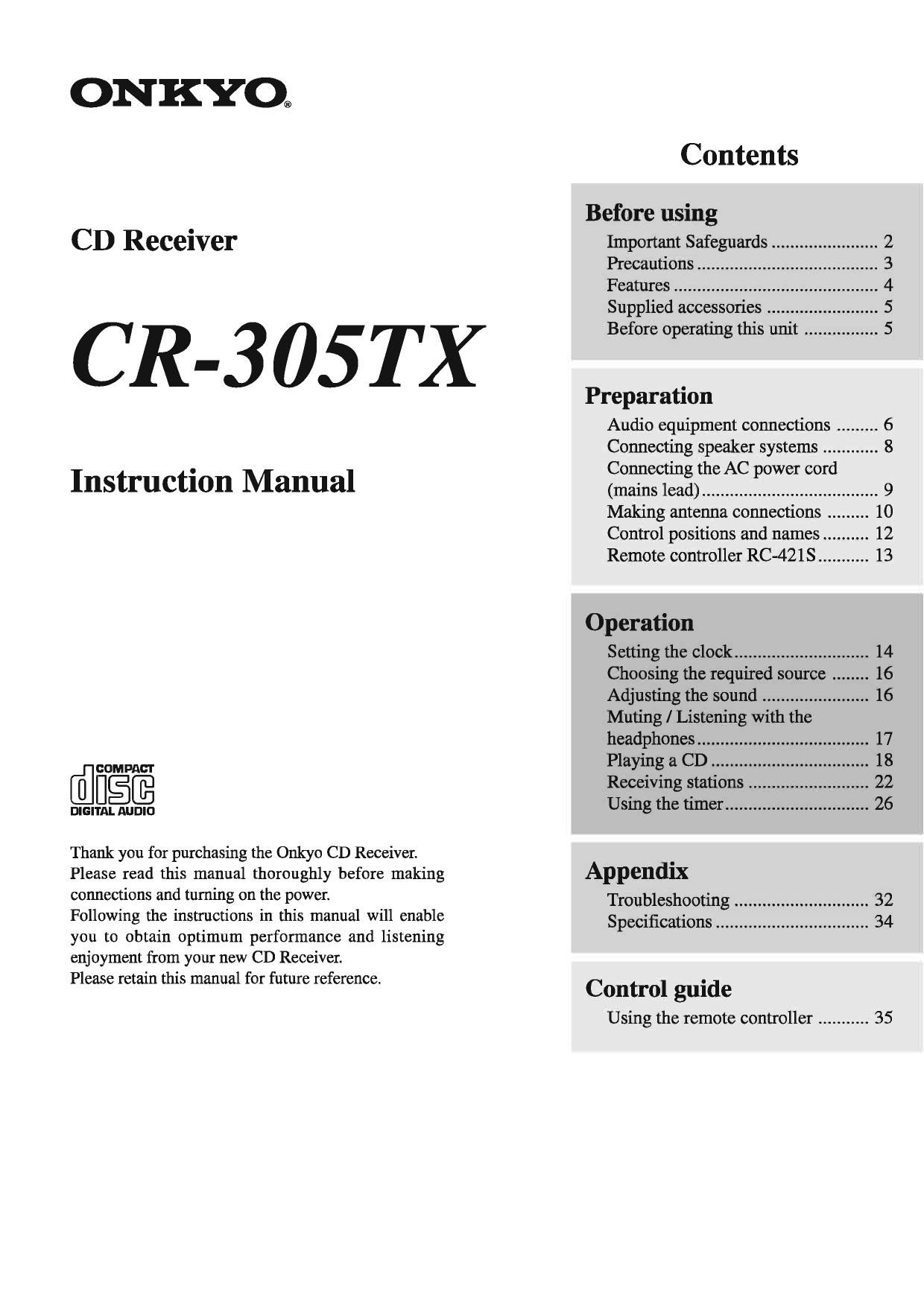

ONKYO®

CD Receiver

CR-3 05 T X

Instruction Manual

COM PAH
DIGITAL AUDIO

Thank you for purchasing the Onkyo CD Receiver.
Please read this manual thoroughly before making
connections and turning on the powerr

Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new CD Receiver.

Please retain this manual for future reference

Contents
Before using
Important Safeguards ....................... 2
Precautions .............. 3
Features ............... . 4
Supplied accessories ...... . 5
Before operating this unit ................ 5
Preparation
Audio equipment connections ......... 6
Connecting speaker systems ............ 8
Connecting the AC power cord
(mains lead) ...................................... 9

Making antenna connections
Control positions and names. ..
Remote controller RC-4ZIS ...........

Operation
Setting the clock ............................. 14
Choosing the required source ........ 16
Adjusting the sound ....................... 16
Muting / Listening with the
headphones ..................................... 17
Playing a CD .. 18
Receiving stations .. 22
Using the timer ............................... 26
Appendix
Troubleshooting ............................. 32
Specifications ................................. 34

Control guide

Using the remote controller ........... 35

Page 2

WARNING:

TO REDUCE THE RISK OF FIRE 0R ELECTRIC SHOCK,
DO NOT expose THIS APPLIANCE T0 RAIN 0R
MOISTURE.

CAUTION:

TO REDUCE THE RISK OF BlECIRIC SHOCK, DO NOT
REMOVE COVER (0R BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFED
SERVICE PERSONNEL.

A

5E triangle, is intended to alert the user to the presence of uninsulated

WARNING AVIS
not or ELECTRIC SHOCK alsaur DE cuoc ELECTRIQUE
DONOT OPEN NE PAS OUVHIE

The lightning flash with arrowhead symbol, within an equilateral

dangerous voltage" within the products enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to
alert the user to tire presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.

Important Safeguards

l.

2.

10.

11.

12.

Read Instructions - All the safety and operating instructions
should be read before the appliance is operated.

Retain Instructions - The safety and operating instructions
should be retained for future reference.

Heed Warnings -All warnings on the appliance and in the op-
erating instructions should be adhered to.

Follow Instructions -A11 operating and use instructions should
be followed.

Cleaning - Unplug the appliance from the wall outlet before
cleaning. The appliance should be cleaned only as recommended
by the manufacturer.

Attachments - Do not use attachments not recommended by
the appliance manufacturer as they may cause hazards.

Water and Moisture- Do not use the appliance near water -for
example, near a bath tub. wash bowl, lcitchen sink, or laundry
tub; in a wet basement; or near a swirruning pool; and the like.

Accessories - Do not place the appliance on an unstable cart,
stand, tripod, bracket, or table. The appliance may fall, causing
serious injury to a child or adult, and serious damage to the ap-
pliance. Use only with a cart, stand, tripod, bracket, or table rec-
ommended by the manufacturer, or sold with the appliance. Any
mounting of the appliance
should follow the
manufacturers instructions, and
should use a mounting acces-
sory recommended by the
manufacturer.

An appliance and cart combina-
tion should be moved with care.
Quick stops, excessive force,
and uneven surfaces may cause
the appliance and cart combina-
tion to overturn.

Ventilation - Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the appliance and
to protect it from overheating, and these openings must not be
blocked or covered. The openings should never be blocked by
placing the appliance on a bed. sofa, rug, or other similar sur-
face. The appliance should not be placed in a built-in installa-
tion such as a bookcase or rack unless proper ventilation is pro-
vided. There should be free space of at least 20 cm (8 in.) and an
opening behind the appliance.

Power Sources - The appliance should be operated only from
the type of power source indicated on the marldng label. If you
are not sure of the type of power supply to your home, consult
your appliance dealer or local power company.

Grounding or Polarization - The appliance may be equipped
with a polarized alternating current line plug (a plug having one
blade wider than the other). This plug will fit into the power
outlet only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If the
plug should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the
polarized plug.

PORTABLE CART WARNING

53125A

13.

14.

15.

16.

17.

18.

19.

20.

Power-Cord Protection - Power-supply cords should be routed
so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords
at plugs, convenience receptacles, and the point Where they exit
from the appliance.
Outdoor Antenna Grounding - If an outside antenna or cable
system is connected to the appliance, be sure the antenna or cable
system is grounded so as to provide some protection against volt-
age surges and built-up static charges. Article 810 of the Na-
tional Electrical Code, ANSI/NFPA 70, provides information with
regard to preper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna-discharge unit, size
of grounding conductors, location of antenna-discharge unit, con-
nection to grounding electrodes, and requirements for the ground-
ing electrode. See Figure 1.
Lightning -For added protection for the appliance during a light-
ning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect
the antenna or cable system. This will prevent damage to the
appliance due to lightning and power-line surges.
Power Lines -An outside antenna system should not be located
in the vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power litres or cir-
cuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or cir-
cuits as contact with them might be fatal.

Overloading - Do not overload wall outlets, extension cords, or

integral convenience receptacles as this can result in a risk of

fire or electric shock.

Object and Liquid Entry - Never push objects of any kind into

the appliance through openings as they may touch dangerous

voltage points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the appliance.

Servicing - Do not attempt to service the appliance yourself as

opening or removing covers may expose you to dangerous volt-

age or other hazards. Refer all servicing to qualified service per-
sonnel.

Damage Requiring Service - Unplug the appliance form the

wall outlet and refer servicing to qualified service personnel un-

der the following conditions:

A. When the power-supply cord or plug is damaged,

B. If liquid has been spilled, or objects have fallen into the ap-
pliance,

C. If the appliance has been exposed to rain or water,

D. If the appliance does not operate normally by following the
operating instructions. Adjust only these controls that are
covered by the operating instructions as an improper adjust-
ment of other controls may result in damage and will often
require extensive work by a qualified technician to restore
the appliance to its normal operation,

E. If the appliance has been dropped or damaged in any way,
and

F. When the appliance exhibits a distinct change in performance
- this indicates a need for service.
