Onkyo CP 1116 A Service Manual

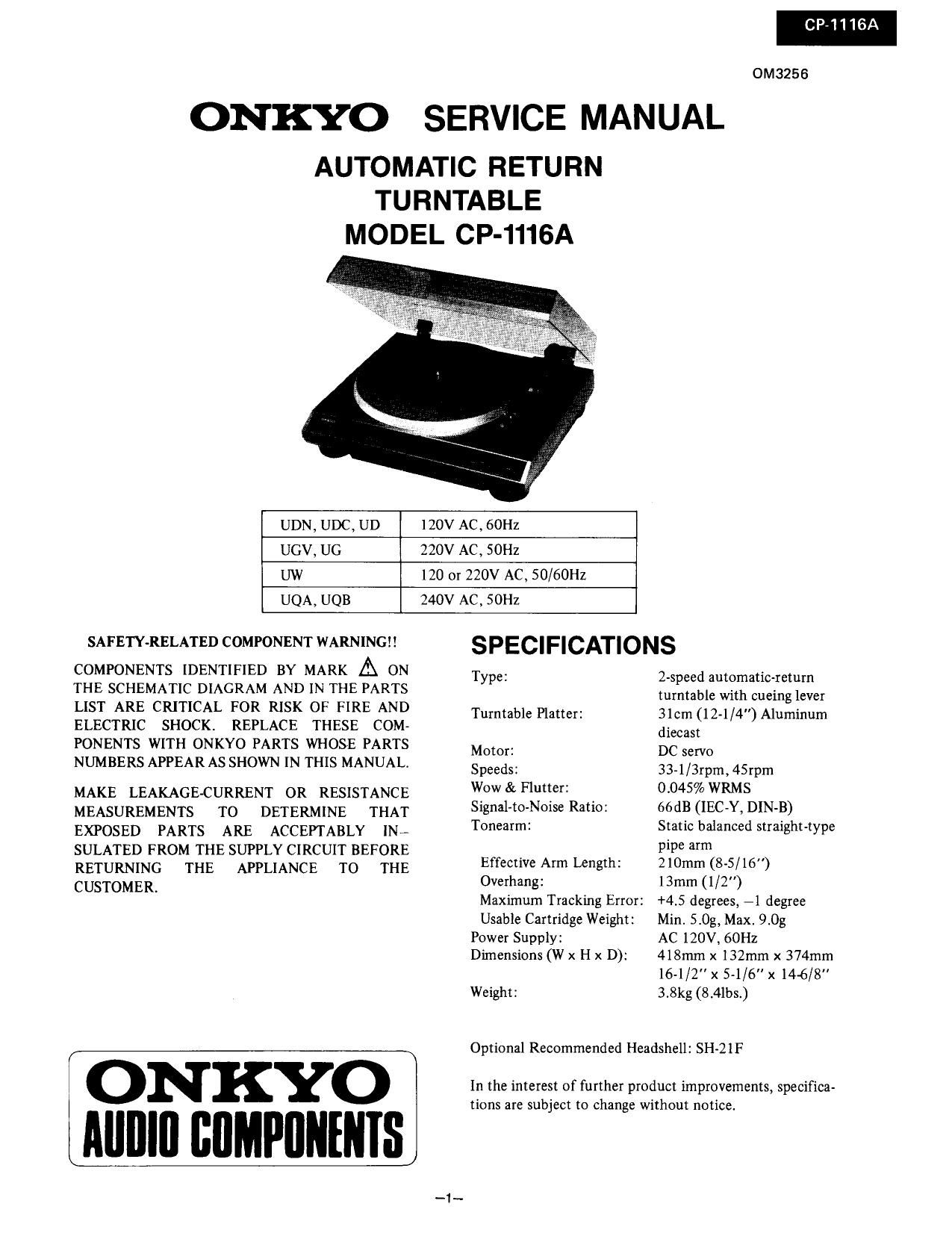

Page 1

CP~1116A

OM3256

ONKYO SERVICE MANUAL

AUTOMATIC RETURN
TURNTABLE
MODEL CP-1116A

UDN, UDC, UD

120V AC , 60Hz

UGV, UG

220V AC, SOHZ

UW

120 or 220V AC, 50/60Hz

UQA, UQB

240V AC, SOHZ

SAFETYuRELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM-
PONENTS WITH ONKYO PARTS WHOSE PARTS
NUMBERS APPEAR AS SHOWN IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY IN»
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.

LONKYO
IAIIIIIII BflMPflNfNIS

_1_

SPECIFICATIONS

Type:
Turntable Platter:

Motor:

Speeds:

Wow & Flutter:
Signal-to-Noise Ratio:
Tonearm:

Effective Arm Length:
Overhang:

Maximum Tracking Error:

Usable Cartridge Weight:
Power Supply:
Dimensions (W x H x D):

Weight:

2-speed automatic-return
turntable with cueing lever
31cm (12-1/4") Aluminum
diecast

DC servo

33-1/3rpm, 45mm

0.045% WRMS

66dB (IEC-Y, DIN-B)

Static balanced straight-type
pipe arm

210mm (8-5/16")

13mm (1/2")

+4.5 degrees, -1 degree
Min. 5.0g, Max. 9.0g

AC 120V, 60Hz

418mm x 132mm x 374mm
16-1/2" x 5-1/6"x14-6/8"
3.8kg (8.41bs.)

Optional Recommended Headshell: SH-21F

In the interest of further product improvements, specifica-
tions are subject to change without notice.
