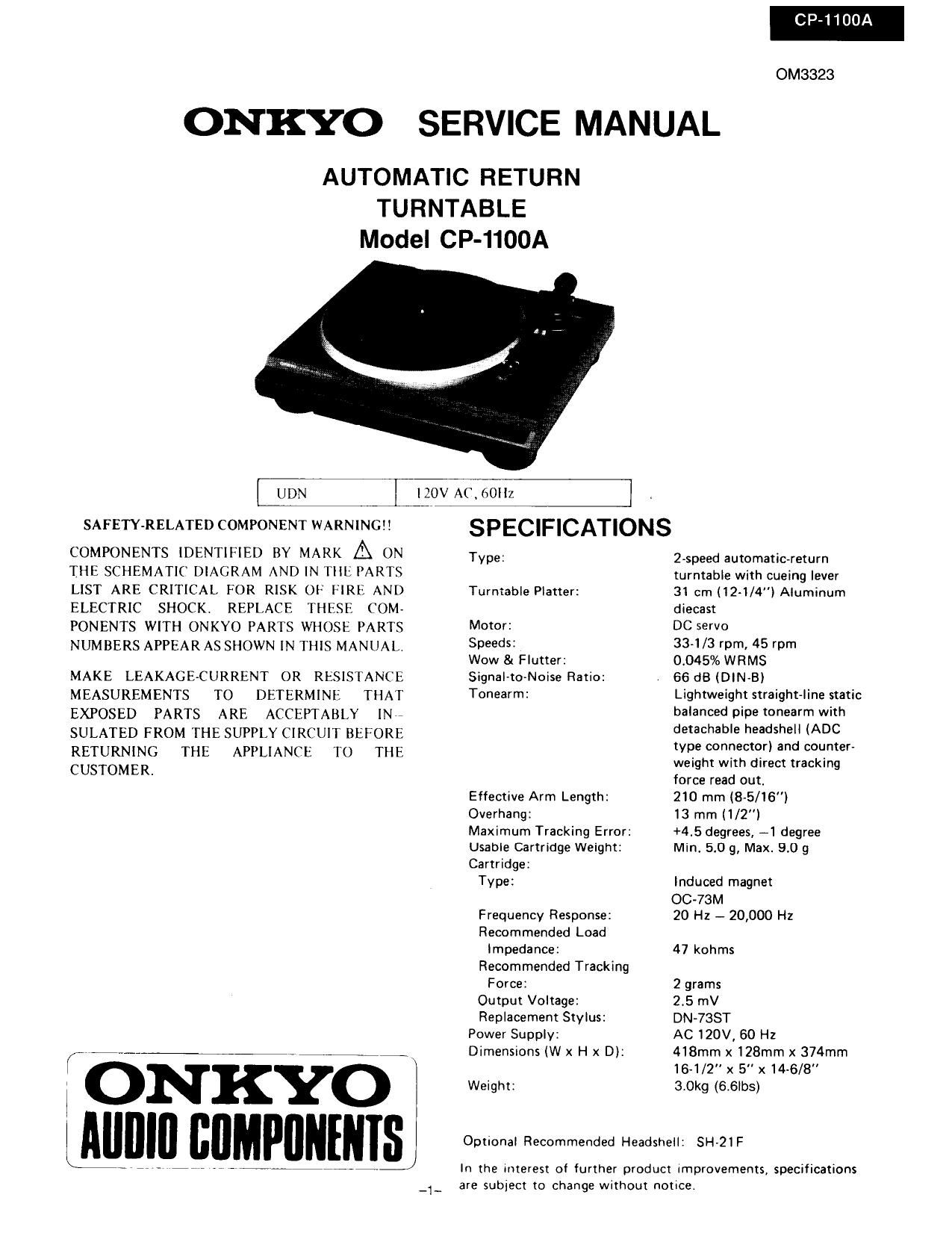

CP-1100A

OM3323

ONKYO SERVICE MANUAL

AUTOMATIC RETURN
TURNTABLE
Model CP-1100A

UDN

IZOV At 60II7.

SAFETYvRELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A ()N
THE SCHEMATIC DIAGRAM AND [N THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM-
PONENTS WITH ONKYO PARTS WHOSE PARTS
NUMBERS APPEAR AS SHOWN IN THIS MANUAL

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY IN
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.

ON KYO
{AIIIIIII BIIMPIINIIIIS

SPECIFICATIONS

Type:
Turntable Platter:

Motor:

Speeds:

Wow & Flutter:
Signal-to-Noise Ratio:
Tonearm:

Effective Arm Length:
Overhang:

Maximum Tracking Error:

Usable Cartridge Weight:
Cartridge:
Type:

Frequency Response:
Recommended Load
Impedance:
Recommended Tracking
Force:
Output Voltage:
Replacement Stylus:
Power Supply:
Dimensmns (W x H x D):

Weight:

Optional Recommended Headshell:

2»speed automatic-return
turntable with cueing lever
31 cm (12-1/4") Aluminum
diecast

DC servo

33-1/3 rpm, 45 rpm

0.045% WRMS

66 (18 (WNW

Lightweight straithine static
balanced pipe tonearm with
detachable headshell (ADC
type connector) and counter-
weight with direct tracking
force read out.

210 mm (8-5/16)

13 mm (1/2")

+4.5 degrees. A1 degree

Min, 5.0 9, Max. 9.0 9

induced magnet
OC-73M
20 Hz - 20,000 Hz

47 kohms

2 grams

2.5 mV

DN-7SST

AC 120V, 60 Hz

418mm x 128mm x 374mm
16-1/2 x 5" x 146/8
3.0kg (6,6lbs)

SHQIF

In the interest of further product Improvements, specifications
_1 are subject to change without notice.
