Onkyo CP 1046 F Owners Manual

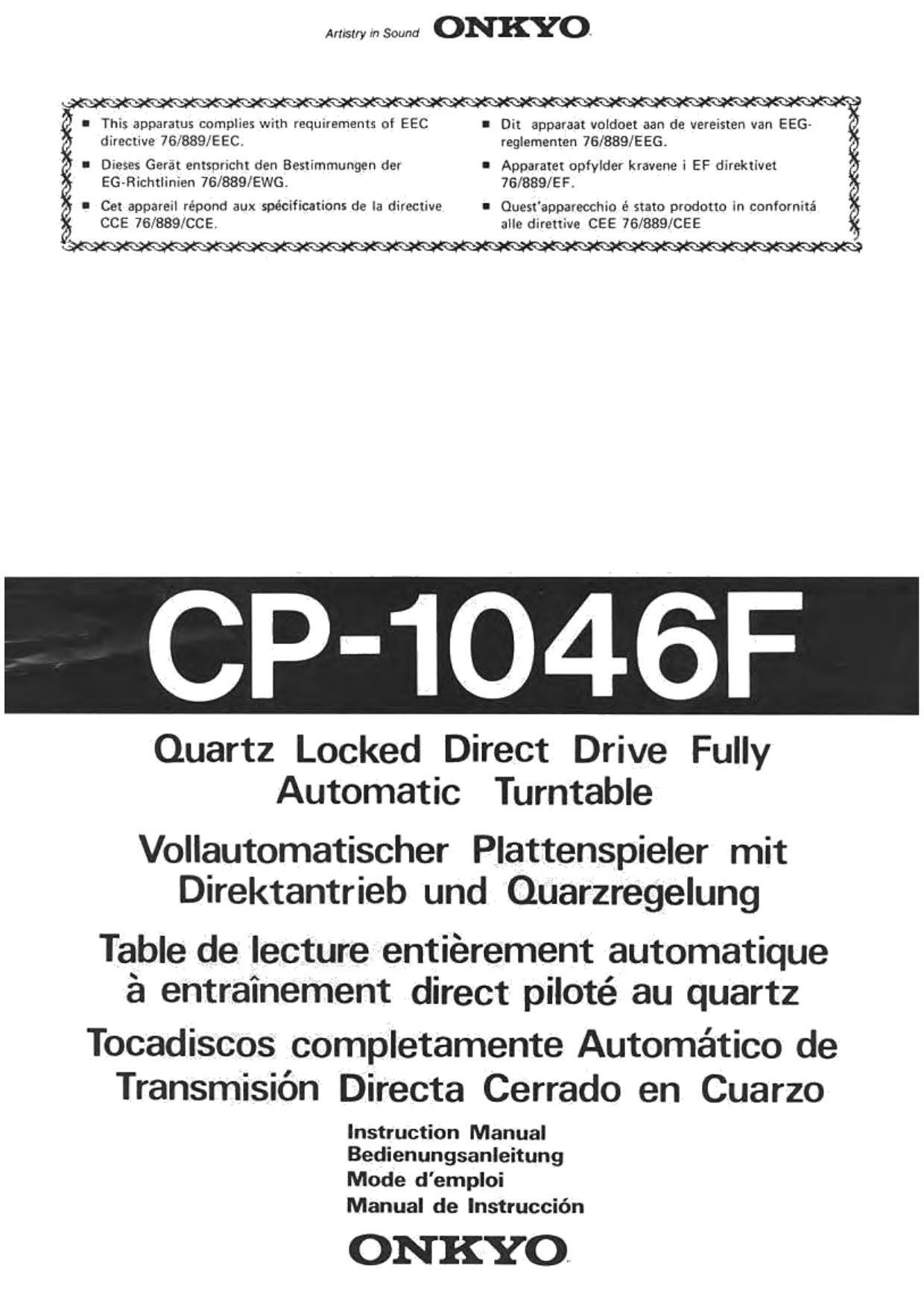

Page 1

Arlrslry m Sound ONKYO

WW
I This apparatus complies with requuemems of EEC I Dit apparaai voldoet aan de vereisten van EEG-
direclive 76/889/EEC. reglementen 76/889IEEGr
I Dieses Geral emsmichr den Besiimmungen der I Apparater apfylder kravene i EF direktivet
EG-Richtlinien 76/889/EWG. 76/889/EF.
I Ce! appareil répond aux spécifications de la directive I Ouestapparecchio é stato prodouo in conlomiui
CCE 76/889/CCE alle direnive CEE 76/889/CEE

CP-1046F

Quartz Locked Direct Drive Fully
Automatic Turntable

Vollautomatischer Plattenspieler mit
Direktantrieb und Quarzregelung

Table de lecture entierement automatique
a entrainement direct piloté au quartz

Tocadiscos completamente Automético de
Transmisién Directa Cerrado en Cuarzo

Instruction Manual
Bedienungsanleitung
Mode d'emploi
Manual de lnstruccién

ONKYO.

Page 2

Before Using This Unit

Thank you for purchasing the Ortkyo CP-1046F0uartz

Locked Direct Drive Fully Automatic Turntable. This line
instrument has been carefully designed and
constructed to provrde years at enjoyment. To be

sure you receive optimum performance horn this
unit, please read this instruction manual carefully
ltelure installing and using the CP-1046F and keep
the. manual lor luture relerence.

Locating the unit:

BECJUSO the CPAIMBF is .r prucrsrun made instrument,
it is very scnsrlive to mutations. temperature changes.
hletdilY dust, and other envtronmental factors To
assure that you enioy all the benefits at this line
turntable. observe the loltowmg points when selecting
its location'

0 To prevent howling, amid places sulttcct to Vibrations.
particularly those from the speaker; Also, be sure
the dust cover and body are not touching the audio
rack or any other object.

0 Select a sturdy. level spot; even a shghl :nclmatinn
may significantly allect tracmg accuracy

0 Avoirl places exposed to dlrect sunlight. heat producing
appliances, dust, and high humidity

0 Always Close the dust cover when the unit is not being
used

Care and Maintenance

1 Clean the stylus periodically with a tolt [truth to
prevent the accumulation of (just

2 From time to time_ the dust cover and turntable
cabinet should be WIDEd With a salt, dry cloth
Furniture wax, insecticnies, volatile compounds. and
chemrcal cloths can damage the surlace.

3, When the unit IS shipped again, remove the counter-
wetght and turntable platter and lix the tone-arm to
the rest with the hook and adheswe tape,

Power Supply Voltages

Before connecting the unit to an AC outlet. check
whether it is set for the local AC voltage. The turntable
may be set to operate at either 110, 120, 220 or 240 V.
The voltage selector is under the turntable platter.

It a voltage change is necessary, SWIlch to the proper
voltage. Note that the cP-tmeF operates at both 50 and
60 Hz power frequencies.

Note: Some units have been designed to operate only

on AC 240 V 50 H2 or AC 220V 50 Hz or 120V
50/60 Hz and are consequently not equipped
with a voltage selector.

Turntable Parts and Controls

Shown below IS the turntable lielmu assembly BE:
sure to assemble and atllust the turntable antl toriearm
lotlowmq the OrtiRt described in this manual 00 not
plug in the power cord until all the steps have linen
completed dhl rlouble checked

turntable mat
center spindle
turntable platter
power corrl

:5 remote control iack

5, output cords

HI dust cover holders
[3' counterweight

lei scale ring

lLfl. antiskatinq knob

H mm rest hook

it, arm rest

r'Cl' tonearnt

ill headsnell connection screw
'15 lieadshell (cartudge)

its? playlroject button
[:5 cue button l L"! l
lit: search button

it? repeat button

quartz lock indicator
record size selector

22. speed selectm
23 power button

Installing the Turntable Platter

Fit the turntable platter over the centEr spintlle. holding
lrrmly with both hands to be sure II Is level
l

.9?

E ,

lZl
