Onkyo CP 1036 A Service Manual
This is the 2 pages manual for Onkyo CP 1036 A Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo CP 1036 A Service Manual (Ocr-read)
Page 1

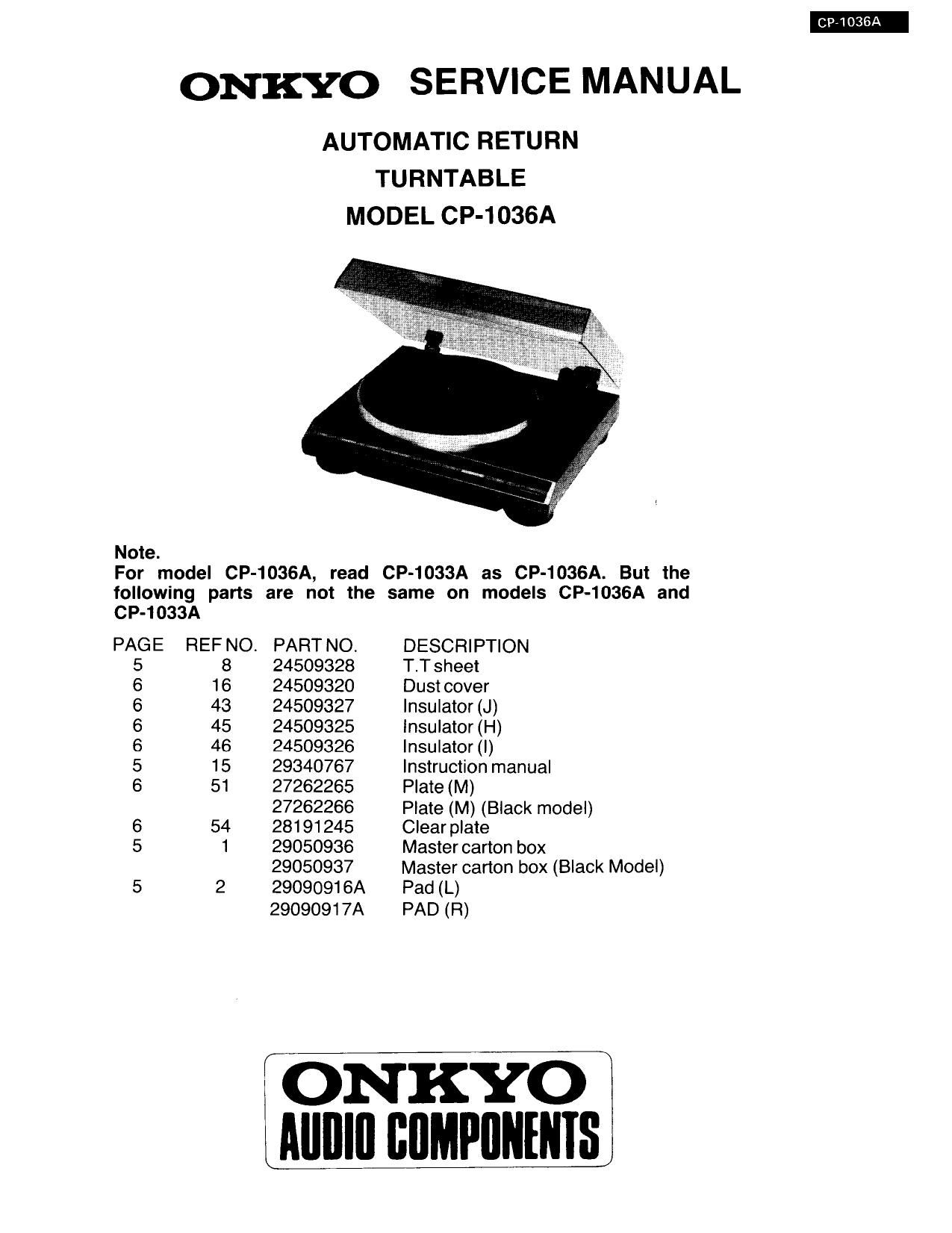

ONKYO SERVICE MANUAL
AUTOMATIC RETURN
TURNTABLE
MODEL CP-1036A
Note.
For model CP-1036A, read CP-1033A as CP-1036A. But the
following parts are not the same on models CP-1036A and
CP-1033A
PAGE REFNO. PART NO.
5 8 24509328
6 1 6 24509320
6 43 24509327
6 45 24509325
6 46 24509326
5 1 5 29340767
6 51 27262265
27262266
6 54 281 91 245
5 1 29050936
29050937
5 2 2909091 6A
2909091 7A
DESCRIPTION
T.T sheet
Dust cover
Insulator (J)
Insulator (H)
Insulator (l)
Instruction manual
Plate (M)
Plate (M) (Black model)
Clear plate
Master carton box
Master carton box (Black Model)
Pad (L)
PAD (R)
(ONKYO
llllllll cflMPnlltllIs)
CPvl 036A
Page 2
16
17
PART NO.
29050937
29050936
29090916A
29090917A
29090918A
29095366
29095286
24502159
24509328
29100046
24509320
24501462
28180080
DESCRIPTION
Master carton box (Black Model)
Master carton box (Silver Model)
Pad (L)
Pad (R)
Sheet
Sheet
Sheet
Turntable platter
T. '1. Sheet
370 x 470, Poly-vinyl bag
Dust cover
Sheet
Counter weight
Hinge (Black Model)
P. P. tape
Accessaty bag complete
29340767
292049A
24509197
29358004
29365006-6
29100005
282301
29355101
Instruction manual
45 rpm adaptor
Overhang gauge
Service station list
Warranty card
220 x 330 Poly-vinyl bag
Sealing hook
Caution sheet
CP71036A
