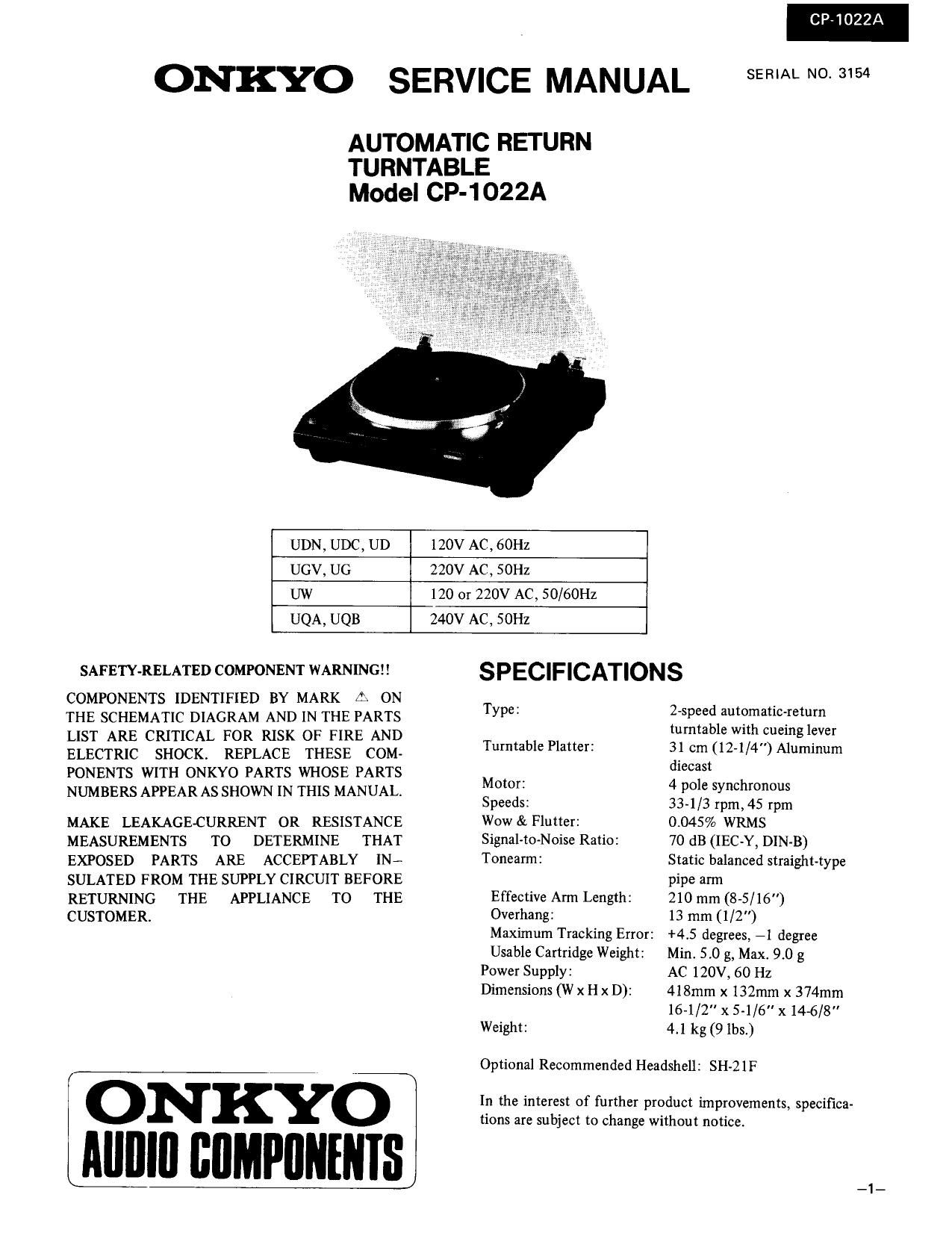

ONKYO SERVICE MANUAL SERIAL NO. 3154

AUTOMATIC RETURN
TURNTABLE
Model CP-1022A

UDN, UDC, UD 120V AC, 60Hz
UGV, UG 220V AC, SOHZ
UW 120 or 220V AC, 50/60Hz
UQA, UQB 240V AC, 50Hz
SAFETY-RELATED COMPONENT WARNING SPECIFICATION S
COMPONENTS IDENTIFIED BY MARK A ON _ .
THE SCHEMATIC DIAGRAM AND IN THE PARTS TYPE' fufiizg1:fiilz:::l:t:3er
LIST ARE CRITICAL FOR RISK OF FIRE AND Turntable Platter: 31 cm (12-1/4") AluEninum
ELECTRIC SHOCK. REPLACE THESE COM- diecast
PONENTS WITH ONKYO PARTS WHOSE PARTS
Motor: 4 pole synchronous
U L.
NUMBERS APPEAR AS SHOWN IN THIS MAN A Speeds: 33-1/3 rpm, 45 rpm
MAKE LEAKAGE-CURRENT 0R RESISTANCE WOW 8L Flutter: 0.045% WRMS
MEASUREMENTS TO DETERMINE THAT Signal-to-Noise Ratio: 70 dB (IEC-Y, DIN-B)
EXPOSED PARTS ARE ACCEPTABLY IN- Tonearm: Static balanced straight-type
SULATED FROM THE SUPPLY CIRCUIT BEFORE pipe arm
RETURNING THE APPLIANCE TO THE Effective Arm Length: 210 mm (8»5/16)
CUSTOMER. Overhang: 13 mm (1/2")

Maximum Tracking Error: +4.5 degrees, -1 degree
Usable Cartridge Weight: Min. 5.0 g, Max. 9.0 g
Power Supply: AC 120V, 60 Hz
Dimensions (W xHx D): 418mm x 132mm x 374mm
16-1/2" x 5-1/6" x14-6/8"
Weight: 4.1 kg (9 lbs.)

Optional Recommended Headshell: SH-ZIF
ONKY In the interest of further product improvements, specifica-
tions are subject to change without notice.
