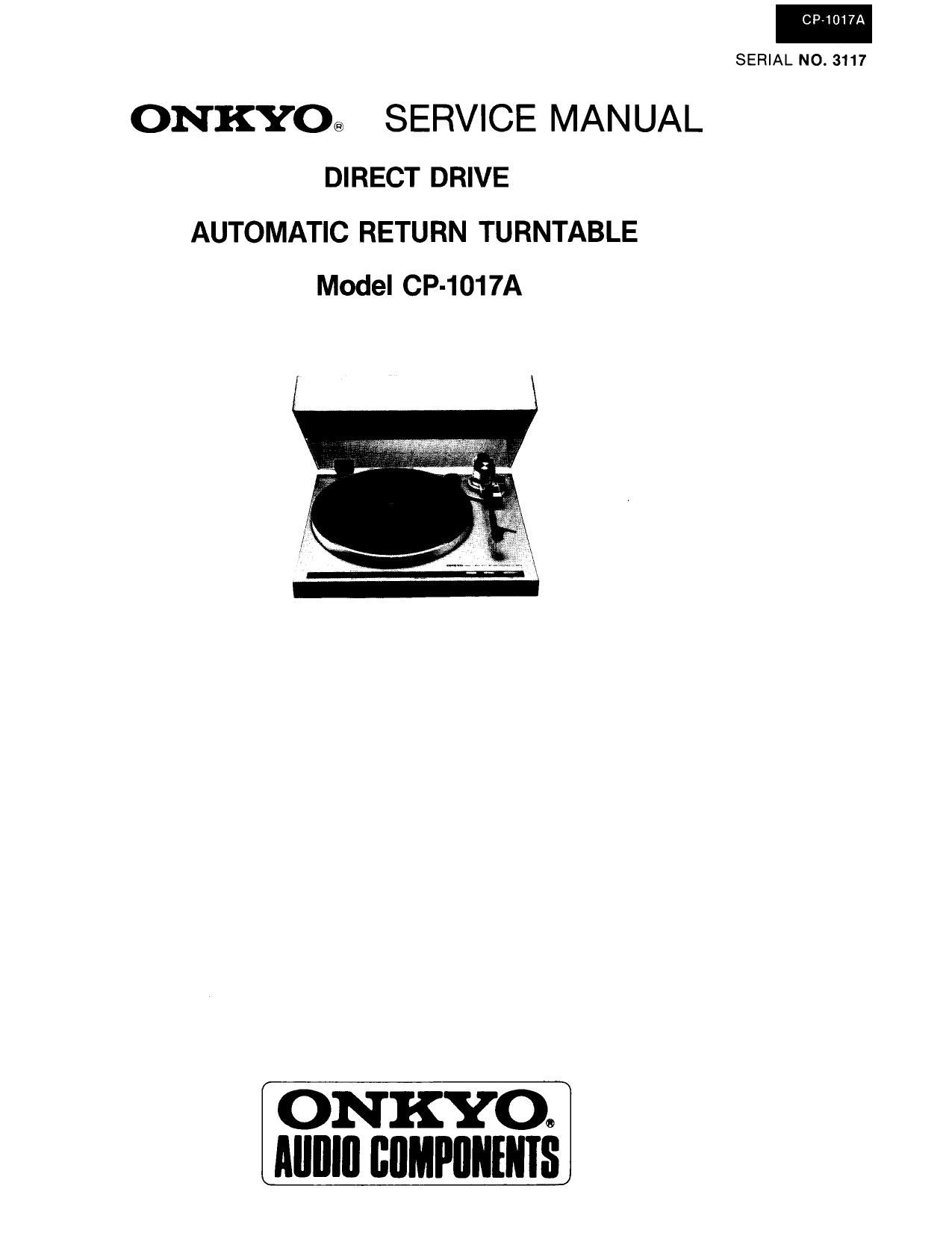

Onkyo CP 1017 A Service Manual
This is the 8 pages manual for Onkyo CP 1017 A Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo CP 1017 A Service Manual (Ocr-read)
Page 2
CID-1017A
ADJUSTMENT PROCEDURES
1.
Auto-retum position adjustment
Auto-return position adjustment is made using the adjust-
ment screw in Fig. l.
Tonearm height adjustment
Remove the T.'I'. mat. Press the cueing button of right side
(1).
Manual operation
Height adjustment is made using the adjustment screw in
fig. 2. Adjust the screw for 12-15mm height between the
stylus tip and the turntable platter. Turning the screw
counterclockwise lowers the tonearm clockwise raises it.
Auto-return and manual operation
Height adjustment of auto-return and manual is made us-
ing the adjustment screw in fig. 1. Adjust the screw for
lZiISmm height between the stylus tip and turntable plat-
ter. Turning the screw clockwise lowers the tonearm
counterclockwise raises it.
Note:
The tonearm height adjustment is performed simultaneously
for auto-return and manual tonearm raising (by cue). Auto-
return and manual cue cannot be adjusted separately.)
3.
Microswitch gap adjustment
Adjust the microswitch gap by turning eccentric pin in fig.
2.
Adjust the eccentric pin for 0.3mm gap.
RETURN
POSITION
ADJUST.
SCREW
TONEARM
HEIGHT
ADJUST.
SCREW
Fig. 1
MICHOSWITCH
TON EARM
BASE
MICROSWITCH POSITION
ADJUST. ECCENTRIC PIN
TONEARM
HEIGHT
ADJUSTMENT
Fig. 2
