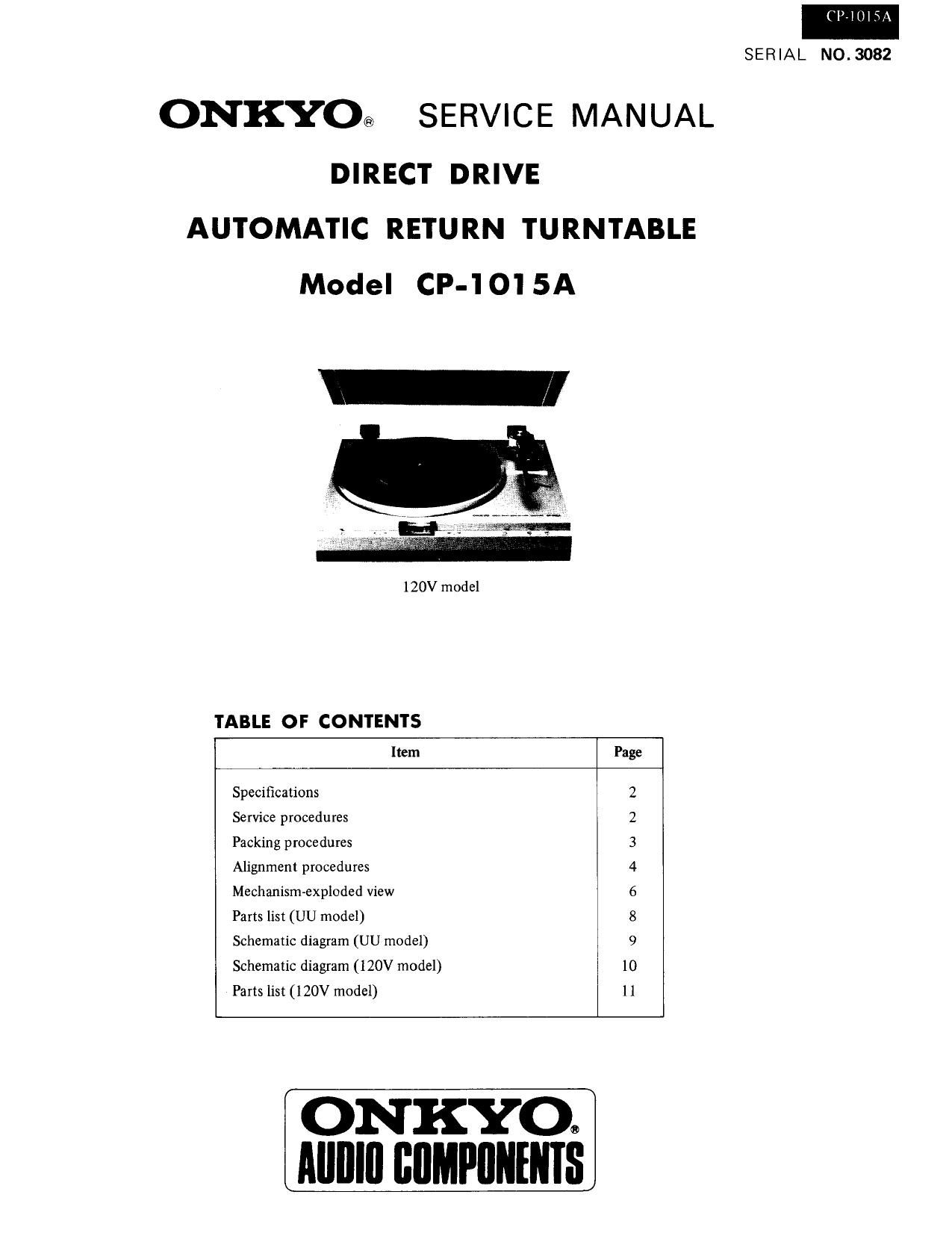

ONKYO® SERVICE MANUAL
DIRECT DRIVE
AUTOMATIC RETURN TURNTABLE
Model CP-IO'I 5A

120V model

TABLE OF CONTENTS

Item Page

Specifications

Service procedures

Packing procedures

Alignment procedures
Mechanism-exploded View
Parts list (UU model)
Schematic diagram (UU model)
Schematic diagram (120V model) 10
Parts list (120V model) 11

ommawww

ONKYOO
lllllllll BflMPllllflllS

(l~l OI 5A

SERIAL N0. 3082

Page 2

'l-1015A

SPECIFICATIONS

120V model

Type : 2-speed automatic-return
turntable

Turntable Platter : 31 cm (12-1/4") aluminum
diecast

Motor : Brushless electronic servo direct
drive DC motor

Speeds 1 33-1/3 rpm, 45 rpm

Speed Controls : Adjustable range t3%

Wow & Flutter : 0.035% (WRMS)

Signal-to-Noise Ratio 1 70 dB (DIN B)

Lightweight straight-line static
balanced pipe tonearm with
detachable headshell (ADC type
connector) and counterweight
with direct tracking force read
out.

Suitable Cartridge Weight: 5 - 9 grams.

Adjustable Range : 3 grams
Maximum Length : 276 mm
Effective Arm Length : 220 mm
Overhang : 14 mm

Maximum Tracking Error: + 3 degrees, 71.5 degrees
(offset angle 21 degrees)

Power Supply 2 AC 120V, 50/60 Hz
Power Consumption : 6 Watts
Dimensions : 418(W) x 371(D)x 140(H) mm
16-1/2 x14-1/2 x 5-1/2
Weight: 5.5 kg(12.1 lbs.)
Cabinet Composition :
Turntable Board Painted Plastics
Bottom Board Hard Board
Dust Cover Polystyrene

In the interest of further product improvements, specifications
are subject to change without notice.

SERVICE PROCEDURES

1. Attaching the cartridge

1) Mount the cartridge into position in the headshell.

2) Adjust the distance from the stylus tip to the neck of
the headshell to the value designated in the diagram with
the overhang gauge.

3) Connect the following headshell lead wires to the
corresponding cartridge pins.

White lead left channel signal
Blue lead left channel ground
Red lead right channel signal
Green lead right channel ground

4) Then lock the headshell onto the tonearm. The above
adjustments will ensure that the correct overhang is also
adjusted.

NOTE: In the Universal model the cartridge has already
been attached to the tonearm.

Universal model
Type 2
Tumtable Platter :

Motor :

Speeds :

Speed Controls :

Wow & Flutter :
Signal-to Noise Ratio :
Tonearm :

Suitable Cartridge

Weight :

Adjustable Range :
Maximum length :
Effective Arm Length
Overhang :

Maximum Tracking

Error :

Cartridge
Type :

Frequency Response :

Recommended Load

Impedance :

Recommended

Tracking Force :

Compliance :

Output Voltage :
Stylus Tip :
Replacement Stylus :
Power Supply :
Power Consumption :
Dimensions:

Weight :

2-speed automatic-return
turntable

31 cm (12-1/4) aluminum
diecast

Brushless electronic servo direct
drive DC motor

334/3 rpm,45 rpm

Adjustable range 16%

0.035% (WRMS)

70 dB (DIN B)

Lightweight straight-line static
balanced pipe tonearm with
detachable headshell (ADC type
connector) and counterweight
with direct tracking force read
out

5 - 9 grams.
3 grams
276 mm

: 220 mm

14 mm

+3 degrees, 7 1.5 degress
(offset angle 21 degrees)

Tapered carbon fiber cantilever
V magnet type (0C - 52V)
20 Hz ~ 20,000 Hz

47 kohms

2 grams

8 x 10 4 cm/dyne

315 mV

0.6 mil diamond

DN-SZST

AC110-120, 220-240V, 50/601'12
6 Watts

418(W) x 371(D) x 140(H) mm
16-1/2 x 14-1/2" x 5-1/2

5.5 kg (12.1 lbs.)

Temporarily tighten this screw

¢-~30 mm (1 3/76")
