Onkyo CP 1011 F Service Manual

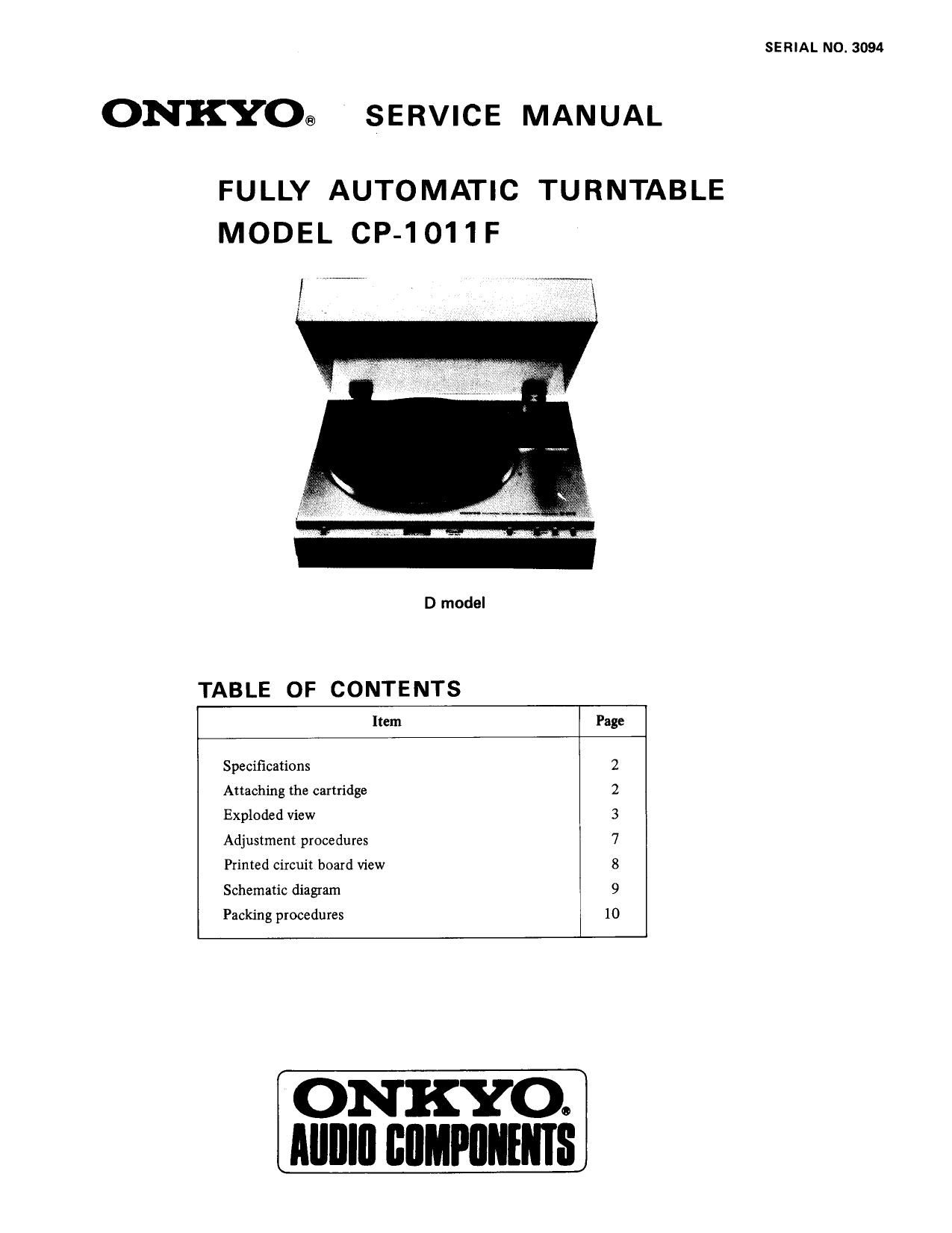

Page 1

ONKYO® SERVICE MANUAL

FULLY AUTOMATIC TURNTABLE
MODEL CP-1011F

D model

TABLE OF CONTENTS

Item Page
Specifications 2
Attaching the cartridge 2
Exploded view 3
Adjustment procedures 7
Printed circuit board View 8
Schematic diagram 9
Packing procedures 10

ONKYO.
Alllllll L'flMPIINflflS

SERIAL NO. 3094

Page 2

(lrltllll

SPECIFICATIONS

Type: 2-speed fully automatic
turntable

Turntable Platter: 30 cm (12") aluminum
diecast

Motor: Electronic servo DC motor, belt
drive

Speeds: 334/3 rpm, 45 rpm

Speed Controls: Adjustable range 13%

Wow & Flutter: 0.05% (WRMS)

Signal-to-Noise Ratio: 67 dB (DIN B)

Tonearm: Lightweight straight-line static
balanced pipe tonearrn with
detachable headshell (ADC type
connector) and counterweight
with direct tracking force read out.

Suitable Cartiridge

Weight: 5 - 9 grams

Adjustable Range: 3 grams

Maximum Length: 270 mm (10-5/8")

Effective Arm Length: 213 mm (8-3/8)

Overhang: 14 mm (9/16")

Maximum Tracking
Error:

+3 degrees, -1.5 degrees
(offset angle 21 degrees)

ATTACHING THE CARTRIDGE

Attach the cartridge as shown below, connecting each
of the color coded lead wires to the proper terminal.
If a mistake is made, no sound will be heard or stereo
reproduction will be lost. Also, to prevent damage to
the stylus during installation operations, leave its cover
on or remove the stylus completely.

A. Cartridge ,
B. Colors of the headshell lead wires and cartridge

terminals:

White: left channel signal (L)

Blue: lett channel ground (LE or LGI
Red: right channel signal (R)

Green: right channel ground (RE or RGI

Cartridge (G/W model)

Type: Moving magnet type (0C - 51M)
Frequency Response: 20 Hz ~ 20,000 Hz
Recommended Load

Impedance: 47 kohms
Recommended Tracking
Force: 2 grams
Compliance: 8 x 10'6 cm/dyne
Output Voltage: 3.5 mV
Stylus Tip: 0.5 mil diamond
Replacement Stylus: DN-S 1 ST
Power Supply: AC1 10-120, 220-240V, 50/60Hz

(W model) ACl20V, 60Hz (D model)
AC 220V, 50Hz (G model)

Power Consumption: 3 Watts

Dimensions: 418(W) x 371(D) x 1400-!) mm
(16-1/2" x 14-1/2" x 5-1/2")
Weight: 4.5kg (9.9 lbs.)

Optional Recommended Headshell 811-2115

In the interest of further product improvements, specifications
are subject to change without notice.

Adjust so the distance between the stylus tip and the
base of the headshell is 30 mm (1 3/16) and tighten
the screws. This assures the effective length and over-
hang of the tonearm are correct.

(1 3/16")

Use the included overhang gauge as shown below.
placing the cartridge in the gauge and setting the loca-
tion of the stylus tip as indicated.

Adjust so the stylus tip is here.

cartridge
