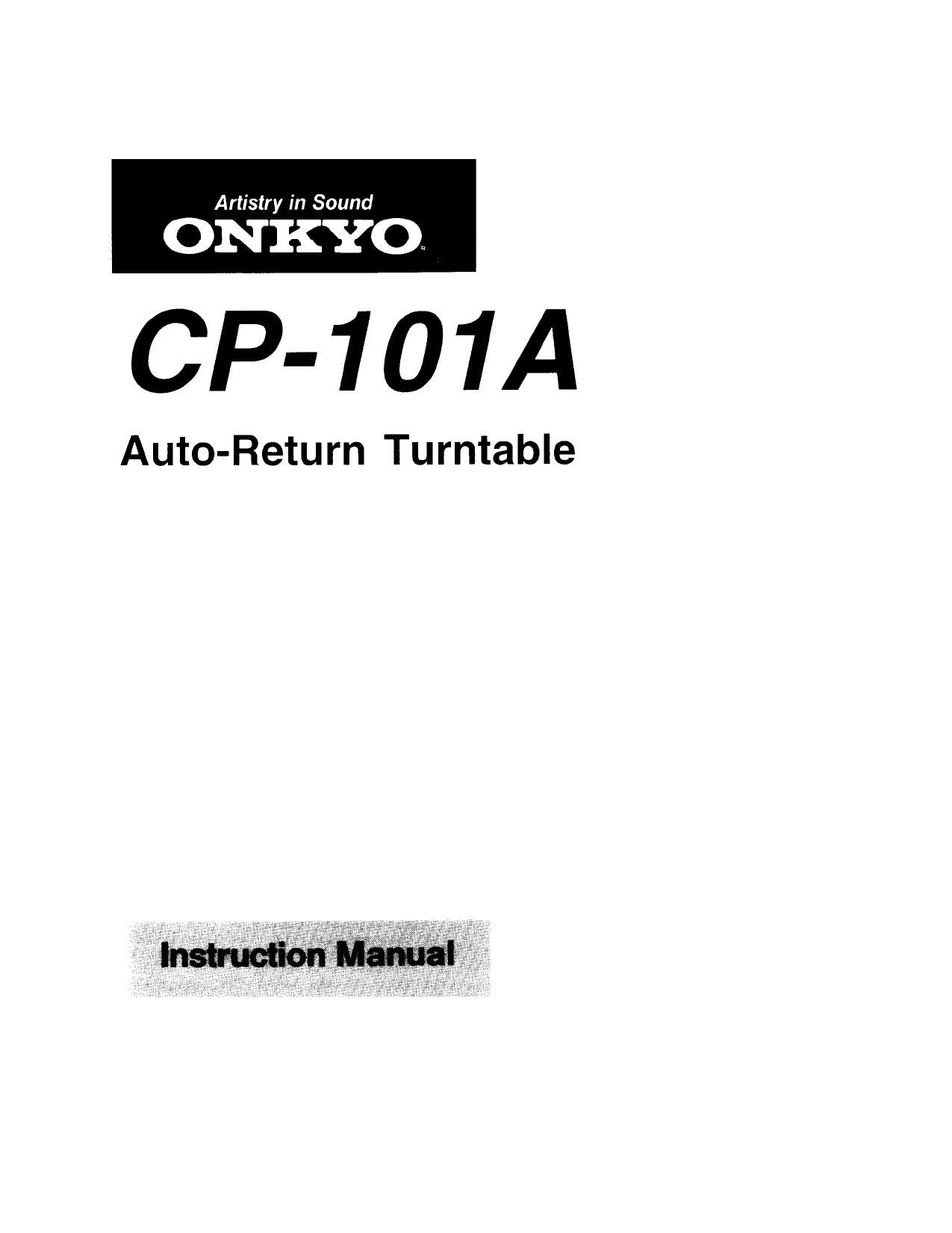

Onkyo CP 101 A Owners Manual

Page 2

0 Congratulations on your purchase of the ONKYO CP-101A Turntable. 0 Please
read this manual thoroughly before making connections and turning your new CP-
701A on. 0 Follow these instructions to obtain optimum performance and maximum
listening enjoyment from your new CP-107A.o Please retain this manual for future

reference.

Precautions
-_

WARNING"
"TO REDUCE THE RISK or FIRE OR ELECTR 1c SHOCK, DO
NOT EXPOSE THIS APPLIANCE To RAIN 0R MOISTURE."

"CAUTION"

"TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSON»
NEL."

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

"CAUTION"

"TO PREVENT ELECTRIC SHOCK, Do NOT USE THIS
(POLARIZED) PLUG WITH AN EXTENSION CORD, RECEP-
TACLE OR OTHER OUTLET UNLEss THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE."

Warranty card

The serial number is written on the rear panel of this unit.
Copy the serial number and model number onto your war-
ranty card and keep it in a safe place.

Important safeguards

1. Read Instructions - All the safety and operating instruce
tions should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instruc-
tions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in
the operating Instructions should be adhered to.

4. Follow Instructions - All operating and user instruction
should he followed.

5. Water and Moisture - The appliance should not be
used near water - for example, near a bathtub, wash-
bowl, kitchen sink, laundry tub, in a wet basement, or
near a swimming pool, and the like.

6. Carts and Stands - The appliance should be used only
with a cart or stand that is recommended by the
manufacturer.

6A An appliance and cart combination should be moved
with care. Quick stops, ex-
cessive force, and uneven
surfaces may cause the ap-
pliance and cart combina
tion to overturn. .

PORTABLE CART WARNING

53I23A r
v

7. Wall or Ceiling Mounting - The appliance should be
mounted to a wall or ceiling only as recommended by
the manufacturer,

8. Ventilation - The appliance should be situated so that
its location or position does not interfere with its proper
ventilation. For example, the appliance should not be
situated on a bed, sofa, rug, or similar surface that may
block the ventilation openings; or, placed in a built-in in-
stallation, such as a bookcase or cabinet that may im-
pede the flow of air through the ventilation openings.

9. Heat - The appliance should be situated away from
heat sources such as radiators, heat registers, stoves, or
other appliances (including amplifiers) that produce heat.

0 The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to
& alert the user to the presence of uninsulated
"dangerous voltage" within the products

enclosure that may be of sufficient magnitude
to constitute A risk of electric shock to persons.

0 The exclamation point within an equilateral tri»
angle is intended to alert the user to the
presence of important operating and main-

tenance (servicing) instructions in the literature
accompanying the appliance.

"ATTENTION"

POUR PREVENIR LES CHOCS ELECTRIOUES NE PAS
UTILISER CETTE FICHE POLARISEE AVEC UN PROLON~
GATEUR, UNE PRISE DE COURANT OU UNE AUTRE SORTIE
DE COURANT, SAUF SI LES LAMES PEUVENT ETRE IN»
SEREES A FOND SANS EN LAISSER AUCUNE PARTIE A
DECOUVERT."

Cabinet Composition

Turntable Board: Plastic
Bottom Board: Plastic
Dust Cover: Polystyrene

10, Power Sources - The appliance should be connected to
a power supply only of the type described in the operat-
ing instructions or as marked on the appliance.

11. Polarization - If the appliance is provided a polarized
plug having on blade wider than the other, please read
the following information; The polarization of the plug
is a safety feature. The polarized plug will only fit the
outlet one way. If the plug does not fit fully into the out-
let, try reversing it. If there is still trouble, the user
should seek the services of a qualified electrician. Under
no circumstances should the user attempt to defeat the
polarization of the plug.

12. Power-Cord Protection - Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.

13. cleaning - The appliance should be cleaned only as
recommended by the manufacturer,

14. Nonuse Periods - The power cord of the appliance
should be unplugged from the outlet when left unused
for a long period of time.

15. Object and Liquid Entry -- Care should be taken so that
objects do not fall and liquids are not spilled into the
enclosure through openings.

16. Damage Requiring Service - The appliance should be
serviced by qualified service personnel when:

A. The power-supply cord or the plug has been
damaged; or

B. Objects have fallen, or liquid has been spilled into
the appliance; or

C. The appliance has been exposed to rain; or

D, The appliance does not appear to operate normally
or exhibits a marked change in performance; or

E. The appliance has been dropped or the enclosure
damaged.

17. Servicing - The user should not attempt to service the
appliance beyond that described in the operating instruc-
tions. All other servicing should be referred to qualified
service personnel.
